Samsung 990 PRO MZ-V9P4T0B
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

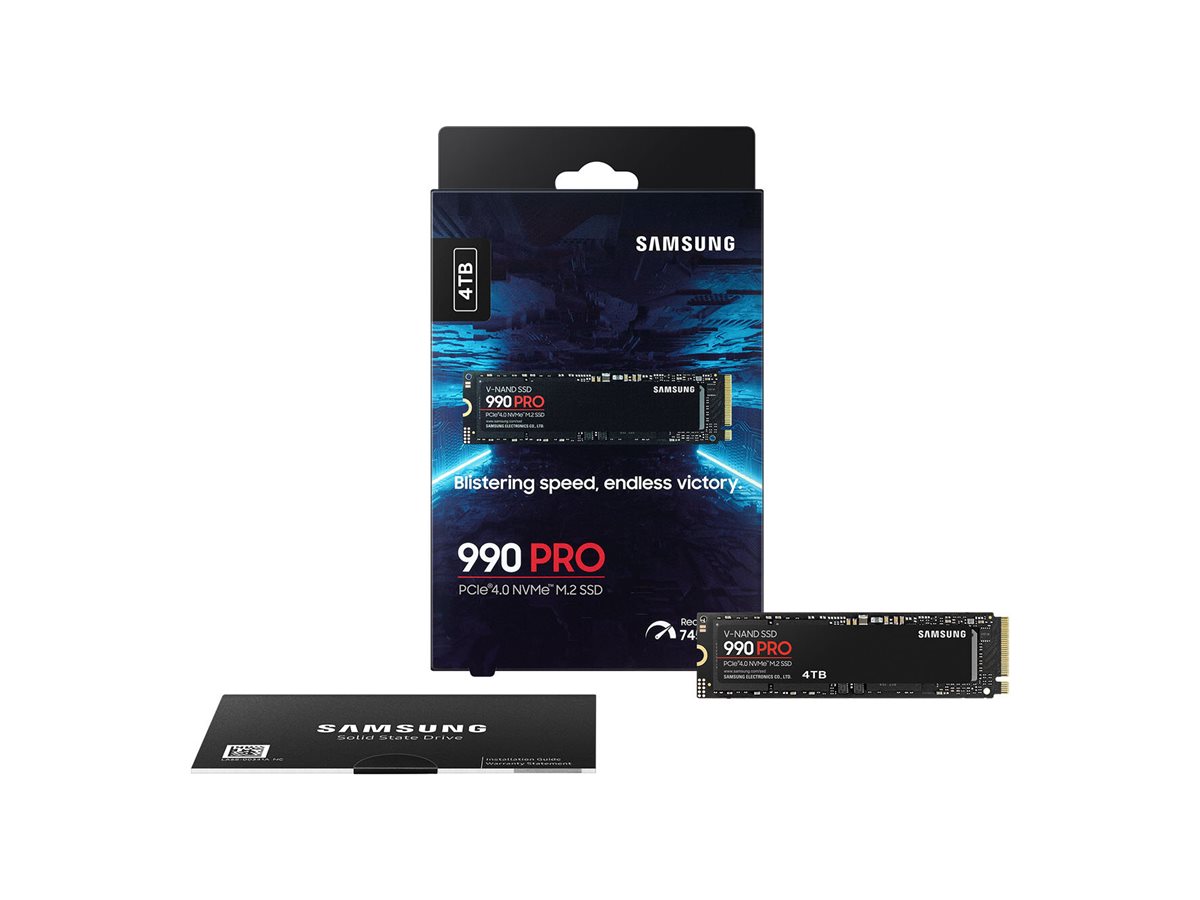

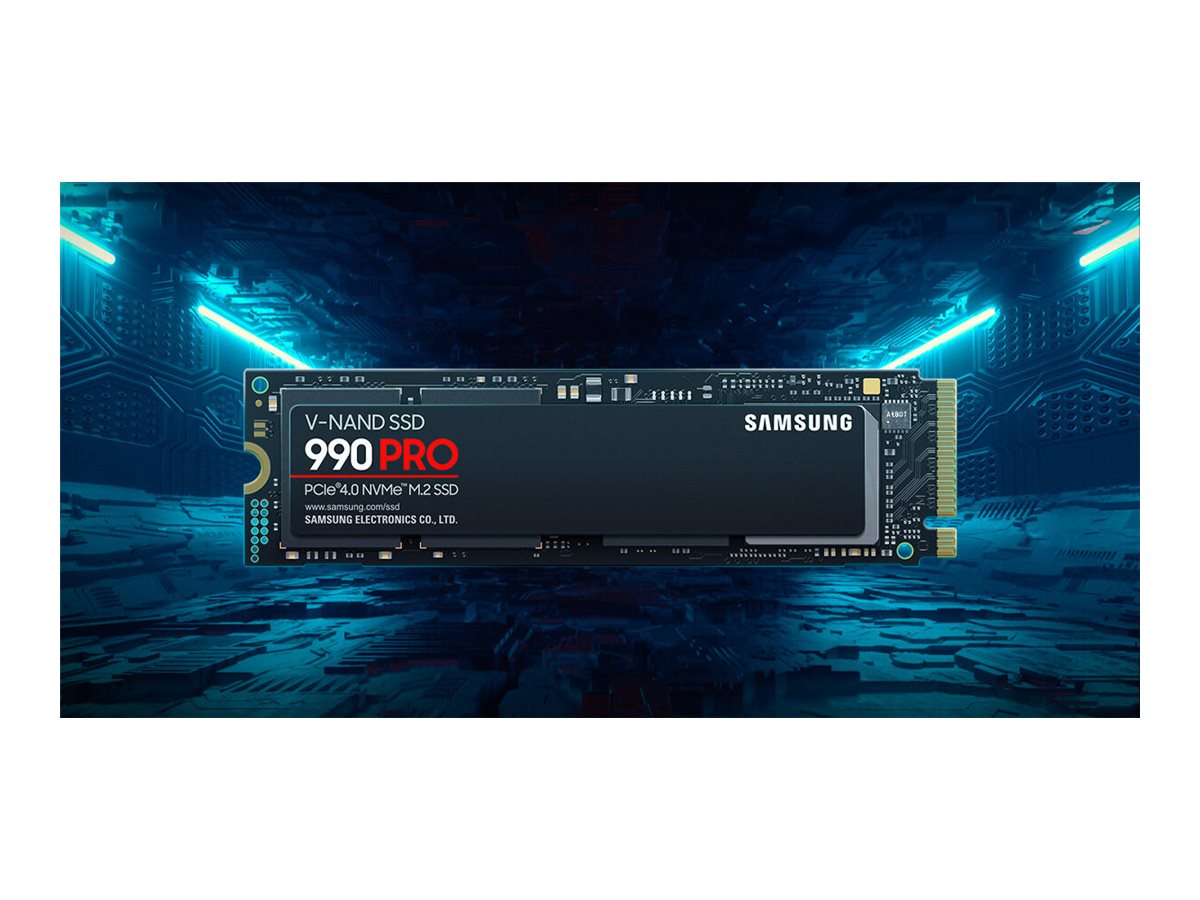

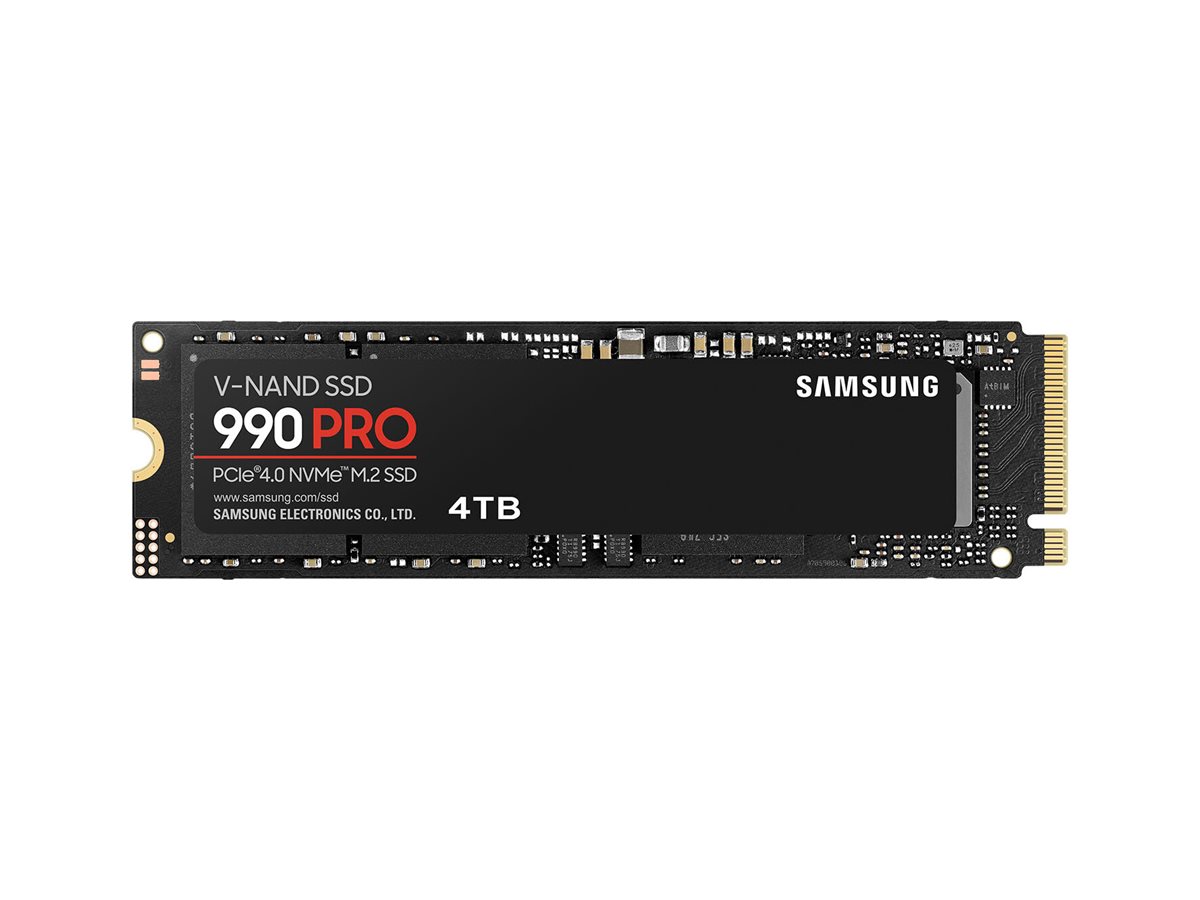

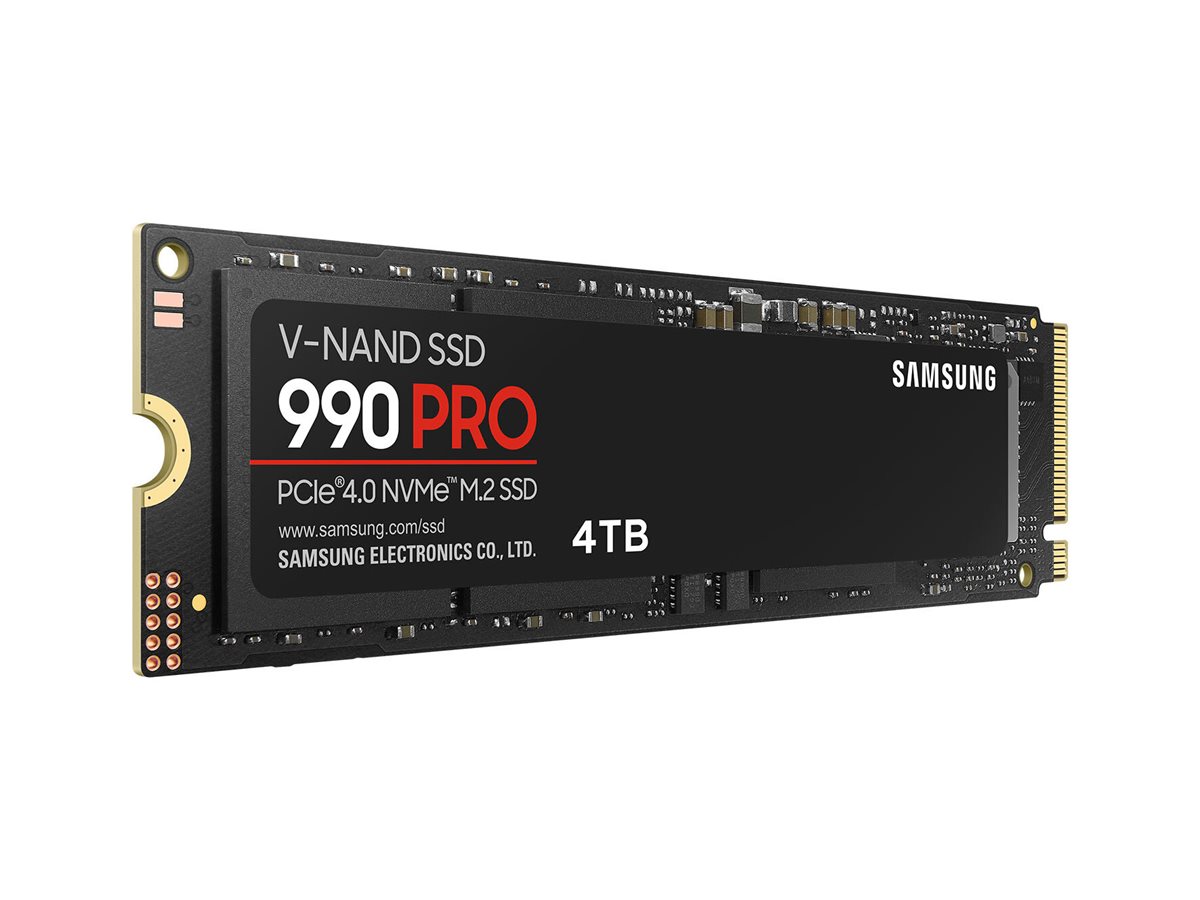

Samsung 990 PRO MZ-V9P4T0B
- SSD
- encrypted
- 4 TB
- internal
- M.2 2280
- PCIe 4.0 x4 (NVMe)
- 256-bit AES
- TCG Opal Encryption
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MZ-V9P4T0B/AM |
| SHI Part #: | 46736923 |
| Category: | Solid state drive SSD |
| UNSPSC: | 43201830 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Solid state drive SSD |
| Description | Samsung 990 PRO MZ-V9P4T0B - SSD - encrypted - 4 TB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe) - 256-bit AES - TCG Opal Encryption |
| Manufacturer | Samsung |
| MSRP | $464.99 |
| UNSPSC | 43201830 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 2.31 mm |
| Dimensions & Weight / Weight | 9.07 g |
| Dimensions & Weight / Width | 22.1 mm |
| Hard Drive / Capacity | 4 TB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 1500 g |
| Shock Tolerance (operating) | 0.5 ms half-sine |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | PCI Express 4.0 x4 (NVMe) |
| General | |
| Capacity | 4 TB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | TRIM support, Garbage Collection technology, Device Sleep support, Samsung V-NAND TLC Technology, 4 GB Low Power DDR4 SDRAM Cache, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Hardware Encryption | Yes |
| Height | 2.31 mm |
| Interface | PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Weight | 9.07 g |
| Width | 22.1 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years / 2400 TBW |
| Miscellaneous | |
| Compliant Standards | IEEE 1667 |
| Performance | |
| Internal Data Rate | 7450 MBps (read) / 6900 MBps (write) |
| Maximum 4KB Random Read | 1600000 IOPS |
| Maximum 4KB Random Write | 1550000 IOPS |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
| Software & System Requirements | |
| Software Included | Samsung Magician Software |
