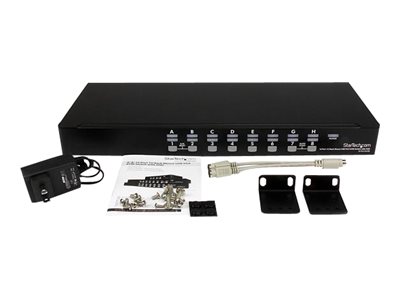

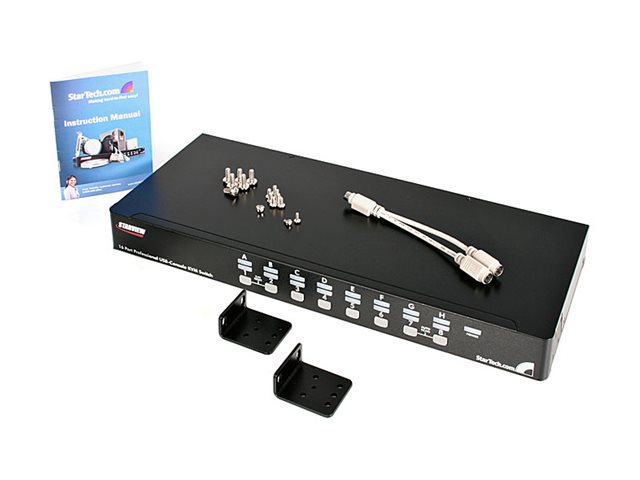

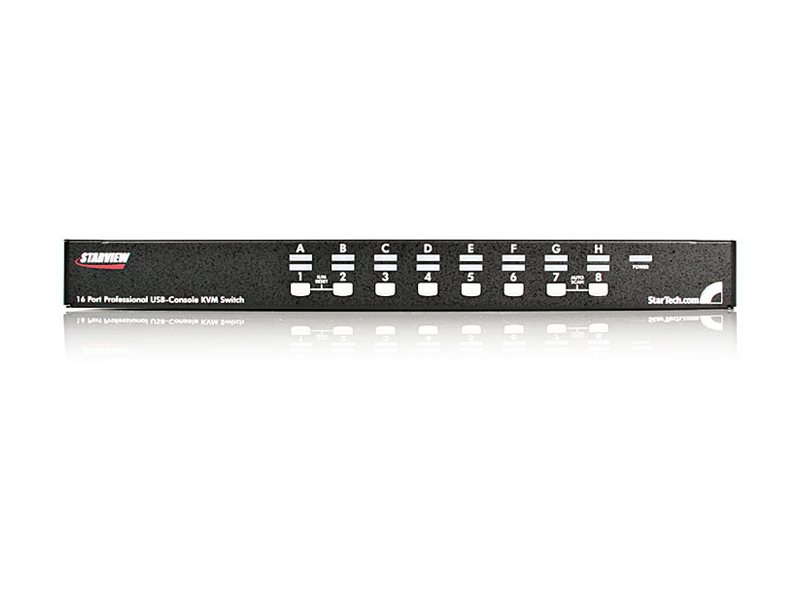

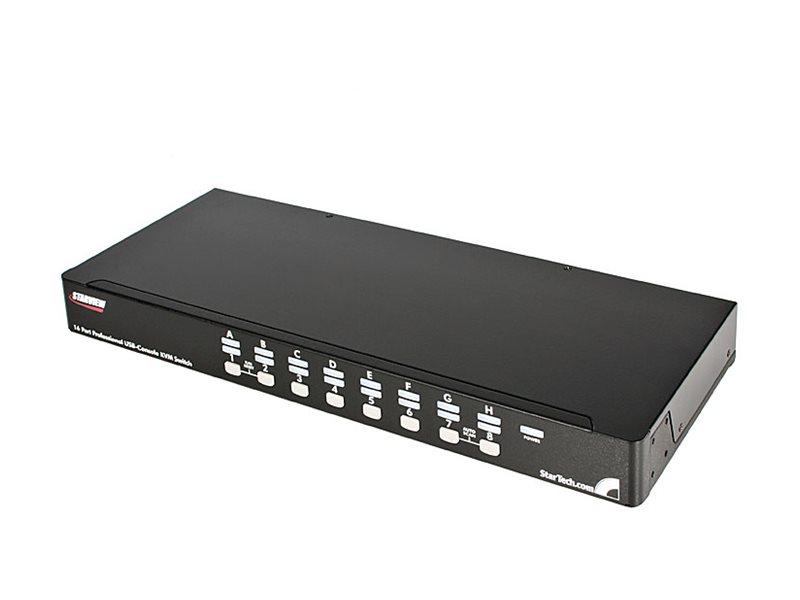

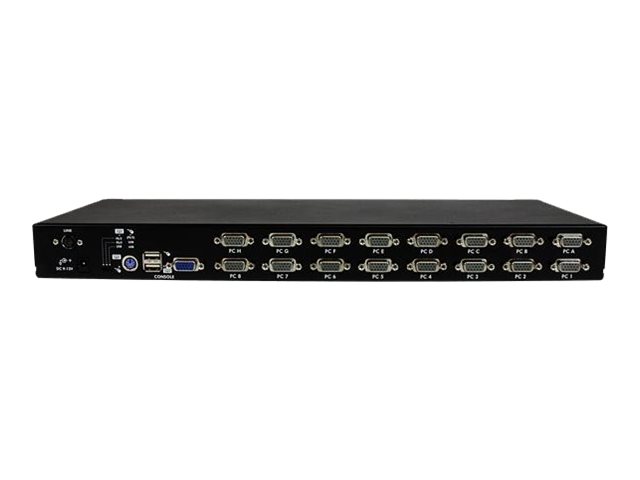

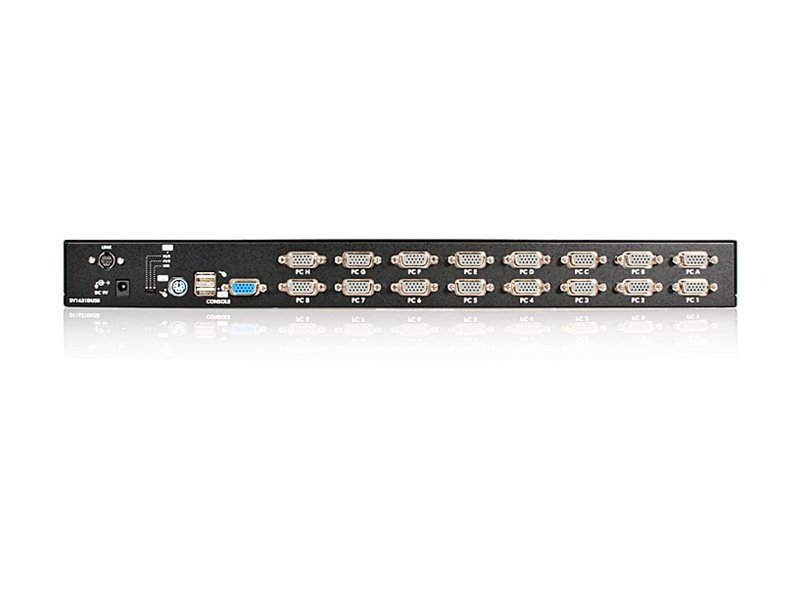

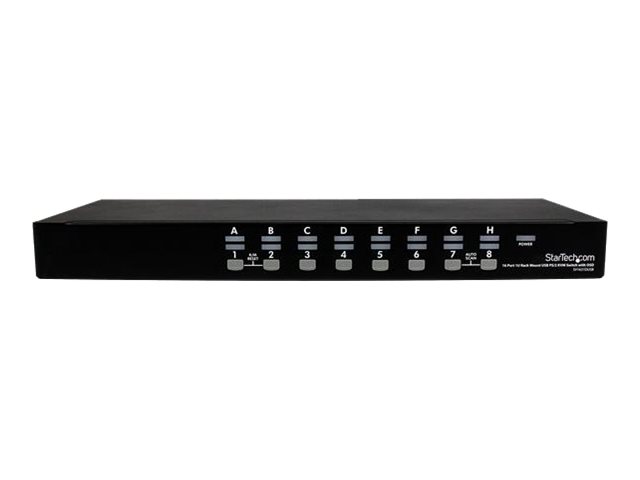

StarTech.com 16-Port KVM Switch with OSD- 1U Rackmount KVM Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
StarTech.com 16-Port KVM Switch with OSD- 1U Rackmount KVM Switch
- USB and PS/2
- 1920 x 1440 @60hz (SV1631DUSB)
- KVM switch
- 16 x KVM port(s)
- 1 local user
- desktop
- for P/N: RK1233BKM, RK2433BKM, RK2537BKM, RK4236BKB, RK4242BK24, RK4242BK30, RKCONS17HD
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SV1631DUSB |
| SHI Part #: | 16787678 |
| Category: | Peripheral switch boxes |
| UNSPSC: | 43211604 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
Audio/Video Cables
- VGA KVM Cable
- USB KVM Cable
- KVM Switch Cable (SVECONUS10)
- Video / USB cable
- USB, HD-15 (VGA) (M) to HD-15 (VGA) (M)
- 3.05 m
- Keyboard / video / mouse (KVM) cable
- PS/2, HD-15 (VGA) (M) to HD-15 (VGA) (M)
- 6 ft
- SVECON6
- Keyboard / video / mouse (KVM) cable
- PS/2, HD-15 (VGA) (M) to HD-15 (VGA) (M)
MSRP $15.99
$15.00
- Keyboard / video / mouse (KVM) cable
- USB, HD-15 (VGA) (M) to HD-15 (VGA) (M)
- 1.8 m
- black
- for P/N: SV1631DUSBU, SV1631DUSBUK, SV431DUSBU, SV831DUSBAU, SV831DUSBU, SV831DUSBUK
MSRP $20.49
$18.00
Power Management
- 12V, 2A
- Universal Replacement Power Adapter (NA, EU, UK, AU) (SVA12M2NEUA)
- Power adapter
- AC 100-240 V
- for P/N: RKPNLLT, S351BMU33ET, S351BMU33ETG, SV431DL2DU3A, SV431DPDDUA2, SV431DPUA2
MSRP $24.59
$22.00
- DC 9 Volts, 2 Amps Power Adapter (SVA9M2NEUA)
- Power adapter
- AC 100-240 V
- for P/N: RS232EXTC1, RS232EXTC1EU, RS232EXTC1GB, SV1631DUSBUK, SV565DUTPU, SV565UTPUEU
MSRP $31.76
$27.00
| General Information | |
|---|---|
| Category | Peripheral switch boxes |
| Description | StarTech.com 16-Port KVM Switch with OSD- 1U Rackmount KVM Switch - USB and PS/2 - 1920 x 1440 @60hz (SV1631DUSB) - KVM switch - 16 x KVM port(s) - 1 local user - desktop - for P/N: RK1233BKM, RK2433BKM, RK2537BKM, RK4236BKB, RK4242BK24, RK4242BK30, RKCONS17HD |
| Manufacturer | StarTech.com |
| MSRP | $342.99 |
| UNSPSC | 43211604 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18 cm |
| Dimensions & Weight / Height | 4.5 cm |
| Dimensions & Weight / Weight | 3.1 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand |
|
| Networking / Form Factor | Desktop |
| Networking / Ports Qty | 16 |
| Networking / Type | KVM switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For | P/N: 2POSTRACK12, 2POSTRACK16, 2POSTRACK42, 4POSTRACK25, 4POSTRACK25U, 4POSTRACK36, 4POSTRACK42, 4POSTRACKBK, 4POSTRACKHD, 7236CABINET, CABCONS1716I, RACKCOND17HD, RACKCONS1916, RK1233BKM, RK1833BKM, RK2236BKF, RK2433BKM, RK2536BKF, RK2537BKM, RK4236BK, RK4236BKB, RK4242BK, RK4242BK24, RK4242BK30, RKCONS17HD, SVA12M2NEUA, SVA12M5NA, SVECON6, SVECONUS10, SVECONUS15, SVECONUS6, SVUSBVGA10, SVUSBVGA6 |
| Dimensions & Weight | |
| Depth | 18 cm |
| Height | 4.5 cm |
| Weight | 3.1 kg |
| Width | 43.8 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | KVM switch - 16 ports - cascadable |
| Enclosure Type | Desktop 1U |
| Keyboard / Mouse Interface | USB |
| KVM Local Users Qty | 1 local user |
| Ports | 16 x KVM port(s) |
| Status Indicators | Port status |
| Subtype | KVM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Power | |
| Power Device | External power adapter |
