Tripp Lite UPS Smart 5000VA 4000W Rackmount AVR 120V-208V Pure Sine Wave 5kVA 6URM TAA GSA

?

5kVA/4kW/208V/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

This line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment. The SM5000RT3UTAA is ideal for large and small network devices, storage and security equipment in labs, network closets, server rooms and data centers.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting optional extended battery modules (BP48V60RT3UTAA, sold separately).

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

Built-in AVR corrects abnormal voltage conditions without using the battery. The SM5000RT3UTAA maintains regulated 208/120V nominal output during brownouts and over-voltages from 151V to 260V while keeping the battery fully charged and ready to take over in case of power failure.

Pure Sine Wave Output

Pure sine wave output power ensures maximum stability with sensitive equipment.

Optional LXE Network Management Card Allows Remote Control and Access 24/7

The WEBCARDLXE (sold separately) enables access to advanced features like switchable load banks, automatic email messaging on power events, and full remote control of the UPS. The IP-based Auto Probe feature ensures network uptime by communicating with other network devices and automatically rebooting IT equipment when a loss of connectivity is detected.

Managed NEMA Outlets Protect Your Connected Components

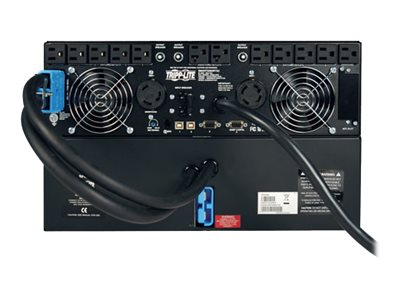

One L14-30R, one L6-30R, two 5-20R, and ten 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor total power consumption. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Eight 5-15R outlets are individually programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Rear cooling fans help protect the UPS from overheating.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

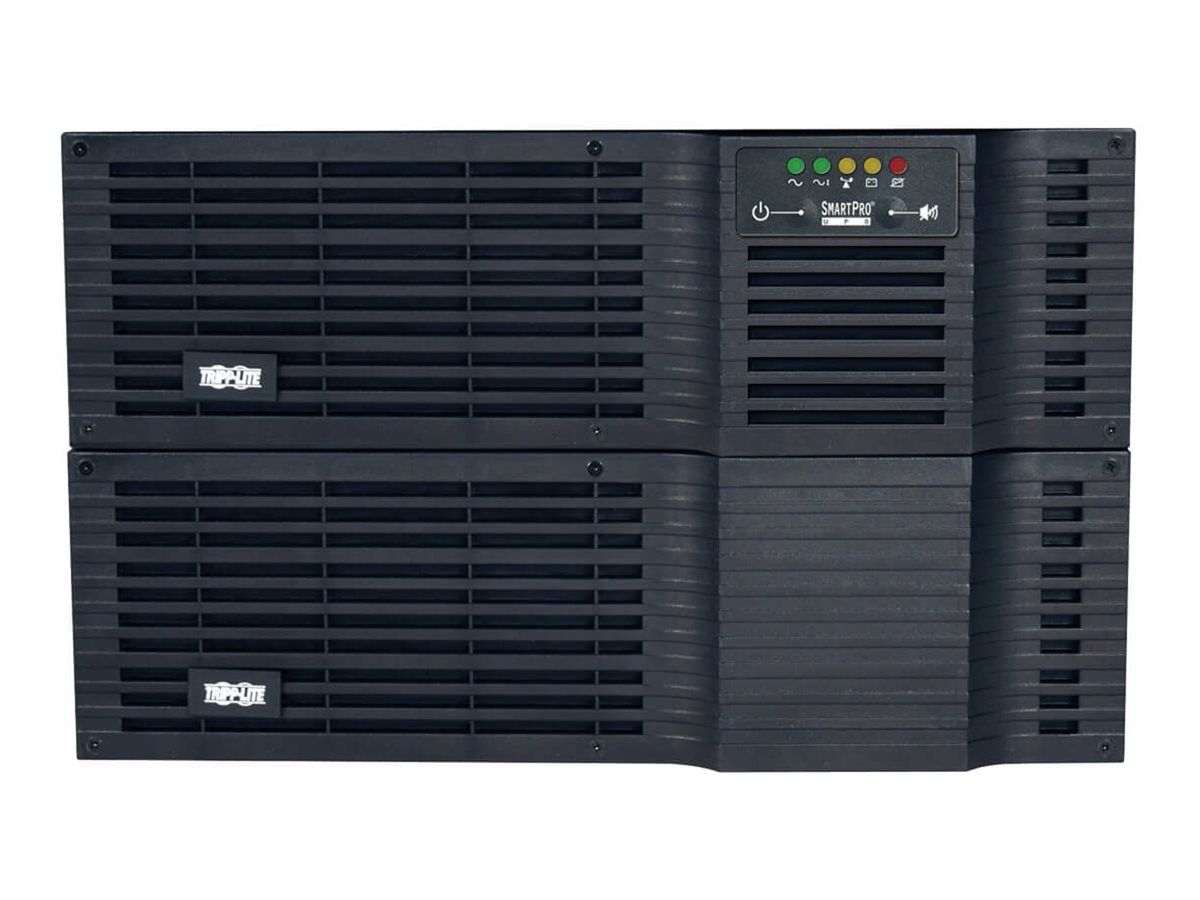

Front-Panel LED Interface for Convenient UPS Operation and Monitoring

The LED front-panel monitoring display features 5 LEDs that allow quick view of UPS and site power information. LEDs show UPS status: a green light means utility power is on and flashes in Standby Mode when charging the battery without AC output. When the AVR LED (Green) is on it means the UPS is automatically boosting or reducing incoming AC voltage to nominal values. The tri-color Load status LED indicates low levels and flashes red when UPS is overloaded. The tri-color Battery Charge Level LED indicates battery charge level in Line Mode and battery capacity remaining in Battery Mode.  The red Battery Replace/Fault LED indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a device for a variety of communication options (cables are included). The EPO port permits emergency shutdown of all connected equipment.

Versatile Installation Options

You can mount the SM5000RT3UTAA in just 6U of space in an EIA-standard 19-inch rack using the included hardware. You can also adapt it for tower installation using the optional 2-9USTAND (sold separately). The 10-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet (Supports 4800W output capacity with a user-supplied 50A connection).

TAA-Compliant for GSA Schedule Purchases

The SM5000RT3UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
