Hardware Power Management

Power Management

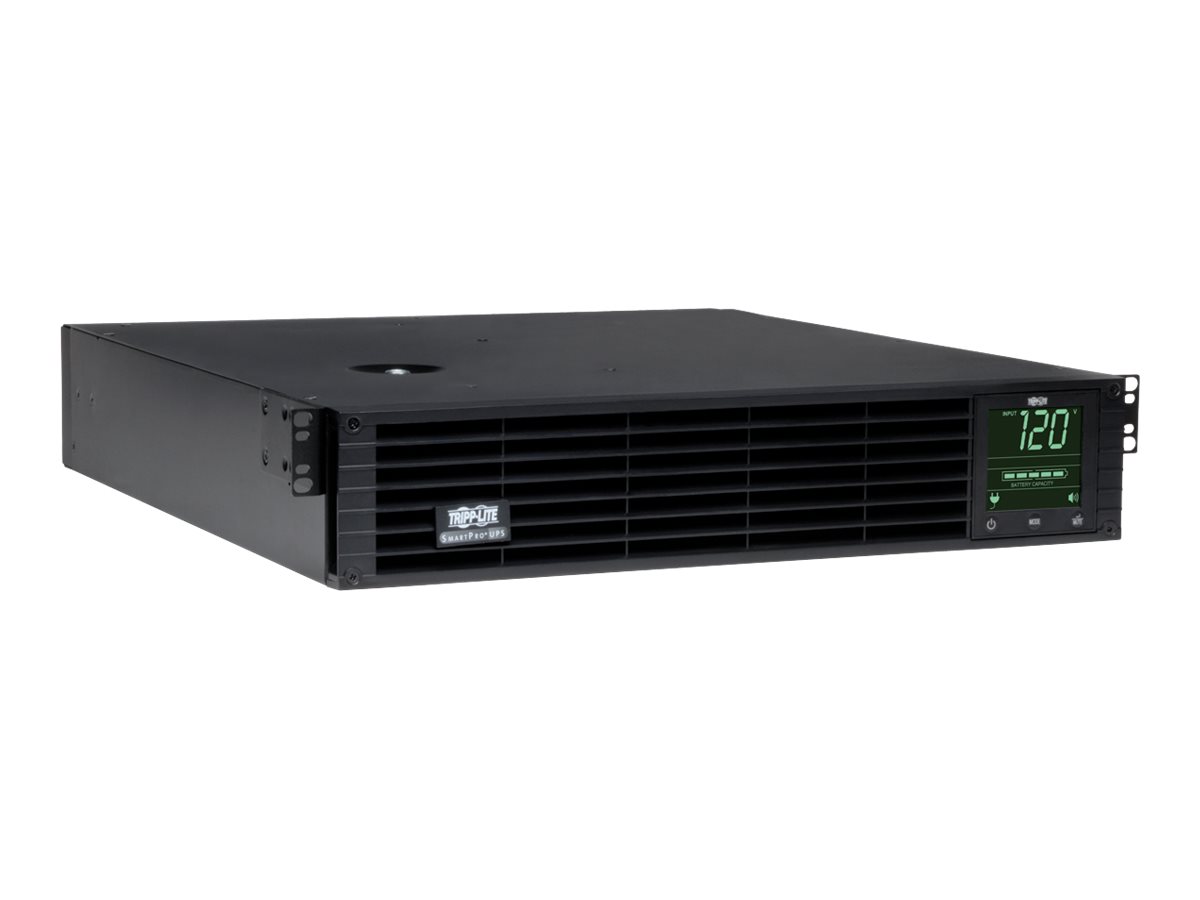

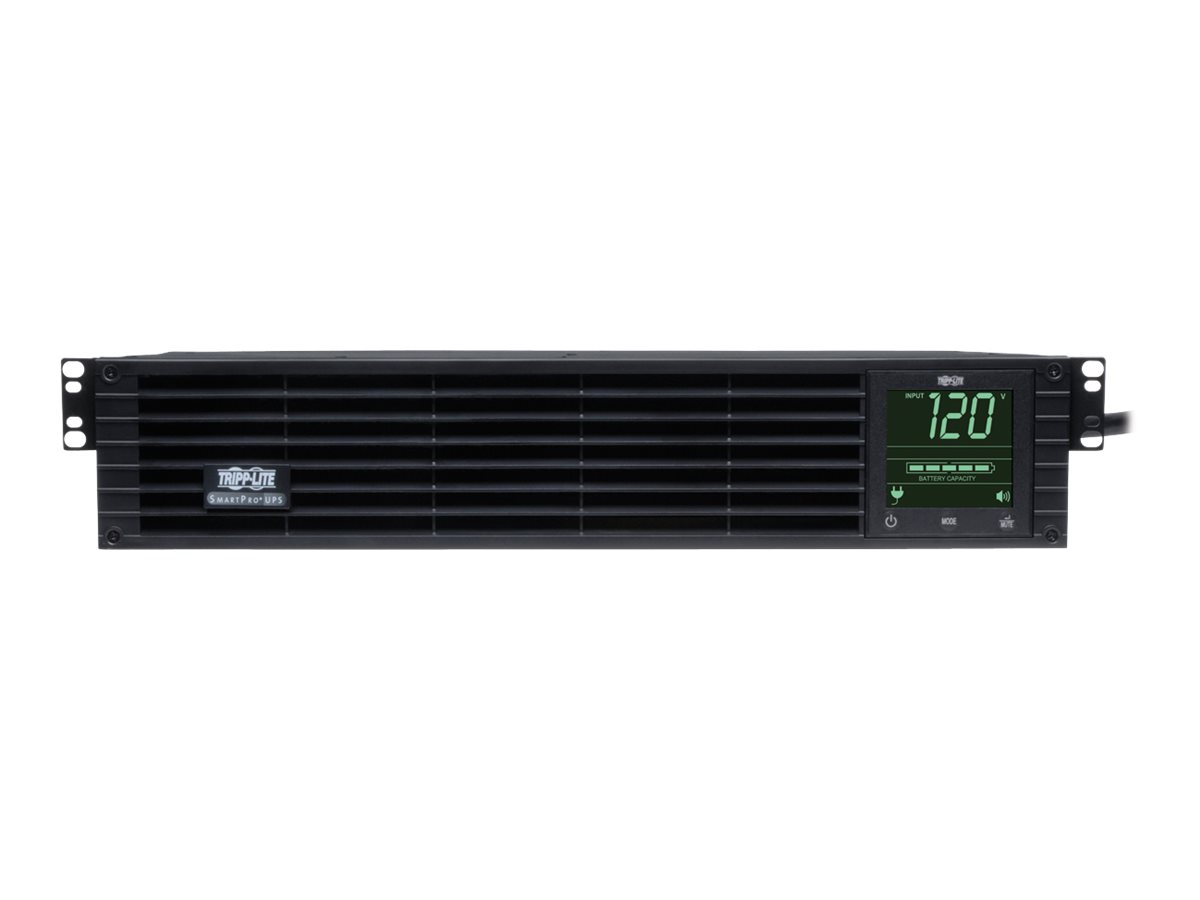

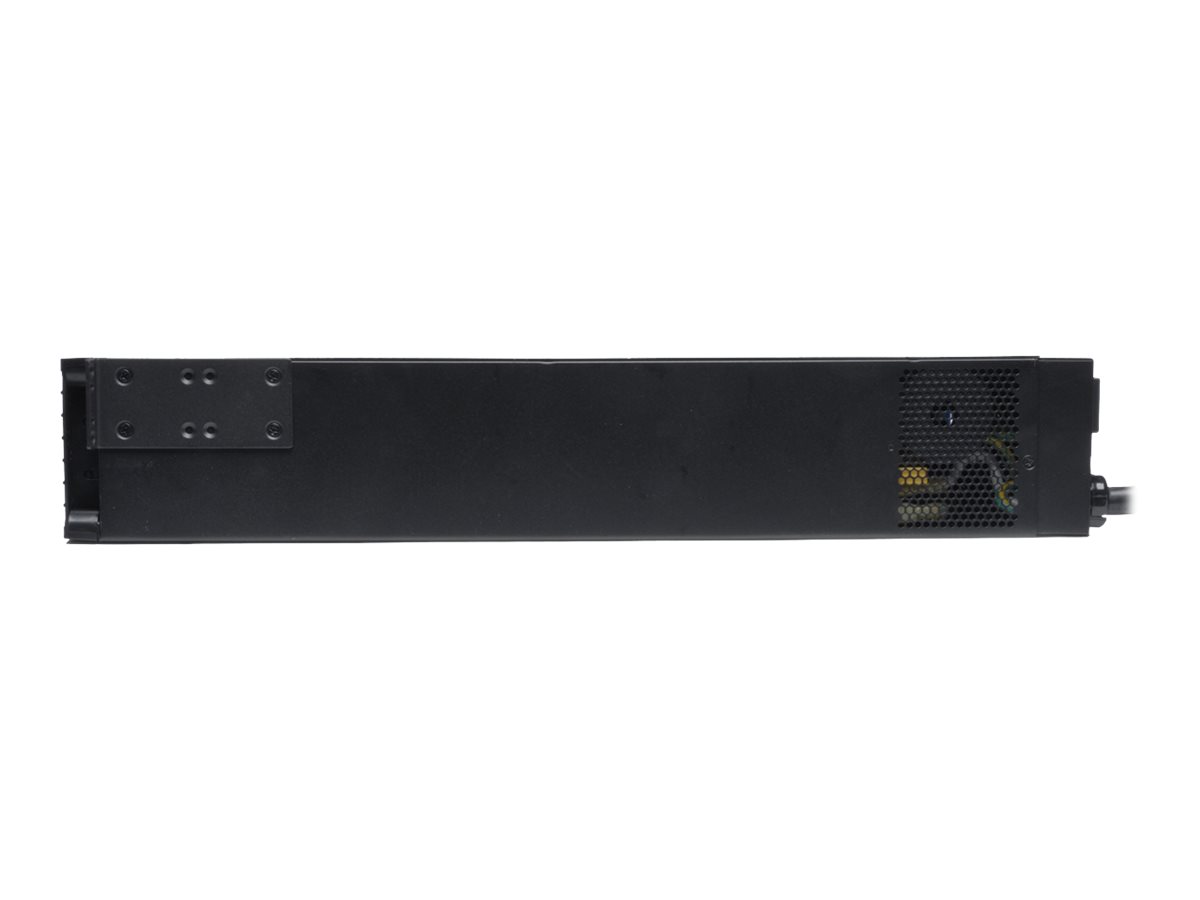

Tripp Lite UPS Smart 3000VA 2250W Rackmount AVR 120V LCD USB DB9 Preinstalled SNMPWEBCARD TAA

MSRP$3,138.66

$2,551.00

Tripp Lite UPS Smart 3000VA 2250W Rackmount AVR 120V LCD USB DB9 Preinstalled SNMPWEBCARD TAA

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
UPS (rack-mountable / external) 24 A AC 120 V 2.25 kW 3000 VA

Tripp Lite UPS Smart 3000VA 2250W Rackmount AVR 120V LCD USB DB9 Preinstalled SNMPWEBCARD TAA

UPS (rack-mountable / external)
24 A
AC 120 V
2.25 kW
3000 VA
Ethernet, RS-232, USB
output connectors: 9
2U
19"
TAA Compliant

Additional Details
Price:	$2,551.00
MSRP:	$3,138.66
Mfr Part #:	SM3000RM2UNTAA
SHI Part #:	29271927
Category:	Power conditioning equipment
UNSPSC:	39121000
Manufacturer:	Eaton
Product Type:	Hardware
Product Line:	Tripp Lite

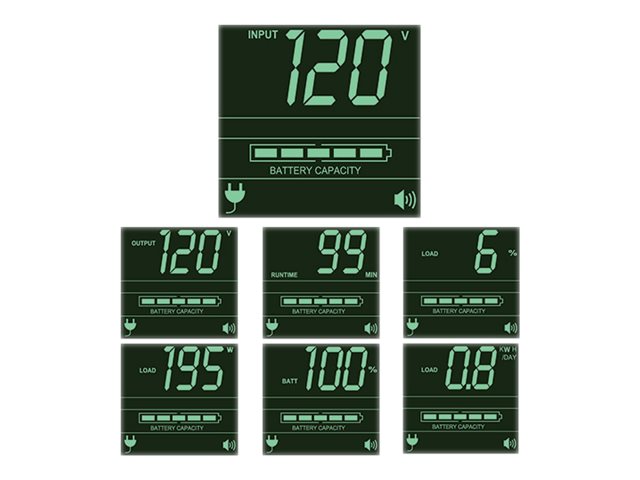

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card.

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring and auto-shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

Storage Networking (SAN)

Tripp Lite SmartRack 4-Post Rack-Mount Shelf Kit Universal for Wallmount Racks 1U

Rack shelf mounting kit
rack mountable
silver
1U
19"

MSRP $119.58

$92.00

Tripp Lite Rack Enclosure Server Cabinet UPS 2-Post Front Rail Mounting Bracket

UPS mounting brackets
front

MSRP $93.38

$72.00

Tripp Lite 2-Post Rackmount / Wallmount Installation Kit for select Rackmount UPS Systems

Rack mounting kit
wall mountable

MSRP $192.46

$148.00

UPS-Battery Backups

Tripp Lite 48V 3U Rackmount External Battery Pack Enclosure / DC Cabling for select UPS Systems TAA/GSA

Battery enclosure
3U
government GSA
TAA Compliant

MSRP $2,959.00

$2,405.00

Eaton Tripp Lite Series UPS Startup on UPS Systems 0-6000 VA for select products, Smart, SMX, SU UPS

Configuration (for UPS 1
6000 VA)
on-site
24x7
response time: NBD
for P/N: AVR750UNC, SMART1500RXLTAA, SMART2200RXLTAA, SMART3000RXLTAA, SU6000RTFMB, SU6000RTMB

MSRP $1,660.00

$1,619.00

General Information
Category	Power conditioning equipment
Description	Tripp Lite UPS Smart 3000VA 2250W Rackmount AVR 120V LCD USB DB9 Preinstalled SNMPWEBCARD TAA - UPS (rack-mountable / external) - 24 A - AC 120 V - 2.25 kW - 3000 VA - Ethernet, RS-232, USB - output connectors: 9 - 2U - 19" - TAA Compliant
Manufacturer	Eaton
MSRP	$3,138.66
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	49.5 cm
Dimensions & Weight / Height	8.9 cm
Dimensions & Weight / Weight	28.5 kg
Dimensions & Weight / Width	44.4 cm
Header / Brand	Tripp Lite
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable / external
Power Device / Output Connector Qty	9
Power Device / Power Capacity (VA)	3000 VA
Power Device / UPS Technology	Line interactive
Power Device / Voltage Required	AC 120 V
Product Type	UPS
Service & Support / Type	2-year warranty
Battery
Recharge Time	4.5 hours
Run Time (Up To)	3.5 min at full load 10 min at half load
Voltage Provided	48 V
Dimensions & Weight
Depth	49.5 cm
Height	8.9 cm
Weight	28.5 kg
Width	44.4 cm
Dimensions & Weight (Shipping)
Shipping Depth	62 cm
Shipping Height	20.1 cm
Shipping Weight	33.5 kg
Shipping Width	61.5 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Expansion Slots	1 (total) / 0 (free) x expansion slot

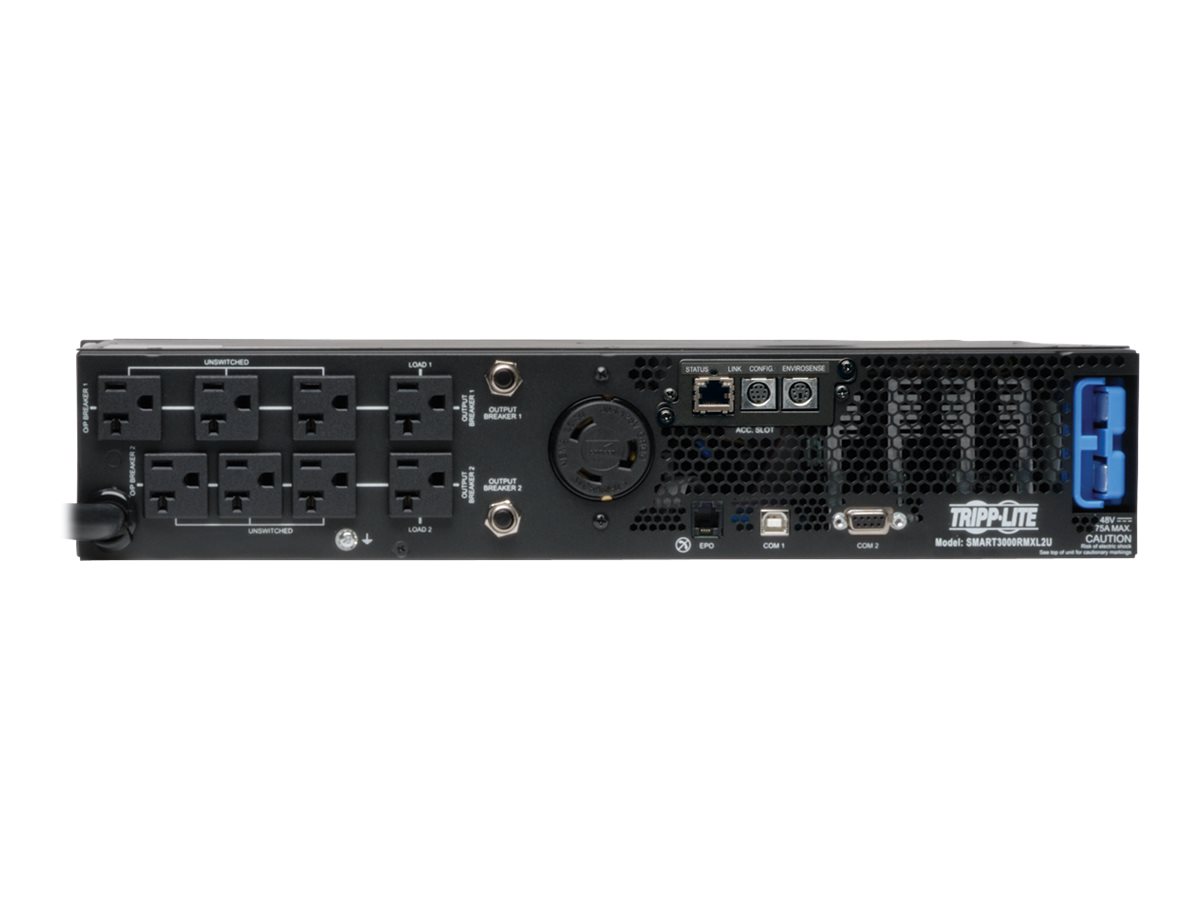

Interfaces	1 x management (Ethernet) - RJ-45 1 x management (USB) - 4 pin USB Type B 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off)
General
Battery Enclosure Type	Plug-in module
Device Type	UPS - rack-mountable / external
Height (Rack Units)	2U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous

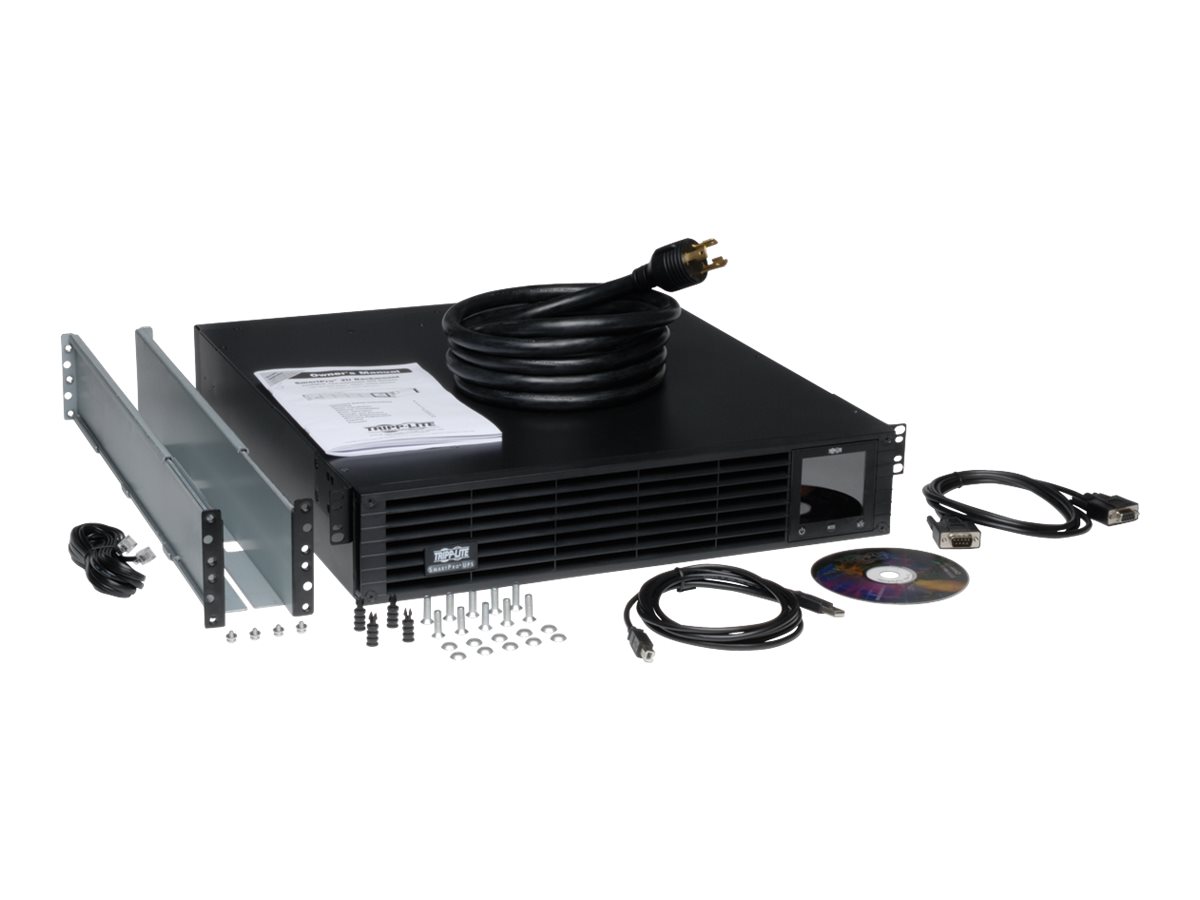

Cables Included	Power cable 3 m USB cable - external Serial cable - external EPO cable - external
Compliant Standards	CSA, NOM, UL 1778, RoHS, FCC Part 15 A
Equipment Protection Value	250000 US Dollars
Features	Audible alarm, LCD display, Automatic Voltage Regulation (AVR), noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, hot-swappable batteries, energy efficient
Rack Mounting Kit	Included
TAA Compliant	Yes
Networking
Remote Management Interface	Ethernet, RS-232, USB
Remote Management Protocol	SNMP
Power Device
Circuit Protection	Circuit breaker
Frequency Provided	60 Hz
Frequency Required	60 Hz

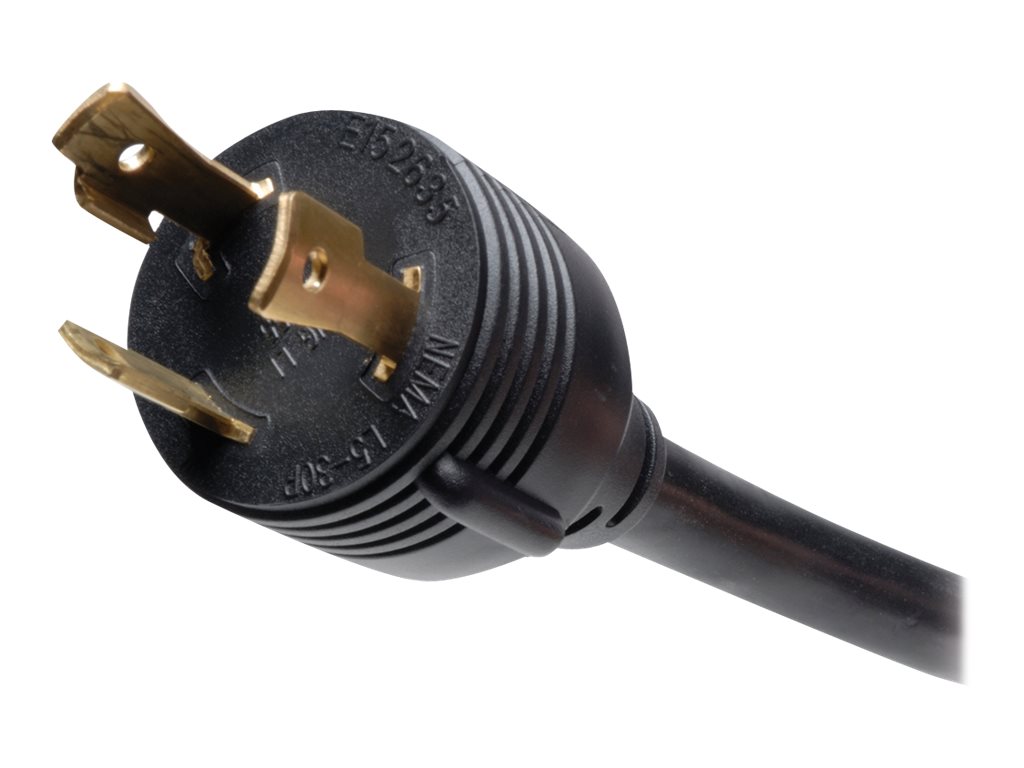

Input Connectors	1 x power NEMA L5-30
Input Voltage	AC 120 V
Max Electric Current	24 A
Output Voltage	AC 120 V ± 5% - 60 Hz
Output Waveform	Sinewave
Power Capacity	2.25 kW / 3000 VA
Power Output Connectors Details	1 x power NEMA L5-30 8 x power NEMA 5-15/20
Surge Energy Rating	570 Joules
Surge Suppression	Yes
UPS Technology	Line interactive
Software / System Requirements
Software Included	TrippLite PowerAlert
