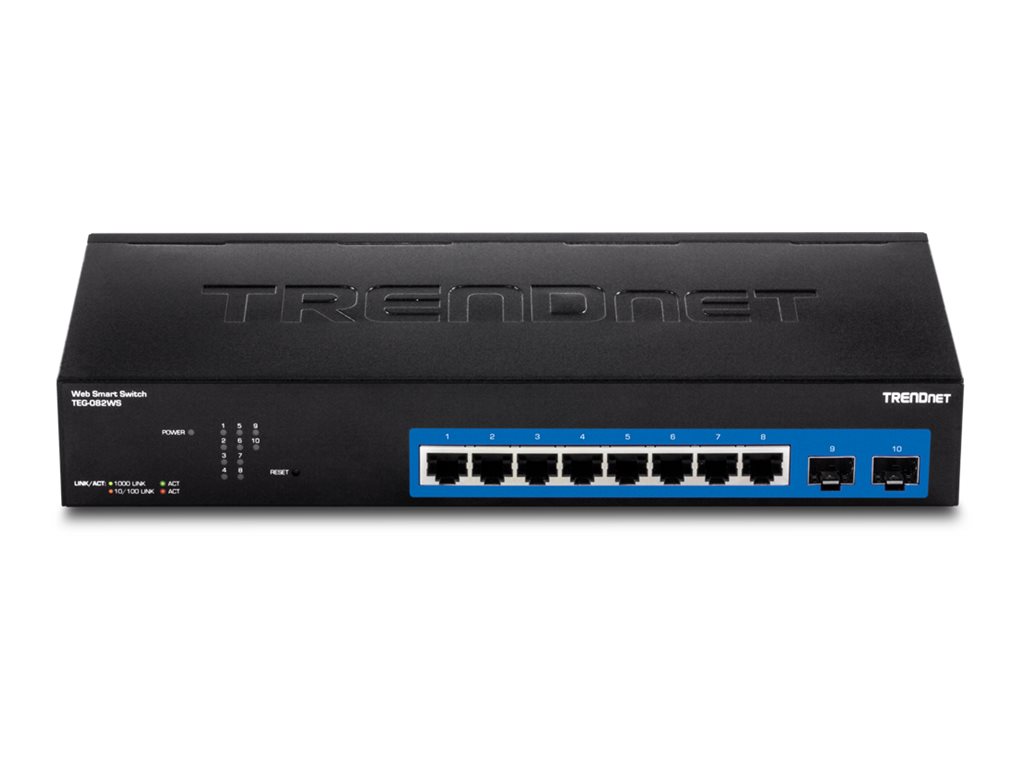

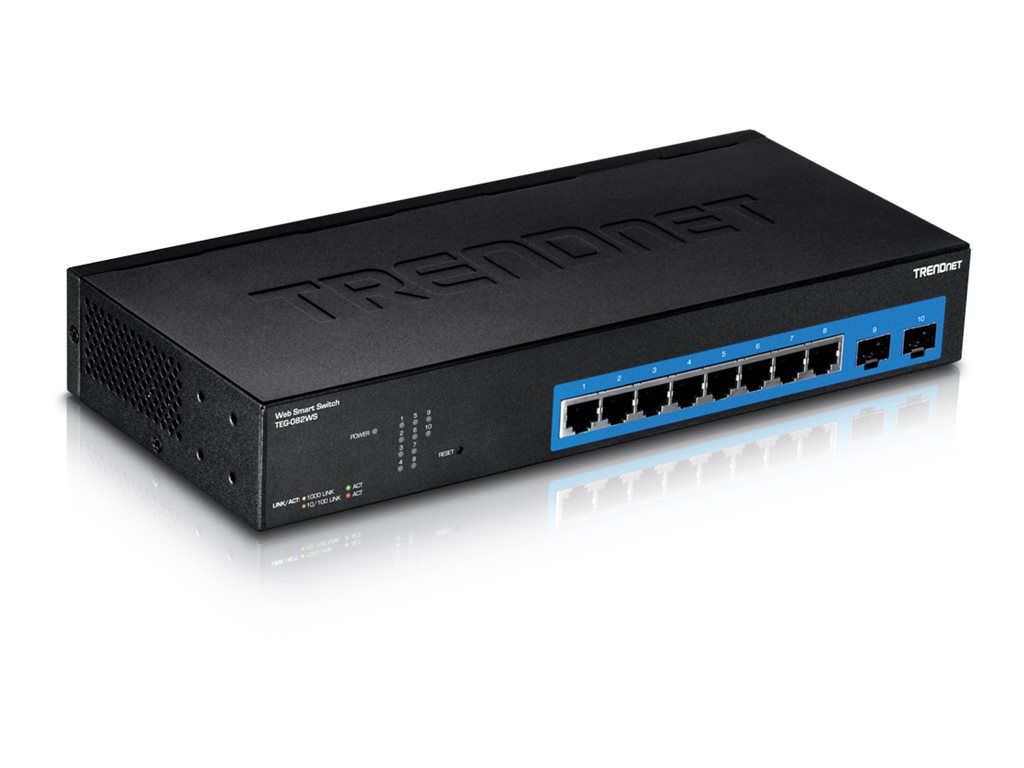

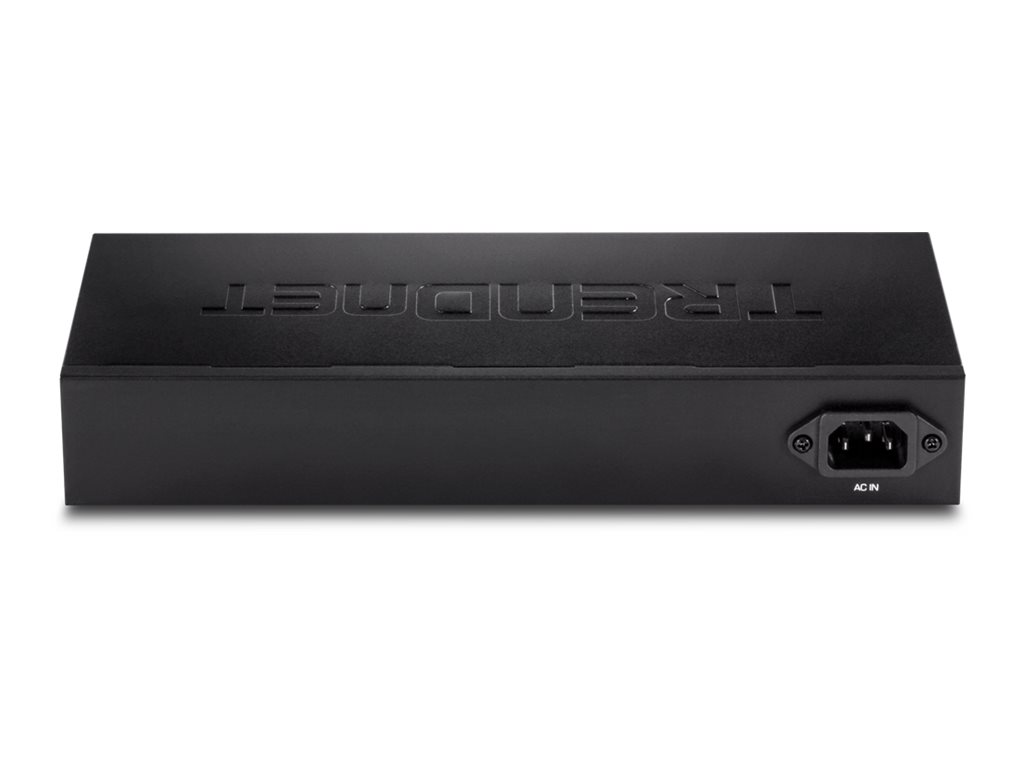

TRENDnet TEG 082WS - Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
TRENDnet TEG 082WS - Switch
- managed
- 8 x 10/100/1000 + 2 x shared SFP
- rack-mountable
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TEG-082WS |
| SHI Part #: | 29688259 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | TRENDnet |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | TRENDnet TEG 082WS - Switch - managed - 8 x 10/100/1000 + 2 x shared SFP - rack-mountable - TAA Compliant |
| Manufacturer | TRENDnet |
| MSRP | $114.99 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 1.5 kg |
| Dimensions & Weight / Width | 28 cm |
| Header / Brand | TRENDnet |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 8 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 18 cm |
| Height | 4.4 cm |
| Weight | 1.5 kg |
| Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Capacity | Virtual interfaces (VLANs): 4094 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL, TLS, SSL 3.0, SSL 2.0 |
| Features | DHCP support, VLAN support, IGMP snooping, port mirroring, WRR queuing, MAC address filtering, IPv6 support, half duplex mode, full duplex mode, GREENnet technology, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, bandwidth control, fanless, port based access control, SNMP trap, MIB, NDP, CoS, SP, tagged VLAN, Loopback, DoS, GVRP, Duplicated Address Detection, DSCP support |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 16 Gbps |
| Ports | 8 x 10/100/1000 + 2 x shared SFP |
| RAM | 1 MB |
| Remote Management Protocol | SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC |
| MTBF | 1,054,337 hours |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Power | |
| Power Consumption Operational | 13.8 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008, Windows 8 / 8.1 |
| Software Included | Drivers & Utilities |
