Raritan Dominion PX PX3-5434R
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

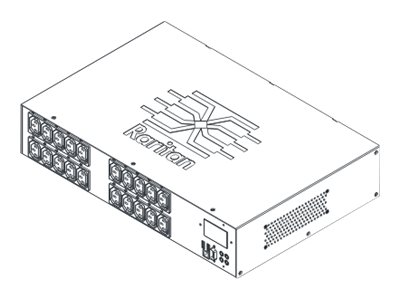

Raritan Dominion PX PX3-5434R
- Power control unit (rack-mountable)
- AC 208 V
- 3800 VA
- Ethernet 10/100, RS-232
- input: NEMA L6-20
- output connectors: 20 (power IEC 60320 C13)
- 2U
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5434R |
| SHI Part #: | 30637133 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan Dominion PX PX3-5434R - Power control unit (rack-mountable) - AC 208 V - 3800 VA - Ethernet 10/100, RS-232 - input: NEMA L6-20 - output connectors: 20 (power IEC 60320 C13) - 2U - black powder coat |
| Manufacturer | Legrand |
| MSRP | $1,484.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 29.3 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Width | 44 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 20 |
| Power Device / Power Capacity (VA) | 3800 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power control unit |
| Dimensions & Weight | |
| Depth | 29.3 cm |
| Height | 8.8 cm |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Device Type | Power control unit - rack-mountable |
| Height (Rack Units) | 2U |
| Miscellaneous | |
| Cables Included | Power cable - external - 3 m |
| Compliant Standards | UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus |
| Features | LED display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-20 |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Max Electric Current | 16 A |
| Output Voltage | AC 208 V |
| Power Capacity | 3800 VA |
| Power Output Connectors Details | 20 x power IEC 60320 C13 12 A |
