TRENDnet TPE 082WS - Switch

$194.00
TRENDnet TPE 082WS - Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 10 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP
  • rack-mountable
  • PoE+ (75 W)
  • TAA Compliant

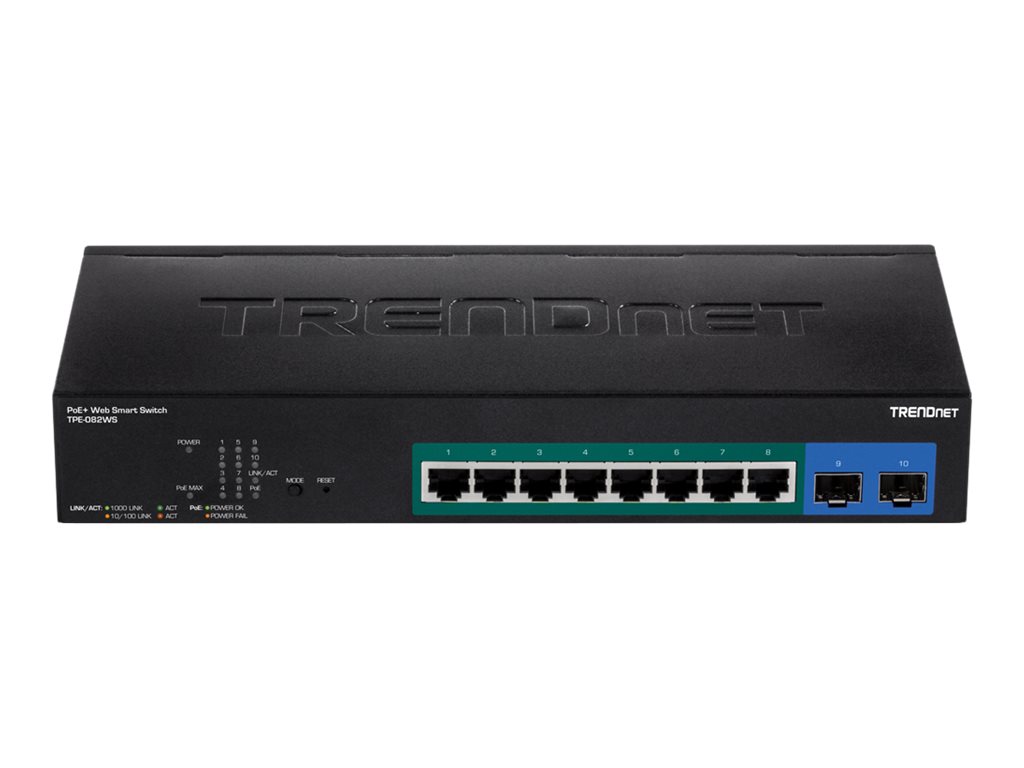

TRENDnet TPE 082WS - Switch
  • 10 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP
  • rack-mountable
  • PoE+ (75 W)
  • TAA Compliant
  Additional Details
Price: $194.00
Mfr Part #: TPE-082WS
SHI Part #: 34122777
Category: Network switches
UNSPSC: 43222612
Manufacturer: TRENDnet
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionTRENDnet TPE 082WS - Switch - 10 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP - rack-mountable - PoE+ (75 W) - TAA Compliant
ManufacturerTRENDnet
MSRP$169.99
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth12.58 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight920 g
Dimensions & Weight / Width28 cm
Header / BrandTRENDnet
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty10
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth12.58 cm
Height4.4 cm
Weight920 g
Width28 cm
Environmental Parameters
Humidity Range Operating95% (non-condensing)
Max Operating Temperature50 °C
Min Operating Temperature-5 °C
Expansion / Connectivity
Interfaces
  • 8 x 1000Base-T RJ-45 PoE+ - 30 W
  • 2 x SFP
General
Authentication MethodRADIUS, TACACS+
Capacity
  • IPv6 routes (static): 256
  • VLAN IDs: 4094
  • Multicast entries (IPv4): 256
  • Maximum TCP/UDP sessions: 65535
  • MAC address entries: 8000
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3at, IEEE 802.3az
Device TypeSwitch - 10 ports
Enclosure TypeRack-mountable 1U
Encryption AlgorithmTLS, SSL 3.0, SSL 2.0
FeaturesIGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Virtual Cable Test (VCT) technology, DHCP snooping, Quality of Service (QoS), MLD snooping, fanless, LACP support, LLDP support, Dynamic VLAN Support (GVRP), Class of Service (CoS), Strict Priority (SP), Loopback, Denial of Service (DoS), Duplicated Address Detection, per port bandwidth control, DiffServ Code Point (DSCP) support, power-saving mode, Head of Line Blocking Prevention, TCP/UDP port setting, Static Link Aggregation, Voice VLAN, VLAN management, Private VLAN
Jumbo Frame Support10KB
MAC Address Table Size8K entries
Performance
  • Forwarding performance (64-byte packet size): 14.9 Mpps
  • Switching fabric bandwidth: 20 Gbps
PoE Budget75 W
Ports10 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP
Power Over Ethernet (PoE)PoE+
Remote Management ProtocolSNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Status IndicatorsPower, PoE, link/activity
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsFCC, IPv6 Ready
MTBF862,966 hours
Rack Mounting KitIncluded
TAA CompliantYes
Power
Power Consumption Operational82 Watt
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
