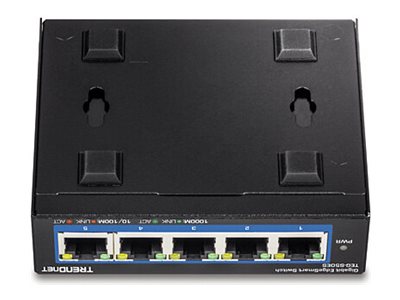

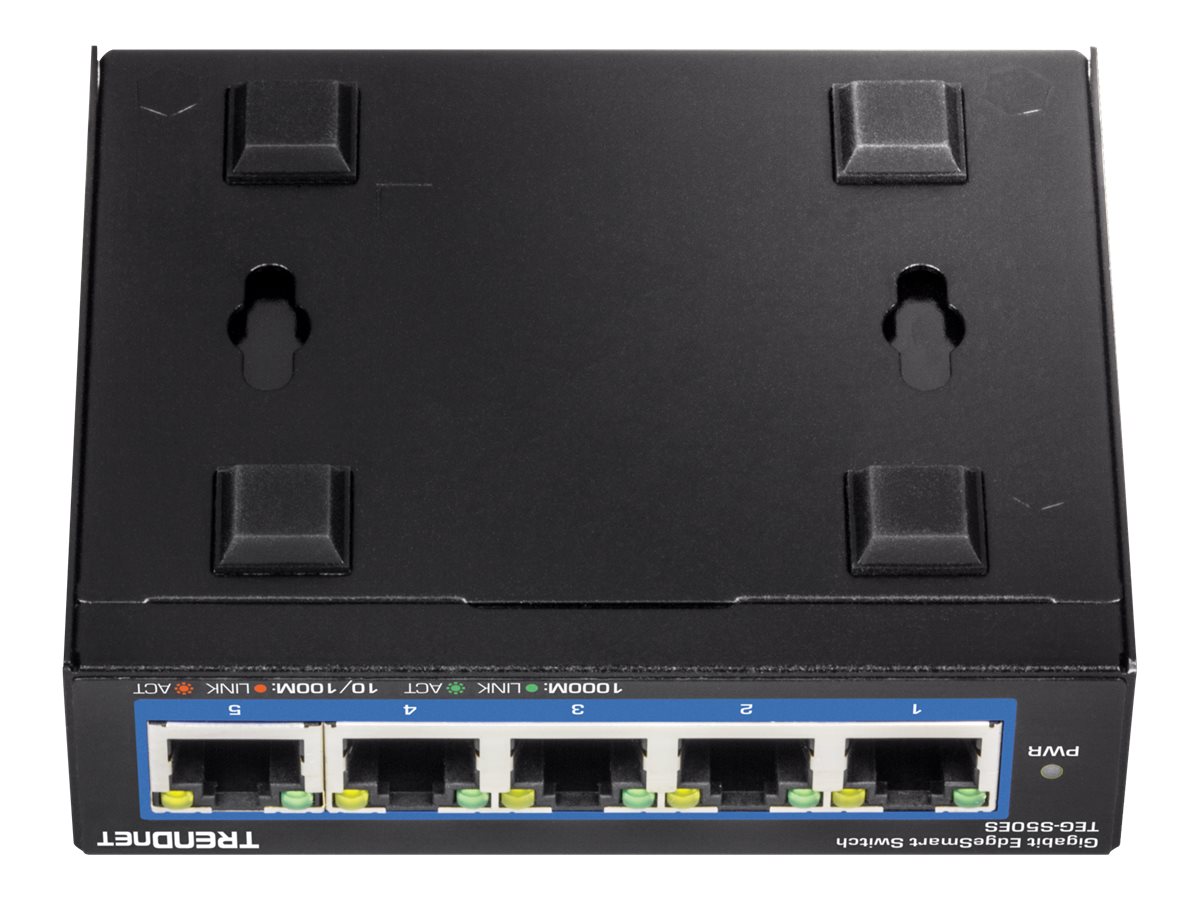

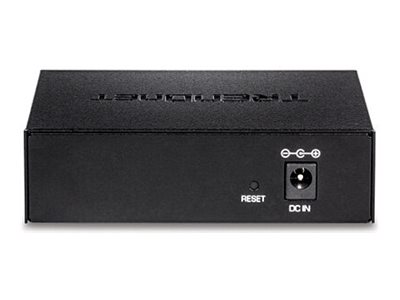

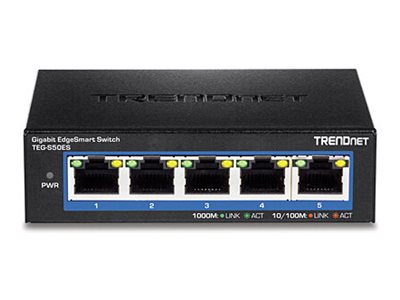

TRENDnet TEG S50ES - Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
TRENDnet TEG S50ES - Switch
- smart
- 5 x 10/100/1000
- desktop, wall-mountable
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TEG-S50ES |
| SHI Part #: | 35782757 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | TRENDnet |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | TRENDnet TEG S50ES - Switch - smart - 5 x 10/100/1000 - desktop, wall-mountable - TAA Compliant |
| Manufacturer | TRENDnet |
| MSRP | $34.99 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.2 cm |
| Dimensions & Weight / Height | 2.8 cm |
| Dimensions & Weight / Weight | 224 g |
| Dimensions & Weight / Width | 10.05 cm |
| Header / Brand | TRENDnet |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Ports Qty | 5 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 8.2 cm |
| Height | 2.8 cm |
| Weight | 224 g |
| Width | 10.05 cm |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 5 x Gigabit LAN RJ-45 |
| General | |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3az |
| Device Type | Switch - 5 ports - smart |
| Enclosure Type | Desktop, wall-mountable |
| Features | VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, STP support, RSTP support, QoS, reset button, fanless, SNMP trap, CoS, SP, tagged VLAN, metal housing, per port bandwidth control, cable test, Link Aggregation, Voice VLAN, Private VLAN, loopback detection, port-based VLAN, port-based QoS, Asymmetric VLAN |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 2K entries |
| Performance |
|
| Ports | 5 x 10/100/1000 |
| RAM | 125 KB |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Status Indicators | Power, PoE, link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, WEEE |
| MTBF | 1,633,047 hours |
| TAA Compliant | Yes |
| Power | |
| Electric Current Required | 0.2 A |
| Power Consumption Operational | 3.42 Watt |
| Power Device | External power adapter |
| Power Provided | 5 V - 1 A |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
