Hardware Power Management Power Distribution (PDU)

Power Distribution (PDU)

Raritan PX3-5453R-K6

$1,952.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Power distribution unit (rack-mountable) AC 120 V 2900 VA 1-phase Ethernet 10/100, RS-232, Ethernet 10/100/1000

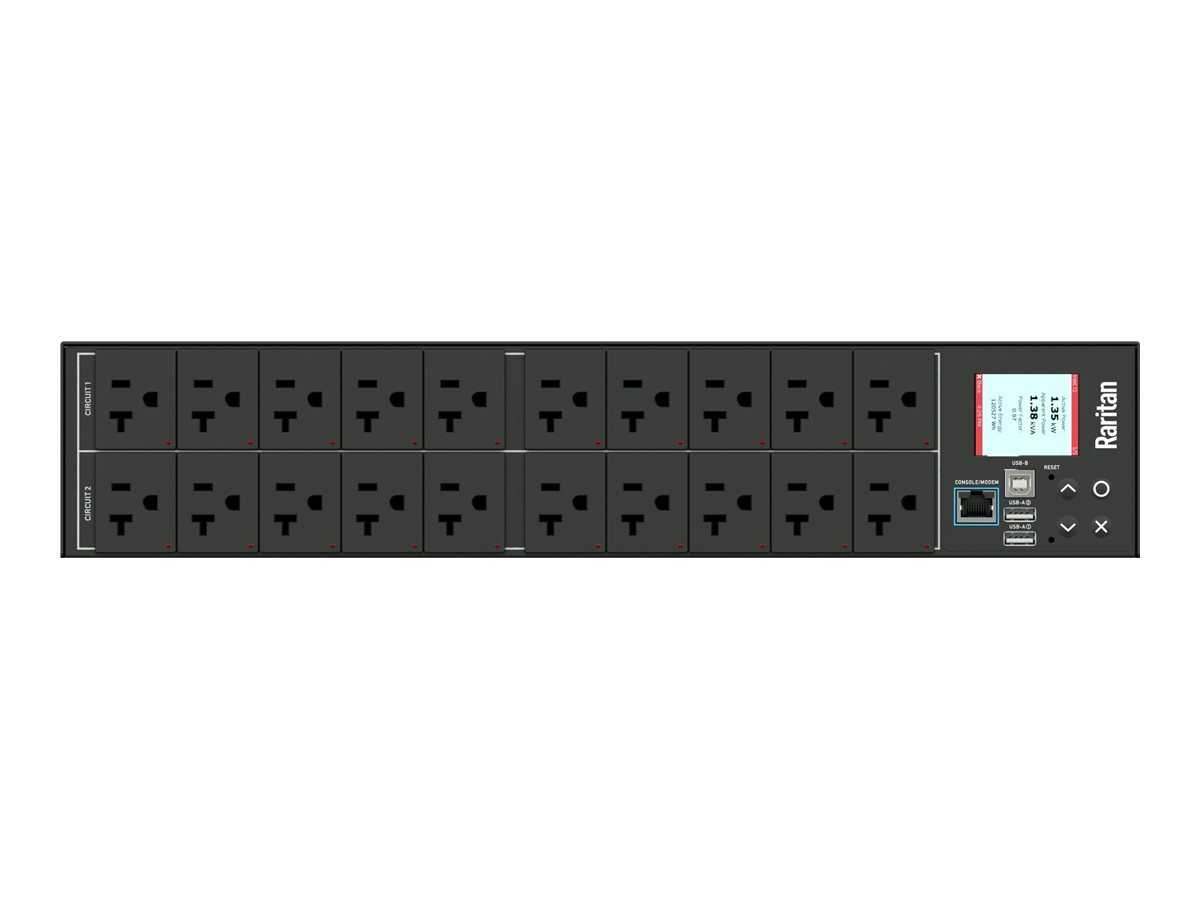

Raritan PX3-5453R-K6

Power distribution unit (rack-mountable)
AC 120 V
2900 VA
1-phase
Ethernet 10/100, RS-232, Ethernet 10/100/1000
input: NEMA L5-30P
output connectors: 20 (NEMA 5-20R)
3 m cord
yellow

Additional Details
Price:	$1,952.00
Mfr Part #:	PX3-5453R-K6
SHI Part #:	39647384
Category:	Power distribution units PDUs
UNSPSC:	39121017
Manufacturer:	Legrand
Product Type:	Hardware

General Information
Category	Power distribution units PDUs
Description	Raritan PX3-5453R-K6 - Power distribution unit (rack-mountable) - AC 120 V - 2900 VA - 1-phase - Ethernet 10/100, RS-232, Ethernet 10/100/1000 - input: NEMA L5-30P - output connectors: 20 (NEMA 5-20R) - 3 m cord - yellow
Manufacturer	Legrand
MSRP	$1,821.00
UNSPSC	39121017
Main Specifications
Dimensions & Weight / Depth	29.2 cm
Dimensions & Weight / Height	8.8 cm
Dimensions & Weight / Weight	6.8 kg
Dimensions & Weight / Width	44 cm
General / Subcategory	Power distribution devices
Header / Brand	Raritan
Miscellaneous / Product Color	Yellow
Networking / Remote Management Interface	Ethernet 10/100 Ethernet 10/100/1000 RS-232
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	20
Power Device / Power Capacity (VA)	2900 VA
Power Device / Voltage Required	AC 120 V
Product Type	Power distribution unit
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	29.2 cm
Height	8.8 cm
Weight	6.8 kg
Width	44 cm
Dimensions & Weight (Shipping)
Shipping Depth	55.2 cm
Shipping Height	28.4 cm
Shipping Weight	10.8 kg
Shipping Width	56 cm
Environmental Parameters
Humidity Range Operating	85%
Max Operating Temperature	60 °C
Expansion / Connectivity
Interfaces	2 x USB - 4 pin USB Type A 1 x USB - 4 pin USB Type B 1 x management (Fast Ethernet) - RJ-45 1 x management (Gigabit Ethernet) - RJ-45 1 x sensor - RJ-45 1 x management (RS-232) - RJ-45 1 x cascading - RJ-45
General
Color	Yellow
Cord Length	3 m
Device Type	Power distribution unit - rack-mountable
Image Color Disclaimer	The displayed product image may be a different color
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Cables Included	Power cable - integrated - 3 m
Compliant Standards	UL, ICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21
Features	LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, rear feed cord entry, power cable IP44 compliant, 2 x Airpax LELBX1-20 overload protection, environmental sensor ready
Networking
Remote Management Interface	Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol	SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, Modbus
Power Device
Circuit Protection	Circuit breaker
Frequency Required	50/60 Hz
Input Connectors	1 x power NEMA L5-30P
Input Voltage	AC 120 V
Input Voltage Range	AC 100 - 120 V
Input Wiring	1-phase
Max Electric Current	30 A
Output Voltage	AC 120 V
Power Capacity	2900 VA
Power Capacity Details	2.4 kVA at 100 V, 2.9 kVA at 120 V
Power Output Connectors Details	20 x power NEMA 5-20R 16 A
