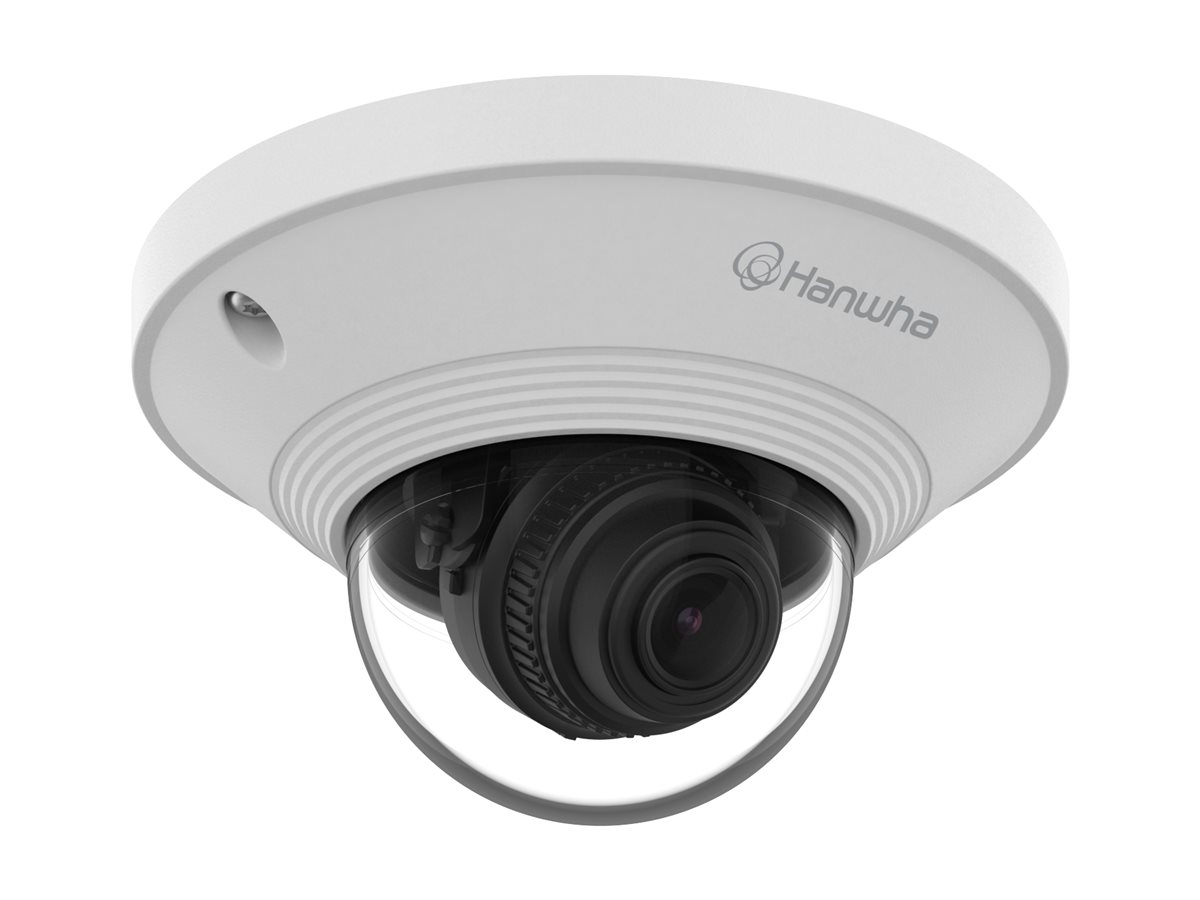

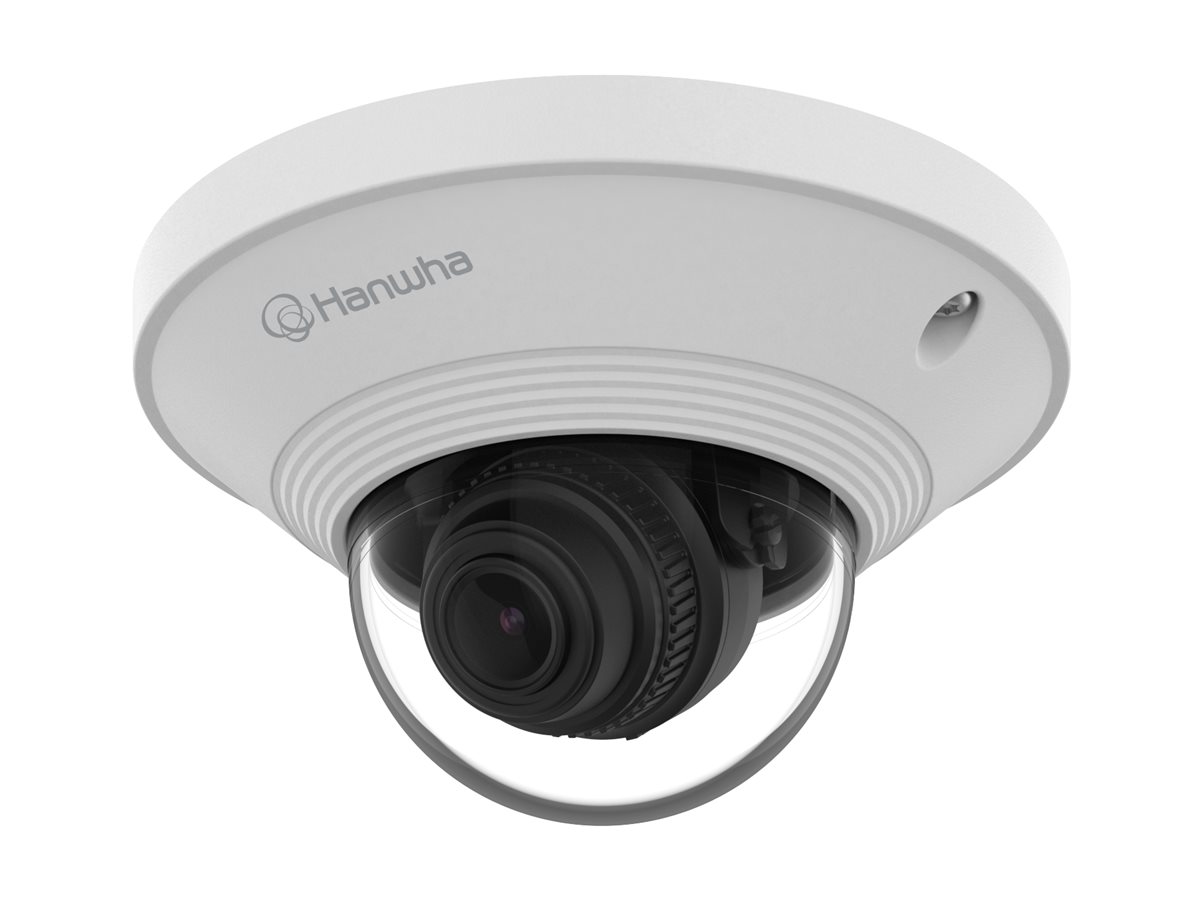

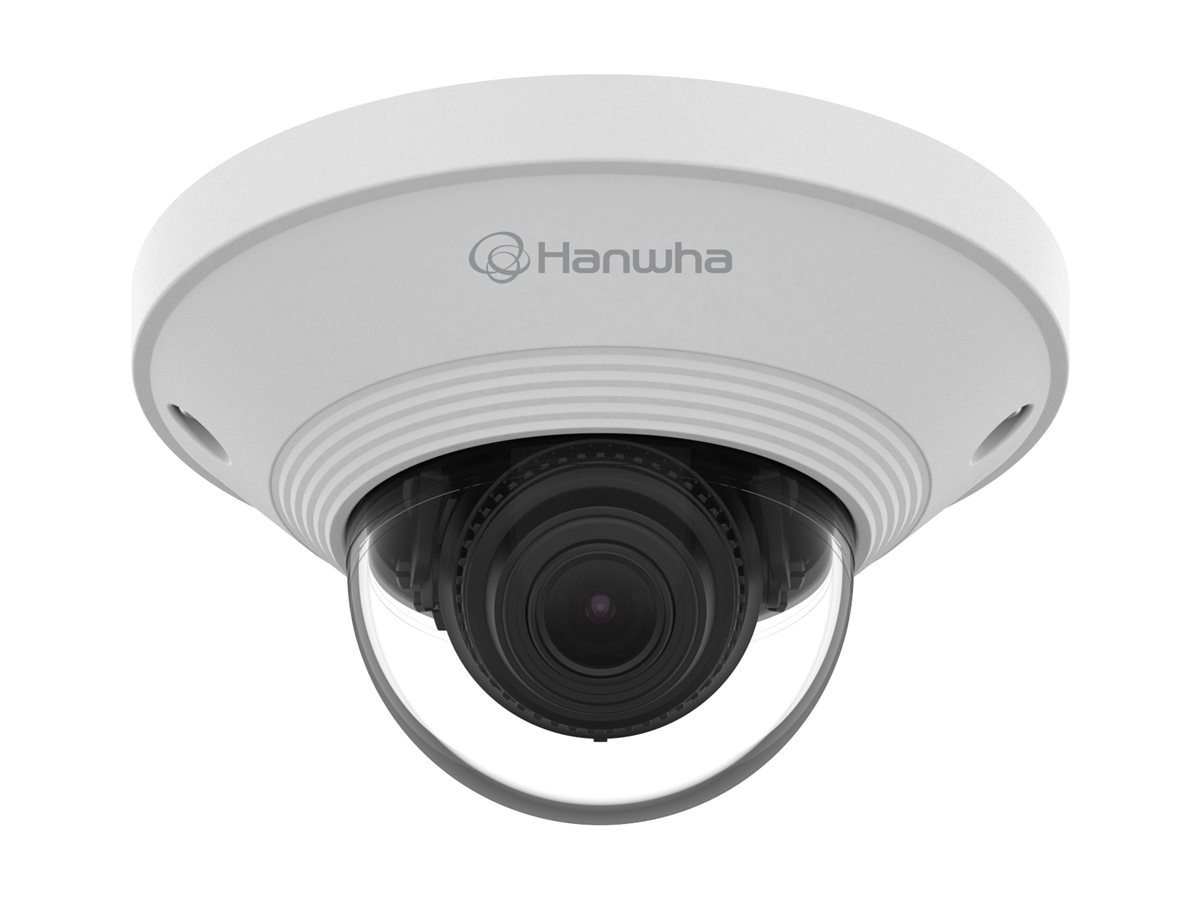

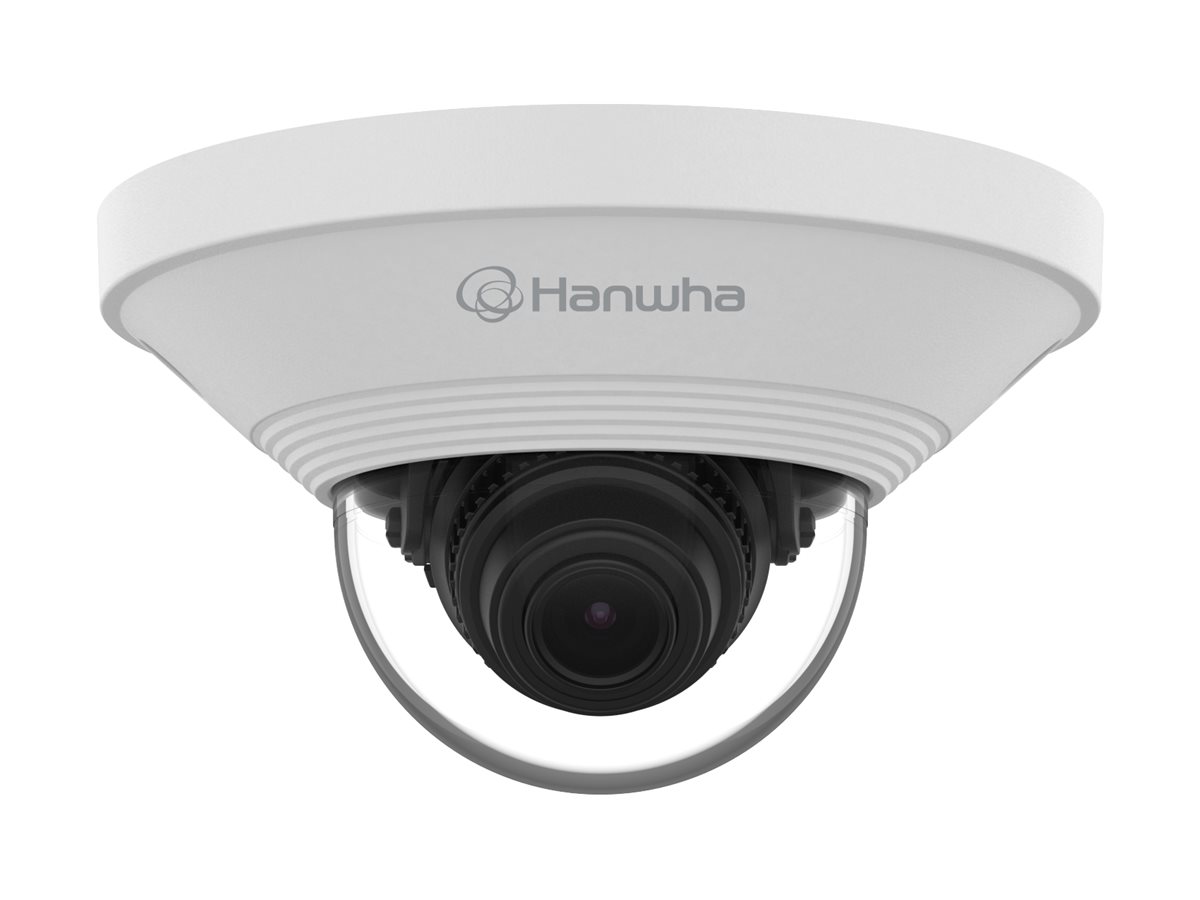

Hanwha Vision WiseNet Q mini QND-6021
MSRP$300.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet Q mini QND-6021
- Network surveillance camera
- dome
- color (Day&Night)
- 2 MP
- 1920 x 1080
- 1080p
- fixed focal
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 2
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $300.00 |
| Mfr Part #: | QND-6021 |
| SHI Part #: | 41094878 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet Q mini QND-6021 - Network surveillance camera - dome - color (Day&Night) - 2 MP - 1920 x 1080 - 1080p - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 2 |
| Manufacturer | HANWHA VISION |
| MSRP | $300.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.9 cm |
| Dimensions & Weight / Height | 5.6 cm |
| Dimensions & Weight / Weight | 145 g |
| Dimensions & Weight / Width | 9.9 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 720 x 576, 800 x 600, 1920 x 1080, 640 x 360, 800 x 448 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, motion detection, ONVIF (Profile T) support |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination | 0.1 lux - color - F1.6 |
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed |
| Video Modes | 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 9.9 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 5.6 cm |
| Weight | 145 g |
| Width | 9.9 cm |
| Image Sensor | |
| Effective Pixels | 1920 x 1080 |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, LLDP |
| Lens Construction | |
| Diagonal Field of View (degree) | 104.5 |
| Focal Length | 4 mm |
| Horizontal Field of View (degree) | 87.6 |
| Lens Iris | F/1.6 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 46.4 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | FCC, cULus, IP42, IEC 62262 IK08, EAC, IEEE 802.3af, IEEE 802.1x |
| Panning | |
| Range (degree) | 350 |
| Power | |
| Power Device | 2.8 Watt |
| Power Requirements | PoE Class 2 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | 0 to 69 |
