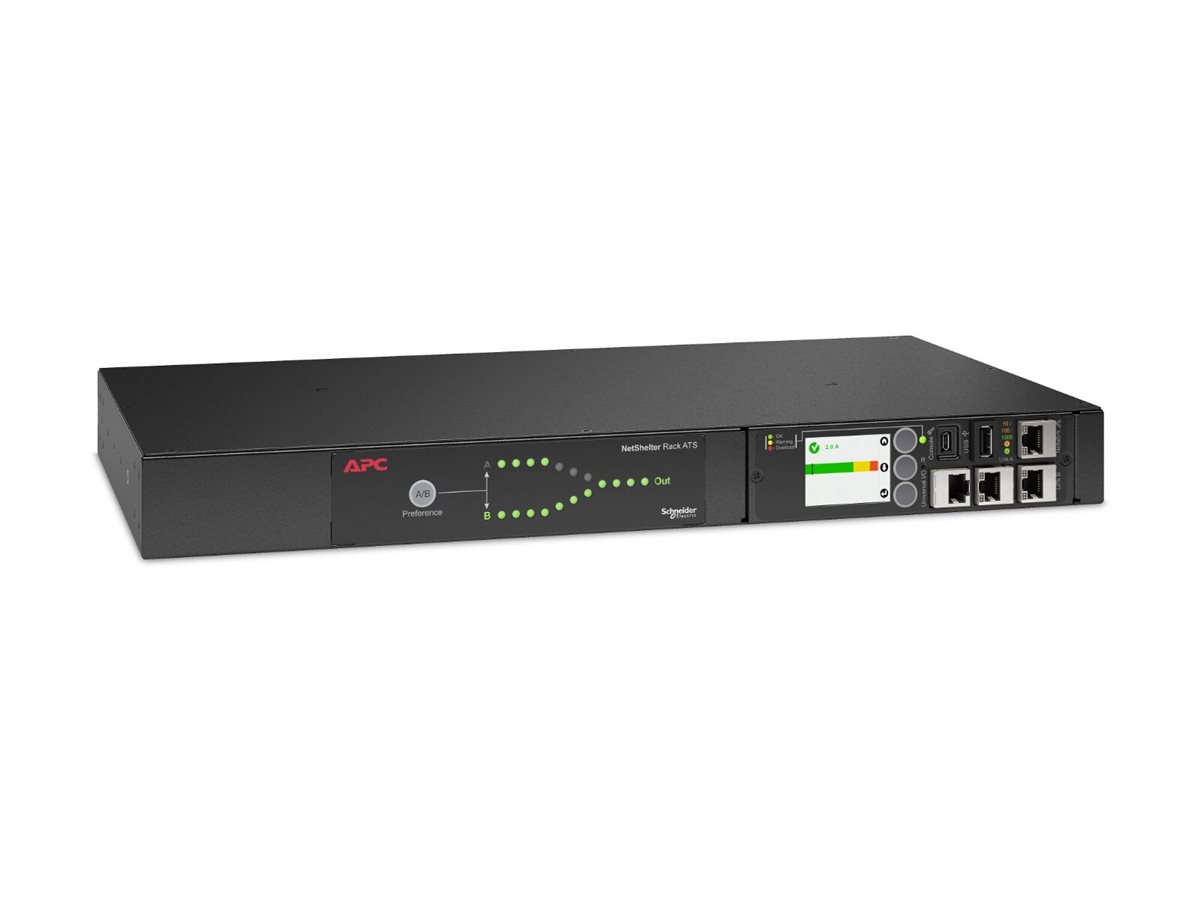

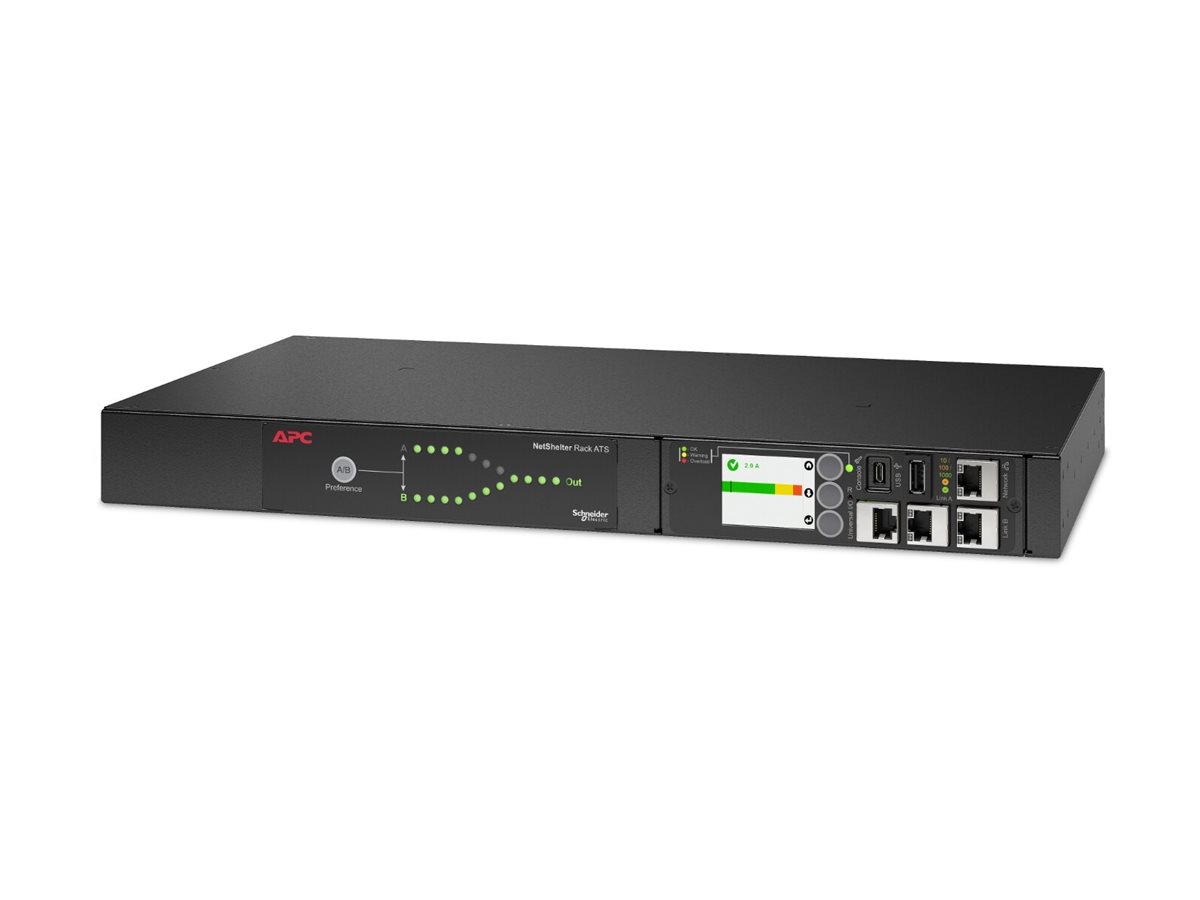

APC Netshelter Rack Automatic Transfer Switch AP4433A
MSRP$2,420.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Netshelter Rack Automatic Transfer Switch AP4433A
- Redundant switch (rack-mountable)
- AC 208 V
- 3300 VA
- 1-phase
- Ethernet 10/100/1000, USB
- output connectors: 12
- 1U
- 2.43 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,420.00 |
| Mfr Part #: | AP4433A |
| SHI Part #: | 45393673 |
| Category: | Power adapters or inverters |
| UNSPSC: | 39121006 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Storage Networking (SAN)
- black
- for P/N: AP4421, AP4423, AP4424, AP4430, AP4432, AP4433, AP4434, AP4452, AP4452J, AP4453
MSRP $149.00
$108.00
- for P/N: AP4421, AP4423, AP4424, AP4430, AP4432, AP4433, AP4434, AP4452, AP4452J, AP4453
MSRP $147.00
$106.00
| General Information | |
|---|---|
| Category | Power adapters or inverters |
| Description | APC Netshelter Rack Automatic Transfer Switch AP4433A - Redundant switch (rack-mountable) - AC 208 V - 3300 VA - 1-phase - Ethernet 10/100/1000, USB - output connectors: 12 - 1U - 2.43 m cord - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | $2,420.00 |
| UNSPSC | 39121006 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.6 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 3.74 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Power Capacity (VA) | 3300 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Redundant switch |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 23.6 cm |
| Height | 4.4 cm |
| Weight | 3.74 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 35.6 cm |
| Shipping Height | 11.4 cm |
| Shipping Weight | 5.51 kg |
| Shipping Width | 60 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 2.43 m |
| Device Type | Redundant switch - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | EN 55022 Class A, FCC Part 15 A, REACH, EU RoHS, China RoHS, WEEE |
| Features | Box package, horizontal orientation, LED indicators, LCD display, temperature sensor, humidity monitoring |
| Included Accessories | Mounting kit, rack mounting brackets |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP, CLI |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power IEC 60320 C14 |
| Input Voltage | AC 208 V |
| Input Voltage Margin | ± 10% |
| Input Wiring | 1-phase |
| Max Electric Current | 12 A |
| Output Voltage | AC 208 V |
| Power Capacity | 3300 VA |
| Power Output Connectors Details | 12 x power IEC 60320 C13 12 A |
