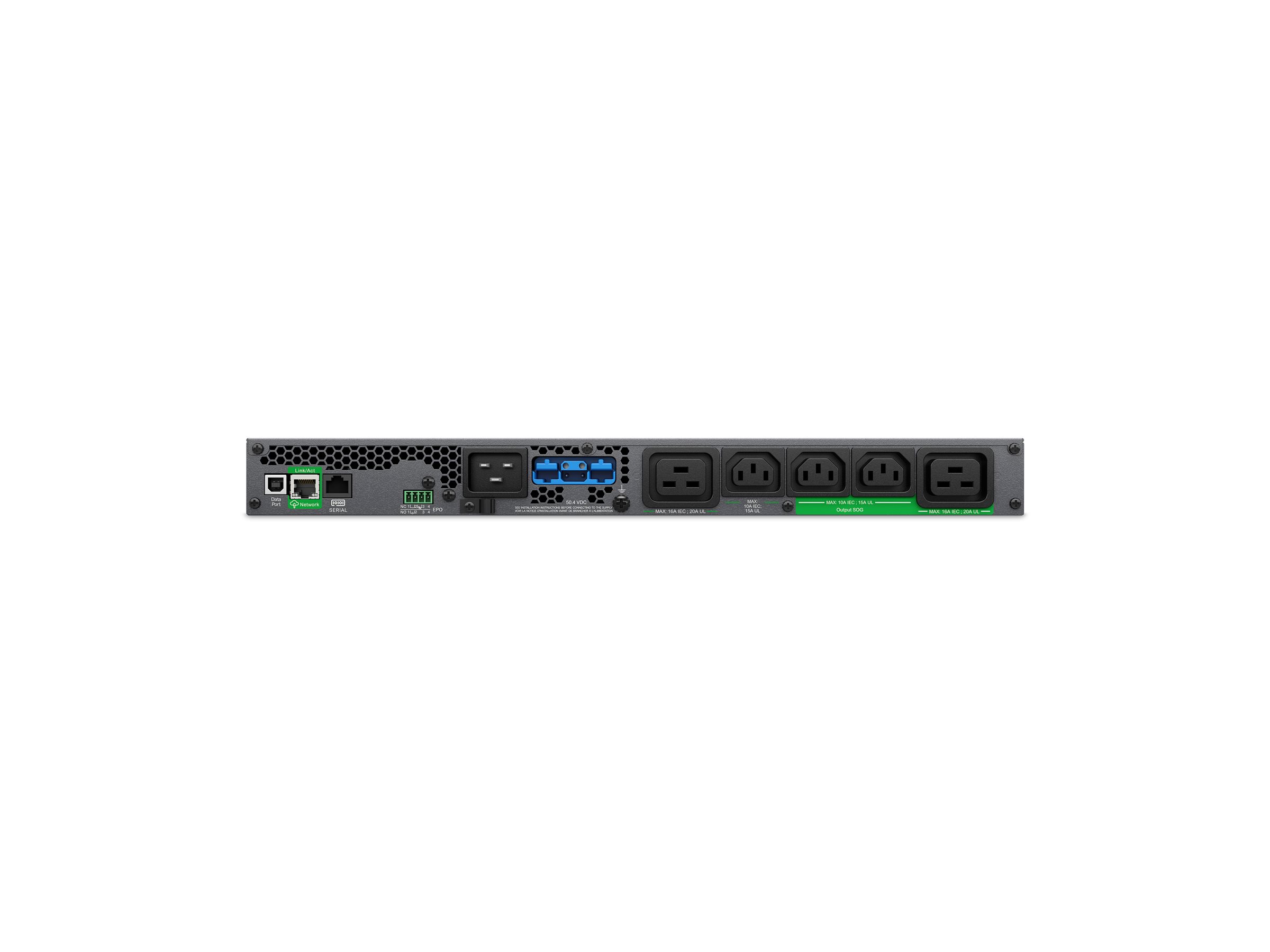

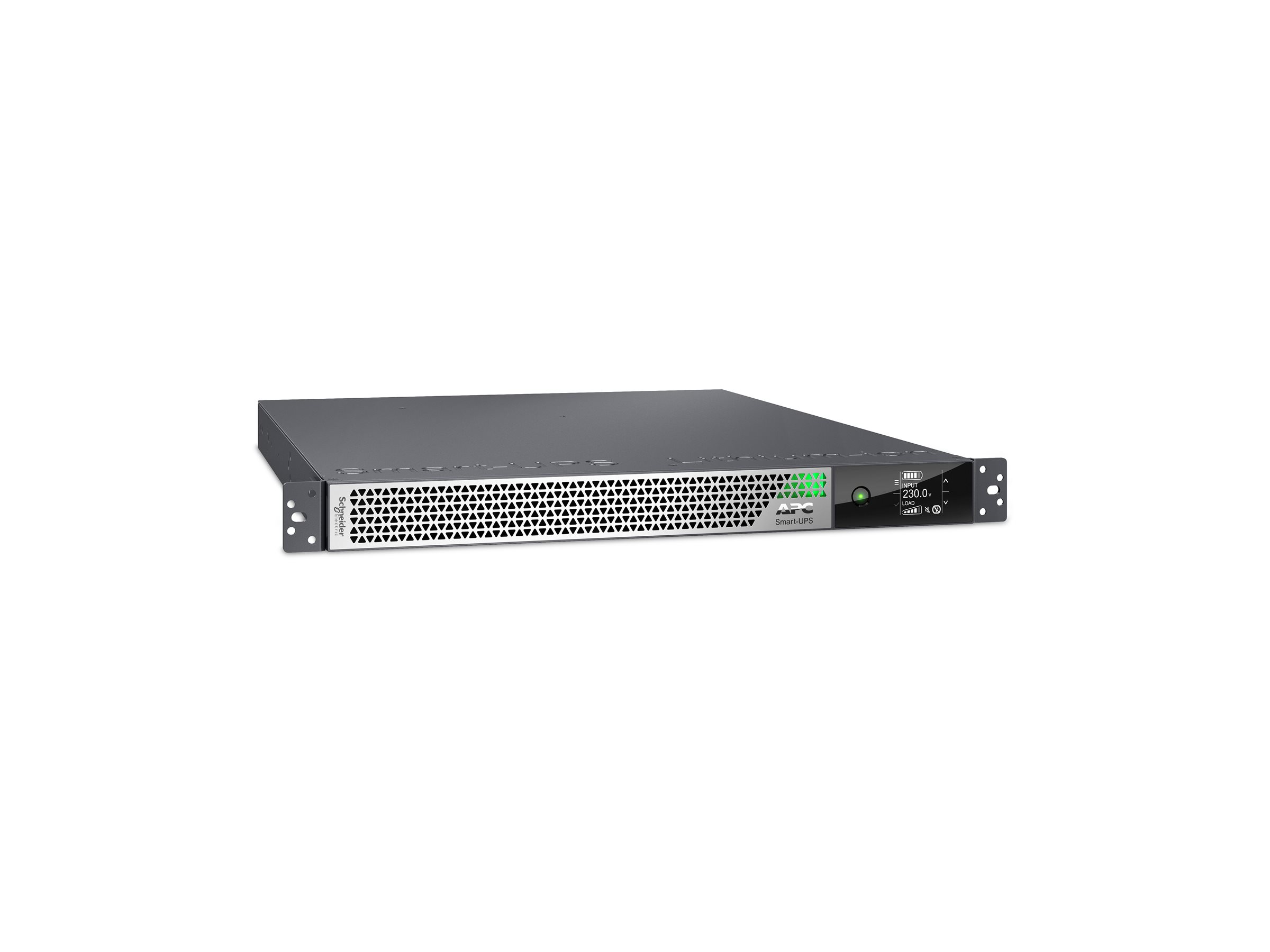

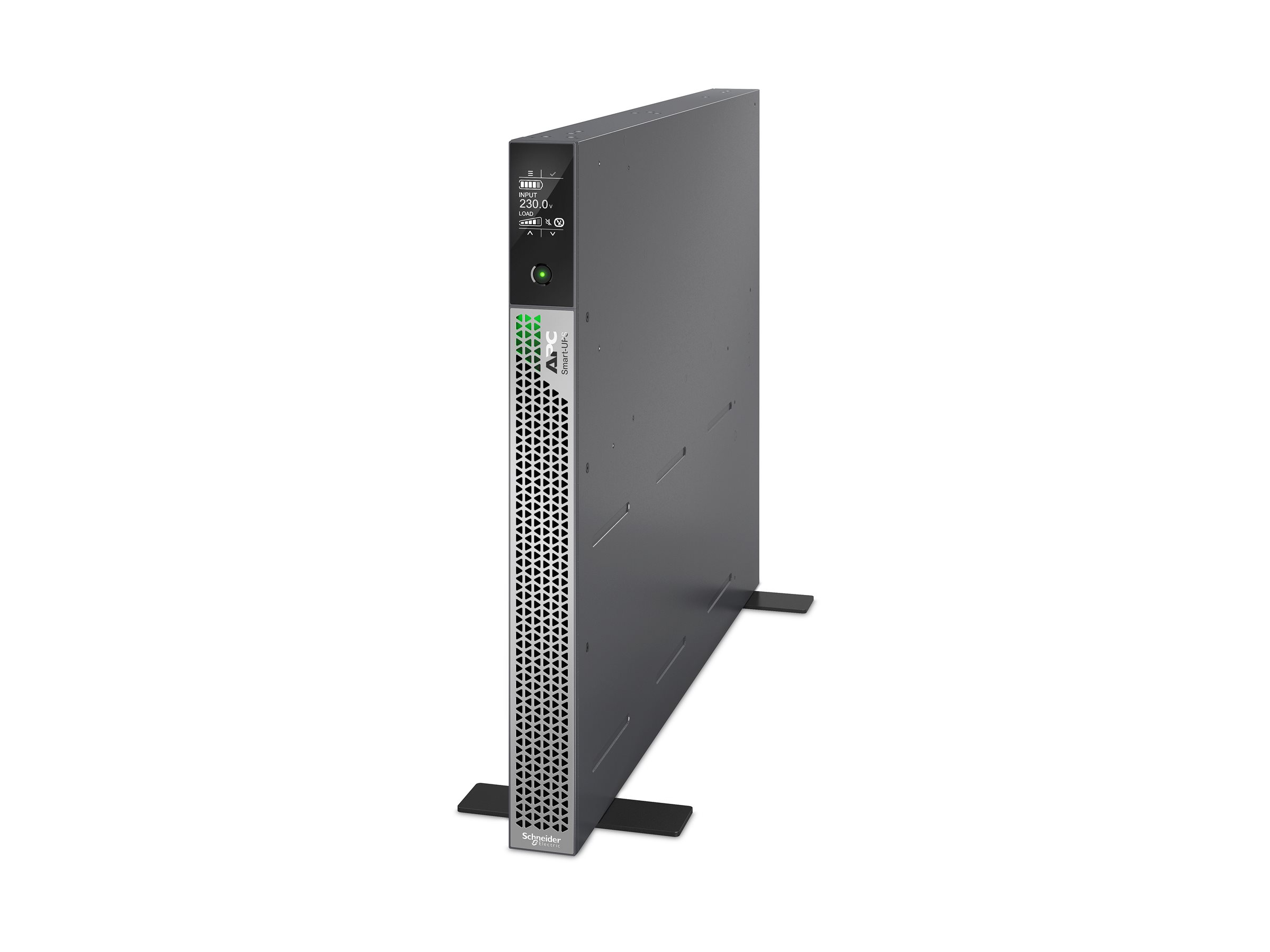

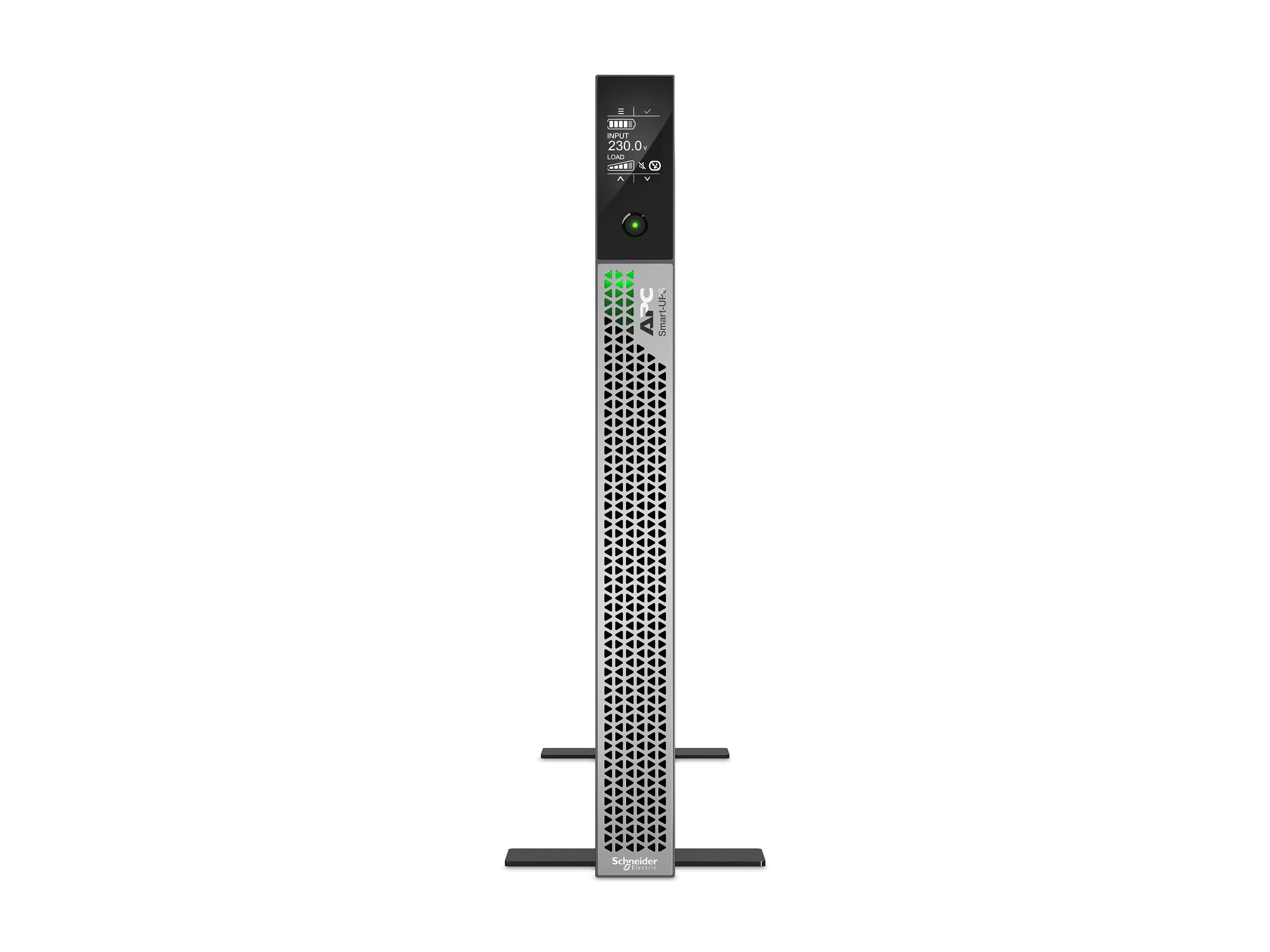

APC Smart-UPS Ultra - UPS (rack-mountable / external)
MSRP$11,100.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Smart-UPS Ultra - UPS (rack-mountable / external)
- on-line, lithium-ion, tower, 3 x C13, 2 x C19 iec outlets, network card, extended runtime, with rail kit
- AC 208/240 V
- 3000 Watt
- 3000 VA
- 1-phase
- Ethernet, USB
- output connectors: 5
- 1U
- 2.4 m cord
- silver gray
- for P/N: SRTL50RMBP1U-LI
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $11,100.00 |
| Mfr Part #: | SRTL3KRM1UWNC |
| SHI Part #: | 46506370 |
| Category: | Business software |
| UNSPSC: | 43231500 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Business software |
| Description | APC Smart-UPS Ultra - UPS (rack-mountable / external) - on-line, lithium-ion, tower, 3 x C13, 2 x C19 iec outlets, network card, extended runtime, with rail kit - AC 208/240 V - 3000 Watt - 3000 VA - 1-phase - Ethernet, USB - output connectors: 5 - 1U - 2.4 m cord - silver gray - for P/N: SRTL50RMBP1U-LI |
| Manufacturer | APC by Schneider Electric |
| MSRP | $11,100.00 |
| UNSPSC | 43231500 |
| Main Specifications | |
| Dimensions & Weight / Depth | 56 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 15.9 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Gray |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 5 |
| Power Device / Power Capacity (VA) | 3000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 208/240 V |
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Quantity | 1 |
| Technology | Lithium ion |
| Type | Expandable |
| Compatibility Information | |
| Designed For | P/N: SRTL50RMBP1U-LI |
| Dimensions & Weight | |
| Depth | 56 cm |
| Height | 4.3 cm |
| Weight | 15.9 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 76.4 cm |
| Shipping Height | 27.8 cm |
| Shipping Weight | 24.2 kg |
| Shipping Width | 56.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dB |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Silver gray |
| Cord Length | 2.4 m |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 5 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | REACH, IP20, EU RoHS, IEC/EN 62040-1 |
| Features | Rack/tower convertible, audible alarm, emergency power off, LCD display, internal bypass, visible alarm, integrated network management, extended runtime |
| Included Accessories | Network management card, rail kit |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet, USB |
| Power Device | |
| Efficiency | 93% at 100% Load |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power BS 1363A |
| Input Voltage | AC 208/240 V |
| Input Voltage Range | AC 160 - 275 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 208/240 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 3000 Watt / 3000 VA |
| Power Output Connectors Details |
|
| UPS Technology | On-line |
