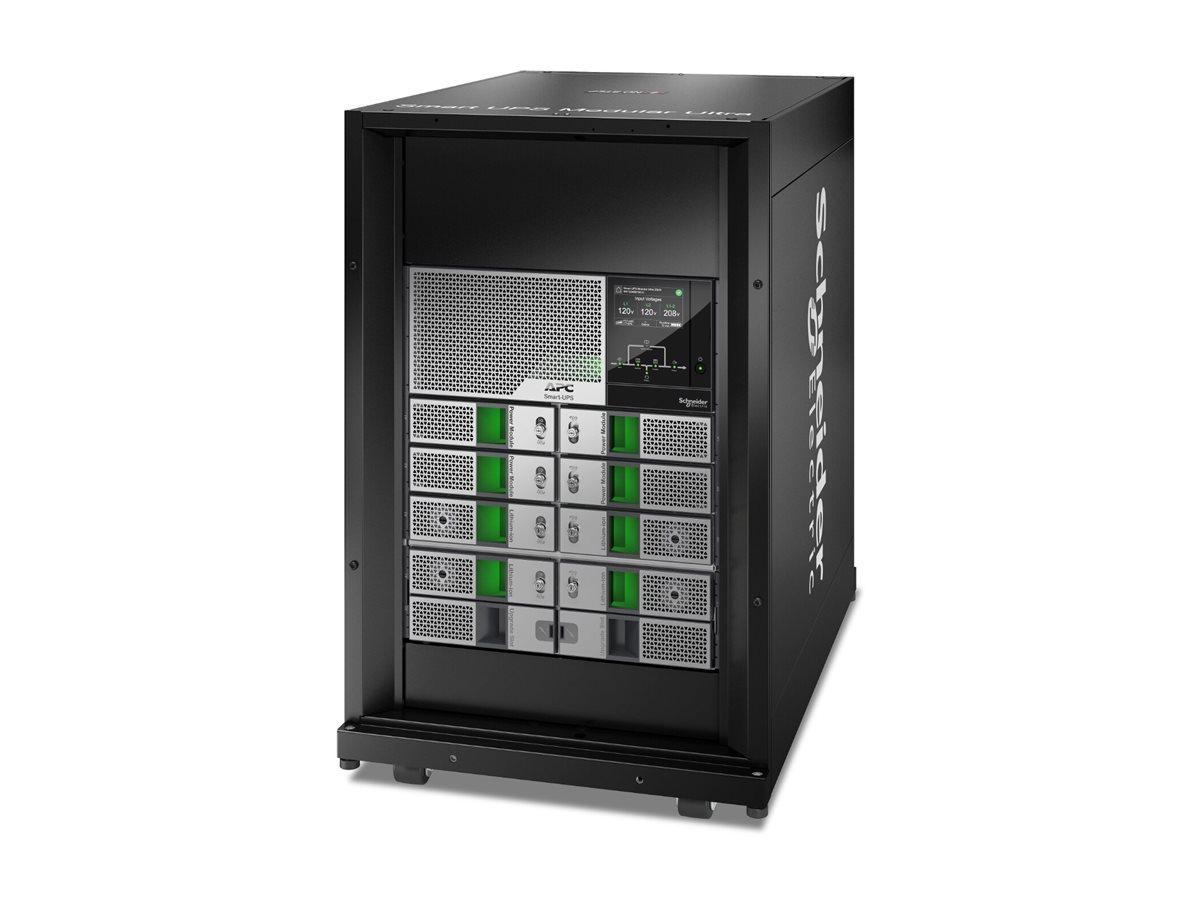

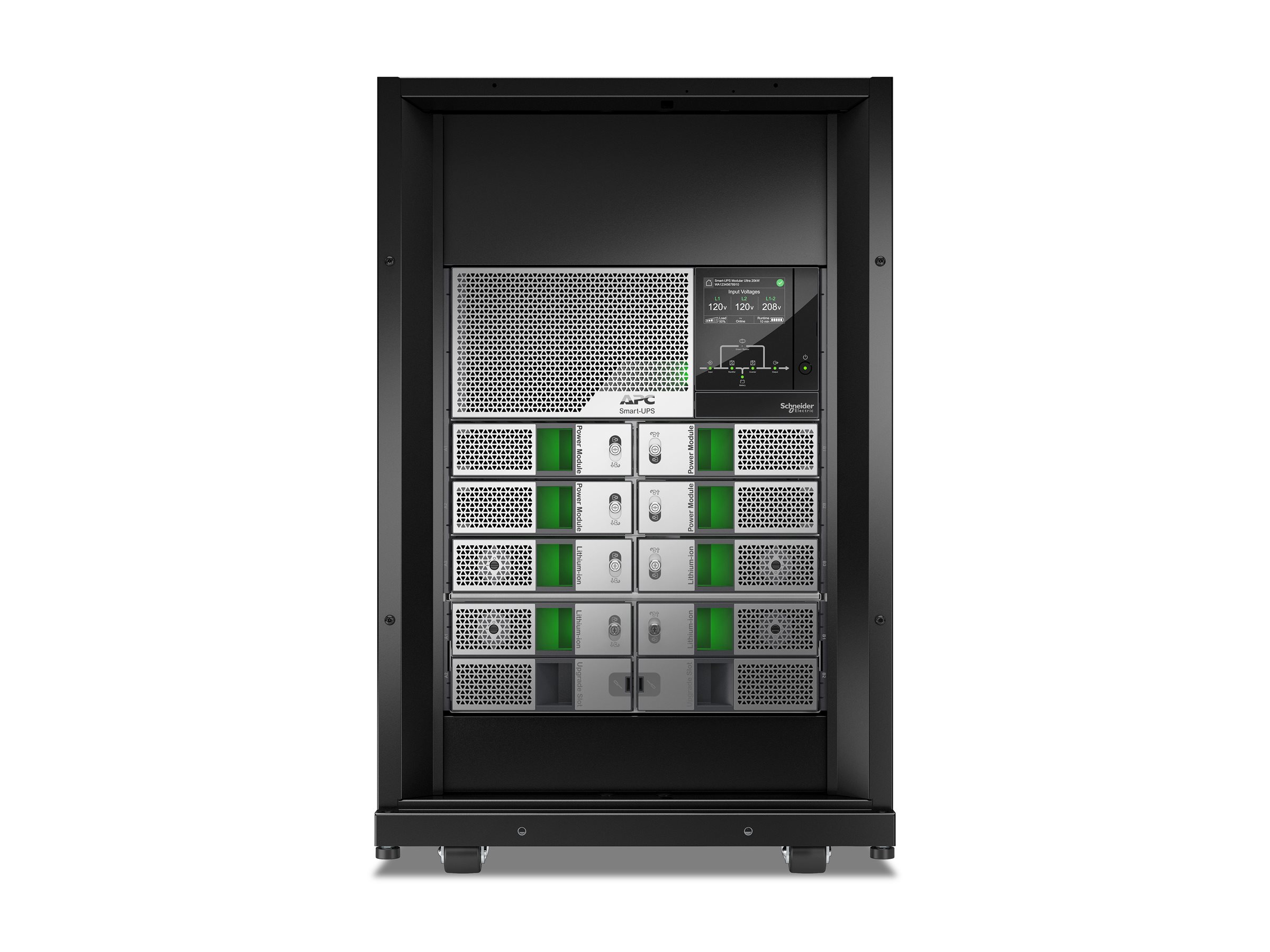

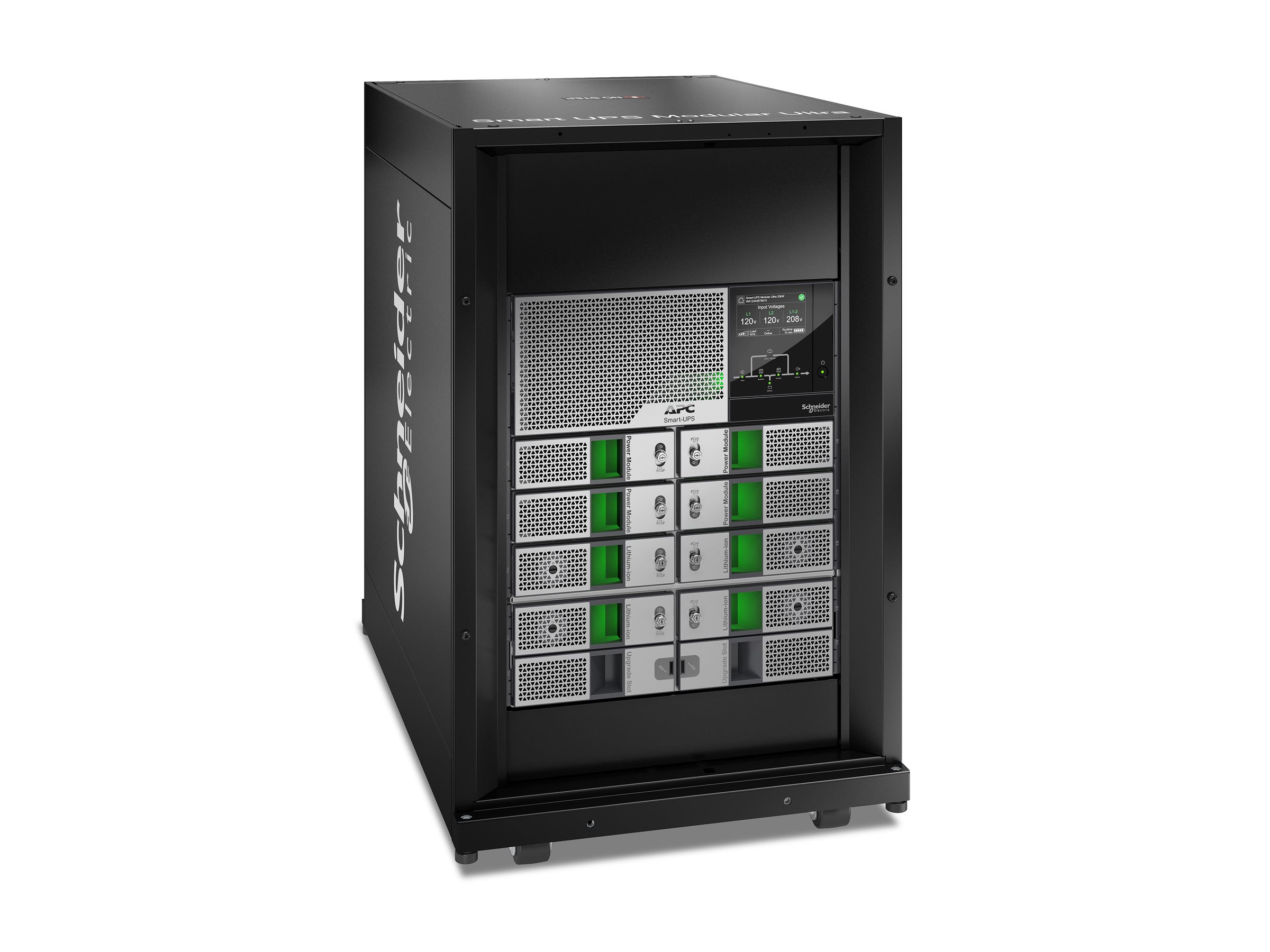

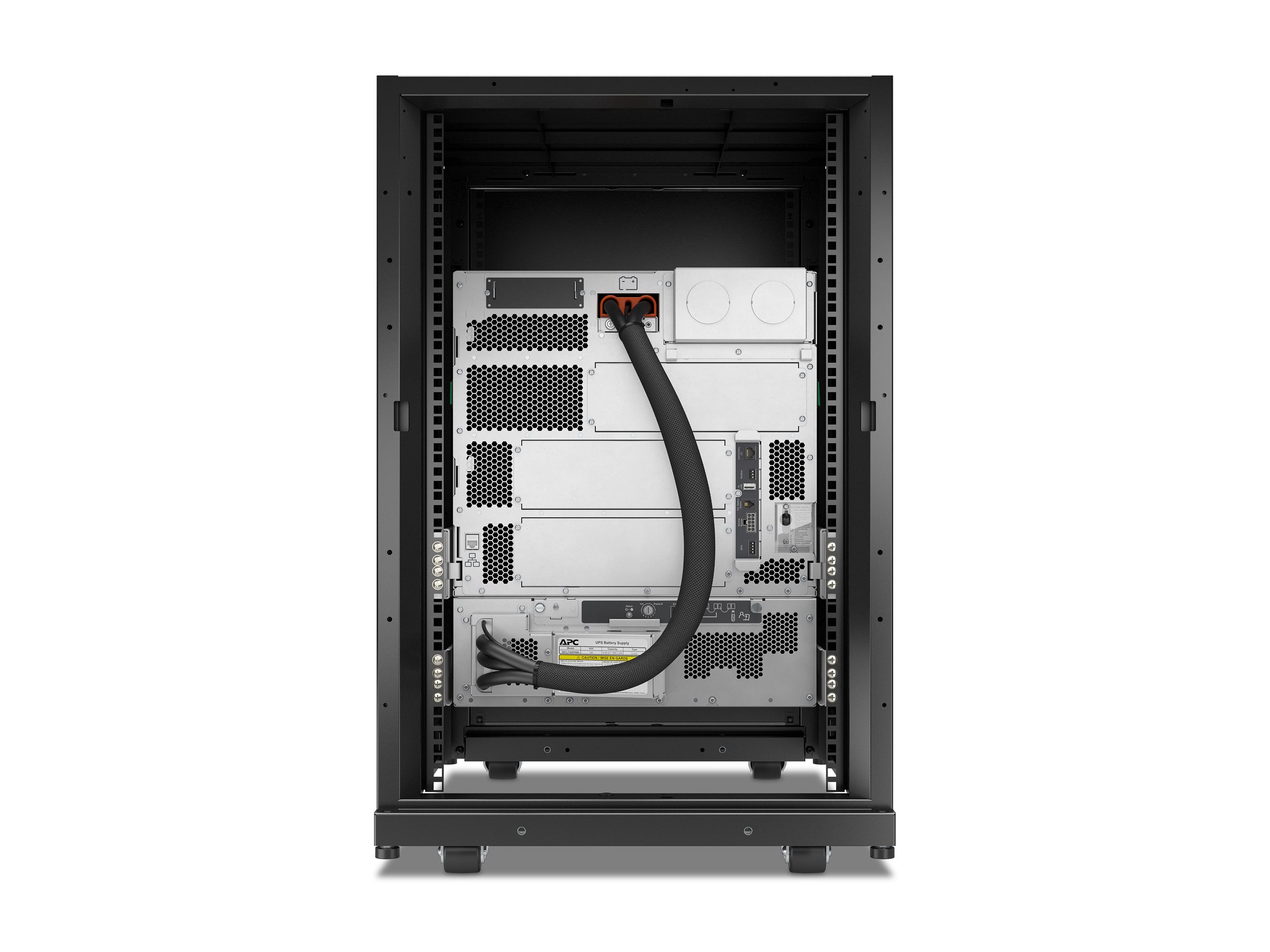

APC Smart-UPS Modular Ultra
MSRP$74,985.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Smart-UPS Modular Ultra
- UPS (rack-mountable)
- 208/240V, network management card, on-line, touchscreen, tower, scalable to 20kW N+1 redundant
- AC 120/208/240 V
- 20 kW
- 20000 VA
- 1-phase
- 18U
- black, silver
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $74,985.00 |
| Mfr Part #: | SRYL20K20XLT18 |
| SHI Part #: | 47351069 |
| Category: | Business software |
| UNSPSC: | 43231500 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Business software |
| Description | APC Smart-UPS Modular Ultra - UPS (rack-mountable) - 208/240V, network management card, on-line, touchscreen, tower, scalable to 20kW N+1 redundant - AC 120/208/240 V - 20 kW - 20000 VA - 1-phase - 18U - black, silver |
| Manufacturer | APC by Schneider Electric |
| MSRP | $74,985.00 |
| UNSPSC | 43231500 |
| Main Specifications | |
| Dimensions & Weight / Depth | 90 cm |
| Dimensions & Weight / Height | 94.2 cm |
| Dimensions & Weight / Weight | 242.4 kg |
| Dimensions & Weight / Width | 60 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Power Capacity (VA) | 20000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required |
|
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Technology | Lithium ion |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 90 cm |
| Height | 94.2 cm |
| Weight | 242.4 kg |
| Width | 60 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 99.5 cm |
| Shipping Height | 106 cm |
| Shipping Weight | 264.76 kg |
| Shipping Width | 75 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 68 dB |
| General | |
| Color | Black, silver |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 18U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, REACH, China RoHS, EU RoHS, Mercury-free, Energy Star 2.0 |
| Features | Emergency power off, internal bypass, touch screen LCD display, double conversion, scalable to 20kW |
| Included Accessories | Network management card |
| Power Device | |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 4-wire (2PH+N+G) |
| Input Voltage | AC 120/208/240 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120/208/240 V |
| Output Waveform | Sinewave |
| Power Capacity | 20 kW / 20000 VA |
| Power Modules Qty | 4 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+1 |
| Supported Power Modules Qty | 4 |
| UPS Technology | On-line |
| Sustainability Information | |
| ENERGY STAR | Yes |
