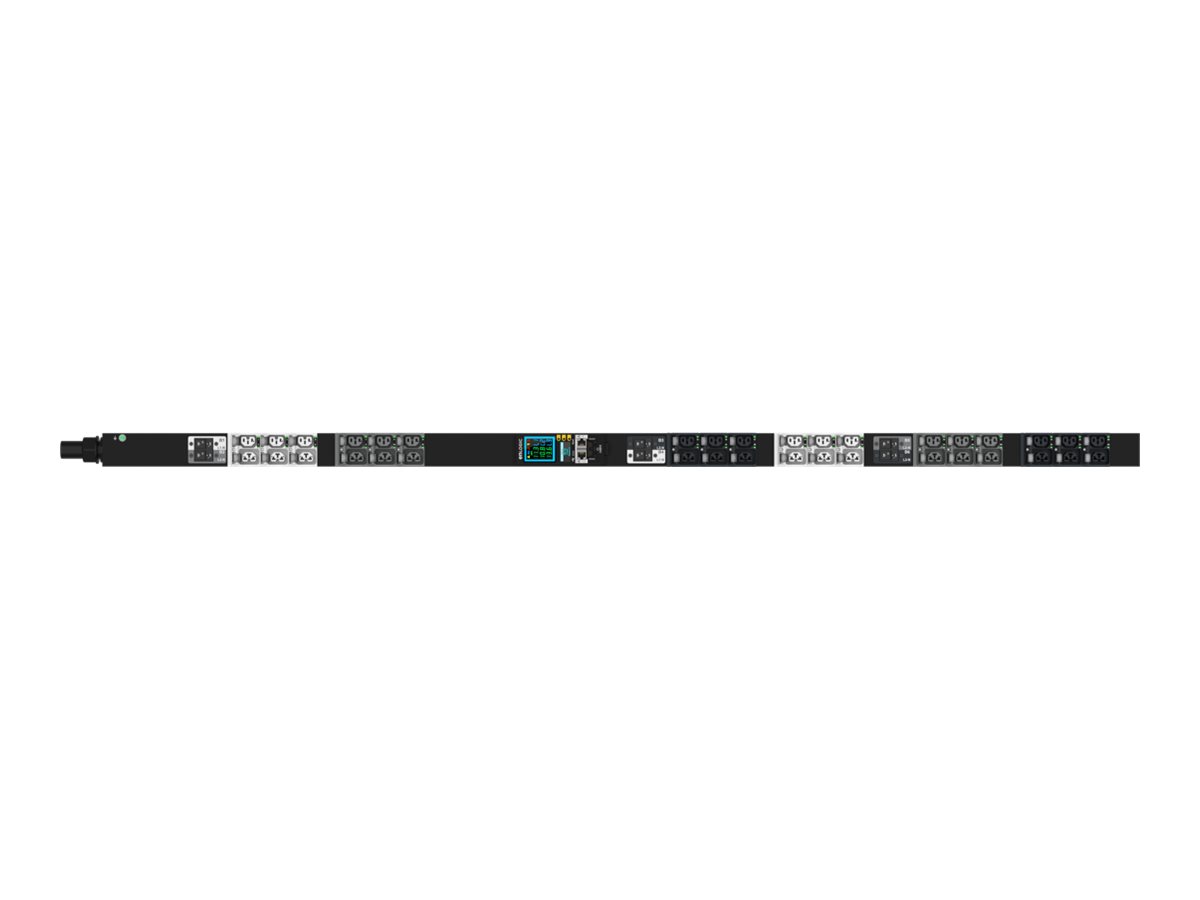

Lenovo - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Lenovo - Power distribution unit (rack-mountable)
- switched and monitored
- AC 200-240 V
- 3-phase
- Ethernet 10/100/1000
- input: IEC 60309 532P6 (18 x IEC 60320 C13/C15, 18 x IEC 60320 C13/C15/C19)
- 0U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 4PU7A93180 |
| SHI Part #: | 48603807 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Lenovo - Power distribution unit (rack-mountable) - switched and monitored - AC 200-240 V - 3-phase - Ethernet 10/100/1000 - input: IEC 60309 532P6 (18 x IEC 60320 C13/C15, 18 x IEC 60320 C13/C15/C19) - 0U |
| Manufacturer | Lenovo |
| MSRP | $7,779.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.5 cm |
| Dimensions & Weight / Height | 172 cm |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | Lenovo |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Power Capacity (VA) | 17300 VA |
| Power Device / Voltage Required | AC 200-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 7.5 cm |
| Height | 172 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 3 m |
| Compliant Standards | RoHS, REACH |
| Features | LED display, color-coded, alarm, Interchangeable Monitoring Device (IMD) module |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, IPv4, IPv6, LDAP, RADIUS, SSH, JSON-RPC |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50 - 60 Hz |
| Input Connectors | 1 x power IEC 60309 532P6 |
| Input Voltage | AC 200-240 V |
| Input Wiring | 3-phase |
| Max Electric Current | 32 A |
| Output Voltage | 50 - 60 Hz |
| Power Output Connectors Details |
|
