ASRock Rack B650D4U3-2L2Q/BCM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

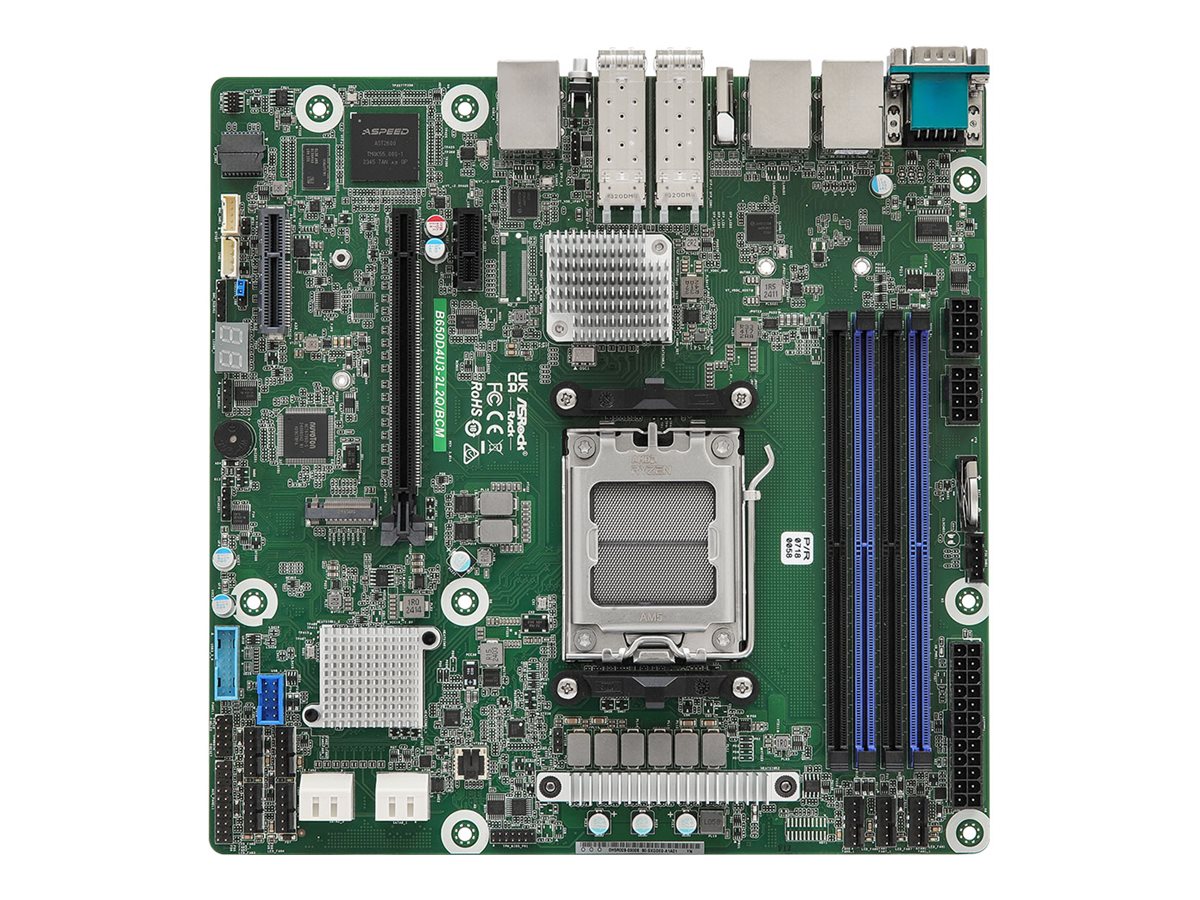

ASRock Rack B650D4U3-2L2Q/BCM
- Motherboard
- micro ATX
- Socket AM5
- AMD B650E Chipset
- USB 3.2 Gen 1
- 2 x 25 Gigabit LAN, 2 x Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | B650D4U3-2L2Q/BCM |
| SHI Part #: | 48732379 |
| Category: | Business software |
| UNSPSC: | 43231500 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Business software |
| Description | ASRock Rack B650D4U3-2L2Q/BCM - Motherboard - micro ATX - Socket AM5 - AMD B650E Chipset - USB 3.2 Gen 1 - 2 x 25 Gigabit LAN, 2 x Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| UNSPSC | 43231500 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | AMD B650E |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM5 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2600 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, ACPI 6.4 support, SMBIOS 3.5 support, IPMI support |
| BIOS Type | AMI |
| Hardware Features | Chassis intrusion detection, diagnostic LEDs |
| Hardware Monitoring | CPU core temperature, fan control, system voltage |
| General | |
| Chipset Type | AMD B650E |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - micro ATX |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| LAN | |
| Network Controller | Broadcom BCM57502 / Intel I210 |
| Network Interfaces | 2 x 25 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Depth | 24.4 cm |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 3600 MHz, 5600 MHz |
| Max Size | 192 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR5 |
