Axiom C530N Series - SSD
MSRP$408.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

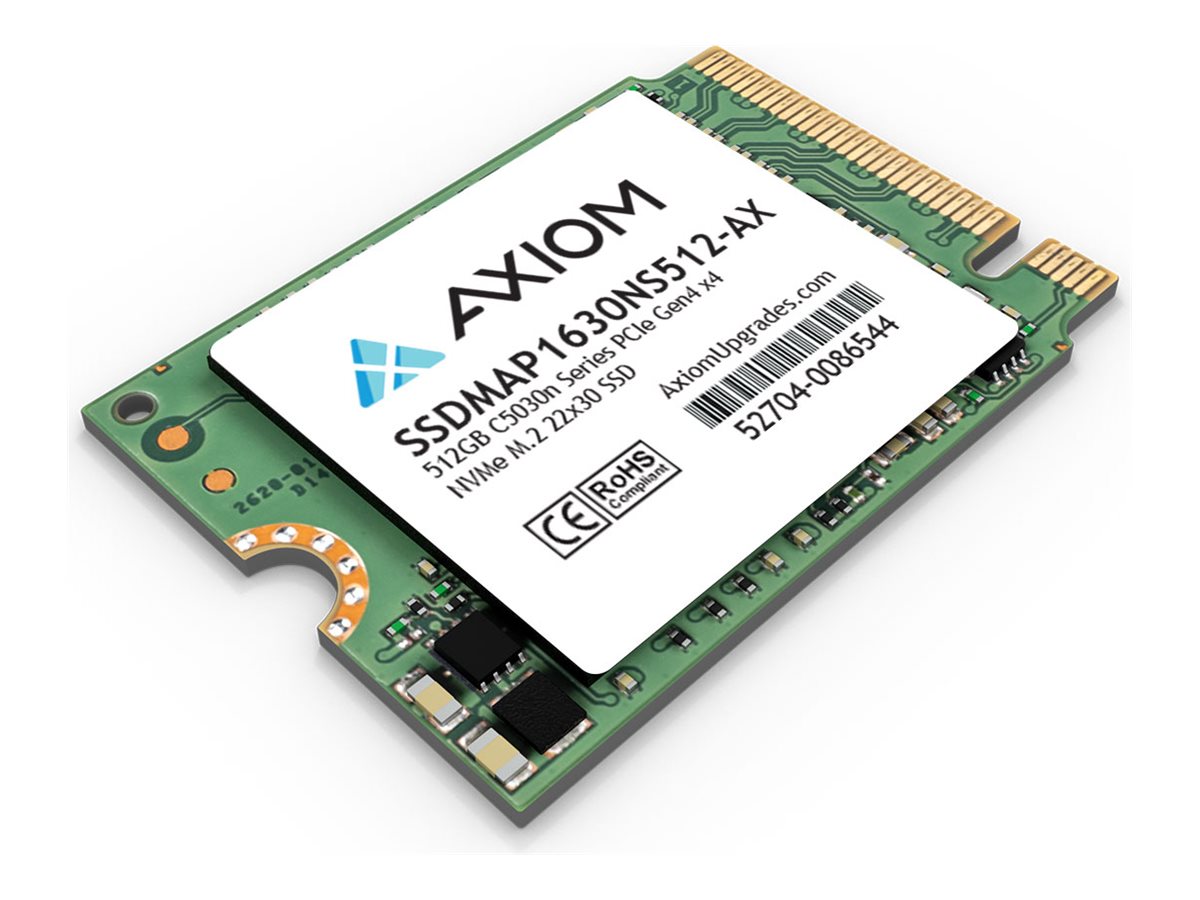

Axiom C530N Series - SSD
- 512 GB
- internal
- M.2 2230
- PCIe 4.0 x4 (NVMe)
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $408.00 |
| Mfr Part #: | SSDMAP1630NS512-AX |
| SHI Part #: | 48962249 |
| Category: | Solid state drive SSD |
| UNSPSC: | 43201830 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Solid state drive SSD |
| Description | Axiom C530N Series - SSD - 512 GB - internal - M.2 2230 - PCIe 4.0 x4 (NVMe) - TAA Compliant |
| Manufacturer | Axiom Memory |
| MSRP | $408.00 |
| UNSPSC | 43201830 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30 mm |
| Dimensions & Weight / Weight | 6.8 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Form Factor | M.2 2230 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2230 |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| General | |
| Bytes per Sector | 512 |
| Capacity | 512 GB |
| Depth | 30 mm |
| Device Type | Solid state drive - internal |
| Features | Maxio MAP1602 controller, Global Wear Leveling, StaticDataRefresh Technology, Garbage Collection technology, Host Memory Buffer (HMB), LDPC error correction, NVM Express (NVMe) 2.0, 3D NAND Technology, Dynamic and Static Wear Leveling, S.M.A.R.T. |
| Form Factor | M.2 2230 |
| Interface | PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | Single-level cell (SLC) |
| Weight | 6.8 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| TAA Compliant | Yes |
| Performance | |
| 4KB Random Read | 350000 IOPS |
| 4KB Random Write | 310000 IOPS |
| Drive Writes Per Day (DWPD) | 0.328 |
| Internal Data Rate | 4400 MBps (read) / 1800 MBps (write) |
| SSD Endurance | 180 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
