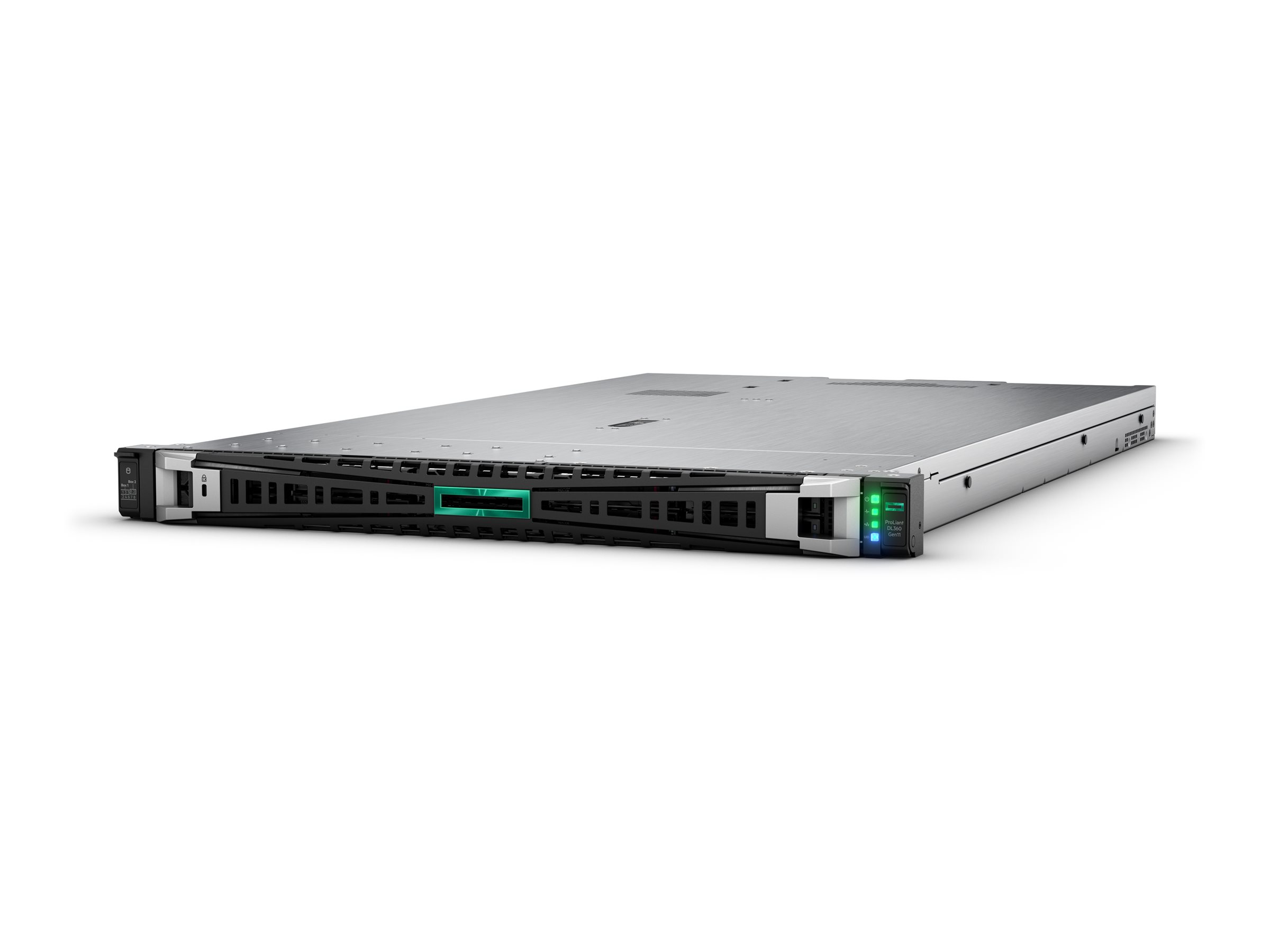

HPE ProLiant DL360 Gen11
MSRP$12,921.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL360 Gen11
- Server
- rack-mountable 1U
- 2-way
- 1 x Xeon Gold 5515+ / up to 4.1 GHz
- RAM 64 GB
- SATA/SAS/NVMe
- hot-swap 2.5" bay(s)
- SSD 2 x 480 GB
- Gigabit Ethernet, 10 Gigabit Ethernet
- no OS
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $12,921.00 |
| Mfr Part #: | P83287-005 |
| SHI Part #: | 50381550 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL360 Gen11 - Server - rack-mountable 1U - 2-way - 1 x Xeon Gold 5515+ / up to 4.1 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $12,921.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/SAS/NVMe |
| Dimensions & Weight / Depth | 75.31 cm |
| Dimensions & Weight / Height | 4.29 cm |
| Dimensions & Weight / Weight | 14.56 kg |
| Dimensions & Weight / Width | 43.46 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 480 GB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | HPE |
| Header / Country Kits | North America |
| Mainboard / Chipset Type | Intel C741 |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.2 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | 5515+ |
| Processor / Type | Xeon Gold |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 960 GB |
| System / Type | Server |
| Cache Memory | |
| Cache Per Processor | 22.5 MB |
| Installed Size | L3 cache - 22.5 MB |
| Dimensions & Weight | |
| Depth | 75.31 cm |
| Height | 4.29 cm |
| Weight | 14.56 kg |
| Width | 43.46 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Capacity | 2 x 480 GB |
| Features | HPE Multi Vendor, Read Intensive |
| Interface Type | SATA 6Gb/s |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | ASHRAE Class A3, ASHRAE Class A4, TLS v1.2, AES, FIPS 140-2, IPv6 Ready, PCI DSS, WEEE 2002/95/EC, ACPI 6.4, Active Directory v1.0, Redfish API, SMBIOS 3.4, Triple DES |
| Included Accessories | 5 x standard fans |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Operating System / Software | |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware vSphere 7.0 (ESXi) Update 3, VMware vSphere 8.0 (ESXi) Update 1, VMware vSphere 8.0 (ESXi) Update 2, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP5 QU1, SUSE Linux Enterprise Micro 5.5, Canonical Ubuntu 20.04.5 LTS, Canonical Ubuntu 22.04 LTS, Oracle Linux 9 |
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Server UEFI |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Titanium |
| Device Type | Power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1000 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Processor / Chipset | |
| Chipset Type | Intel C741 |
| Clock Speed | 3.2 GHz |
| CPU | Intel Xeon Gold 5515+ |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 8-core |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, 165W TDP |
| RAM | |
| Configuration Features | 2 x 32 GB |
| Effective Memory Speed | 4400 MT/s |
| Features | HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only |
| Form Factor | DIMM 288-pin |
| Installed Size | 64 GB (installed) / 8 TB (max) |
| Rated Memory Speed | 5600 MT/s |
| Slots | 32 (total) / 30 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Buffer Size | 4 GB |
| Channel Qty | 8 |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Type | 1 x RAID - OCP |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
