Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

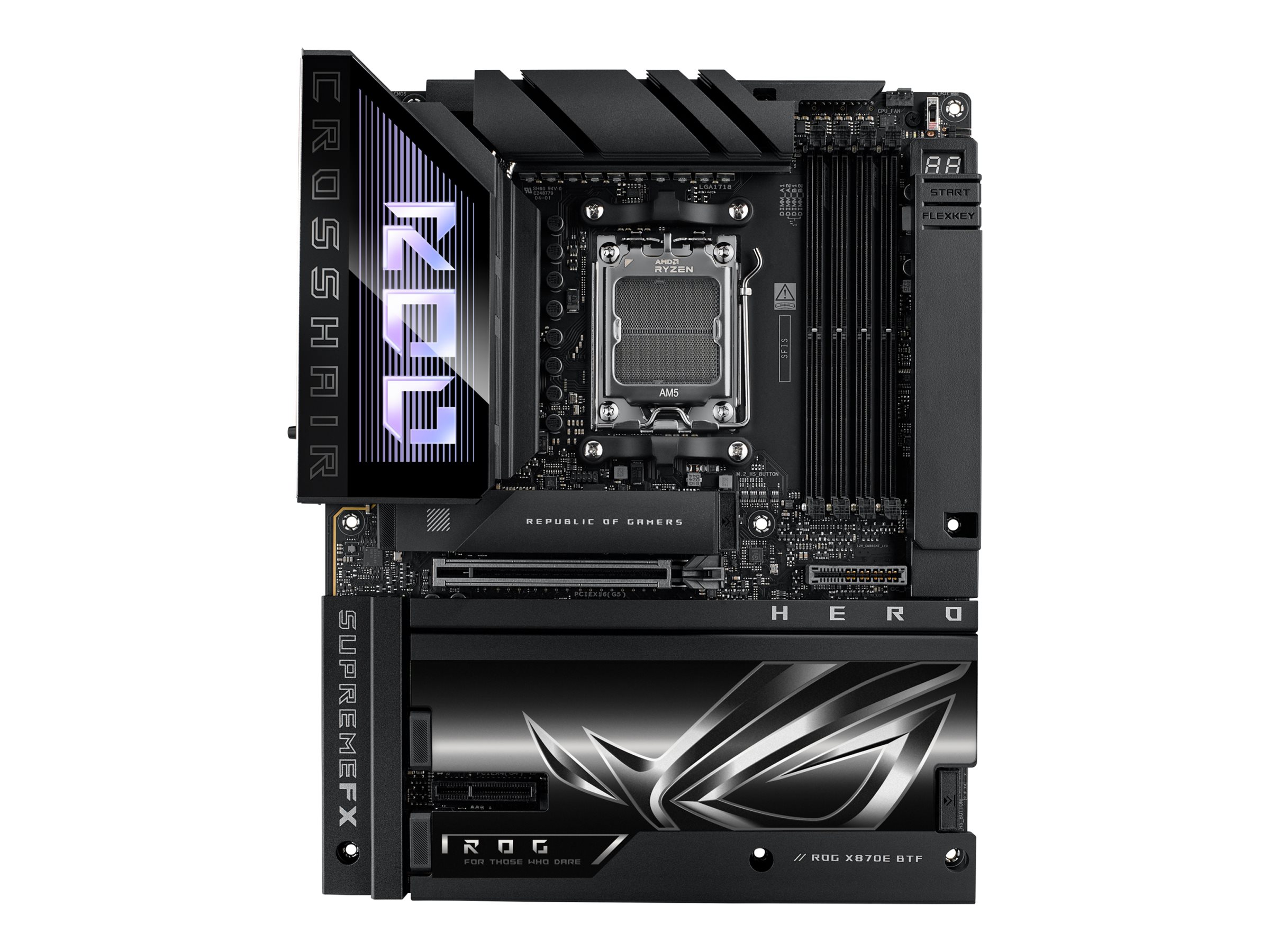

ASUS ROG CROSSHAIR X870E HERO BTF

$965.00
ASUS ROG CROSSHAIR X870E HERO BTF
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB4, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2
ASUS ROG CROSSHAIR X870E HERO BTF
  • Motherboard
  • ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB4, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2
  • 5 Gigabit Ethernet, 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $965.00
Mfr Part #: ROG CROSSHAIR X870E HERO BTF
SHI Part #: 50599814
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG CROSSHAIR X870E HERO BTF - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - 5 Gigabit Ethernet, 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$849.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD X870E
Mainboard / Processor SocketSocket AM5
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX ALC4082 / ESS ES9219
Compliant StandardsHigh Definition Audio, Dolby Atmos
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x4
  • 4 x M.2 socket (2242/2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (2280 M.2 Key M slot)
Interfaces
  • 2 x Thunderbolt 4
  • 2 x USB-C 3.2 Gen 2
  • 6 x USB 3.2 Gen 2
  • 1 x HDMI
  • 2 x antenna
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x LAN (5Gigabit Ethernet)
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x SPDIF out
Internal Interfaces
  • 2 x USB-C 3.2 Gen 2x2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 4 x USB 2.0 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors, 12V-2X6 power connector, 8-pin PCI Express power connector
RAID FeaturesAMD RAID Xpert2 Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware Features18+2+2 Phase Power Design, CrashFree BIOS 3, ASUS Enhanced Memory Profile (AEMP), Preboot eXecution Environment (PXE), Clear CMOS Button, BIOS FlashBack button, Polymo Lighting II, AI Cooling II, FlexKey button, Start button, ASUS Extreme Engine Digi+, 10K Black Metallic Capacitors, MicroFine Alloy Chokes, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim, Q-Antenna, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, ASUS SafeSlot, M.2 heatsink, M.2 heatsink backplate, metal backplate, pre-mounted I/O shield, Q-Code, Q-Connector, Q-Dashboard, Q-LED, Q-Slot, VRM heatsink design, Advanced BTF design, AMD Precision Boost Overdrive (PBO), chipset heatsink, AI Networking II, AI Overclocking, aluminum heatsink design, ASUS Asynchronous Clock, Core Flex technology
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeAMD X870E
Compatible Processors(supports Ryzen 7000/8000/9000 Series)
Max Processors Qty1
Processor SocketSocket AM5
Product TypeMotherboard - ATX
LAN
Network Interfaces5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Miscellaneous
Cables Included4 x Serial ATA cable
Depth24.4 cm
Included AccessoriesARGB RGB extension cable, ASUS Wi-Fi Q-antenna, Q-Connector, 2 x M.2 Q-Latch, 3 x M.2 Q-Slide, 5 x M.2 rubber package, ROG stickers, ROG thank you card, ROG bottle opener, USB drive
Software IncludedROG CPU-Z, BullGuard Internet Security (1 year license), Armoury Crate, AIDA64 Extreme (1 year license), ASUS AURA Creator, ASUS Fan Xpert 4, ROG GameFirst Utility, HWiNFO, ASUS DriverHub, ASUS GlideX, TurboV Core, WinRAR (40 days trial), Adobe Creative Cloud (free trial)
Width30.5 cm
Supported RAM
Bus Clock8200 MT/s (O.C.), 8600 MT/s (O.C.), 8000 MT/s (O.C.)
FeaturesDual channel memory architecture, AMD EXPO technology
Max Size256 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, ECC, on-die ECC
TechnologyDDR5
