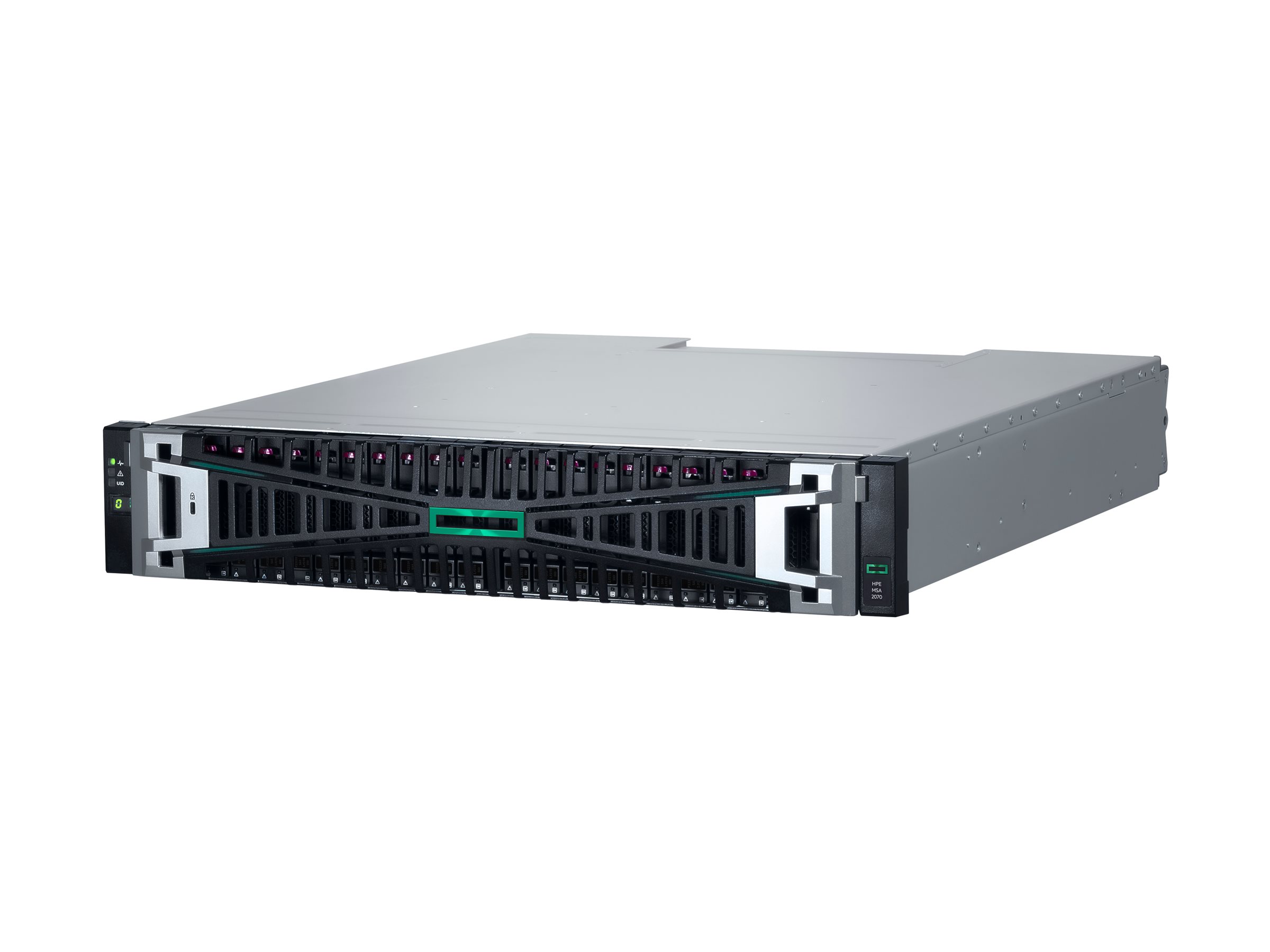

HPE MSA 2070 SFF ISCSI 4-PORT CNTRL SSD XCVR 46TB STRG PL-1O
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE MSA 2070 SFF ISCSI 4-PORT CNTRL SSD XCVR 46TB STRG PL-1O
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | P84179-B25 |
| SHI Part #: | 50612571 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | HPE - STORAGE |
| Product Type: | Hardware |
| Product Line: | HPE - Storage |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | HPE MSA 2070 SFF ISCSI 4-PORT CNTRL SSD XCVR 46TB STRG PL-1O |
| Manufacturer | HPE - STORAGE |
| MSRP | $67,206.00 |
| UNSPSC | 43201800 |
| Main Specifications | |
| Height | 0.00 |
| Length | 0.00 |
| Width | 0.00 |
| Chassis | |
| Installed Devices / Modules Qty | 12 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 8.9 cm |
| Width | 48.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | Up to 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 12 (free) - 2.5" SFF |
| Interfaces |
|
| General | |
| Bundled with | 4 x 25Gb iSCSI XCVR transceiver |
| Device Type | Solid state / hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Hard Drive | |
| Capacity | 12 x 3.84 TB |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Compliant Standards | ASHRAE Class A3, UL, CSA 62368-1, EN 62368-1, EU Lot 9, VCCI Class A, FCC Class A certified, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, RoHS, China RoHS, WEEE |
| Features | SMTP support, SNMP support |
| Included Accessories | Rack mounting kit, 2 x PDU cords (IEC C14) |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 580 watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Processor | |
| CPU | No CPU |
| Storage | |
| HDD Array External Interface | iSCSI (10 GbE), iSCSI (25 GbE) |
| Max Supported Capacity | 737.28 TB |
| Total Array Capacity | 46 TB |
| Storage Controller | |
| Data Transfer Rate | 1.2 GBps |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Type | RAID (iSCSI) |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| System Requirements | |
| OS Required | Microsoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix XenServer |
