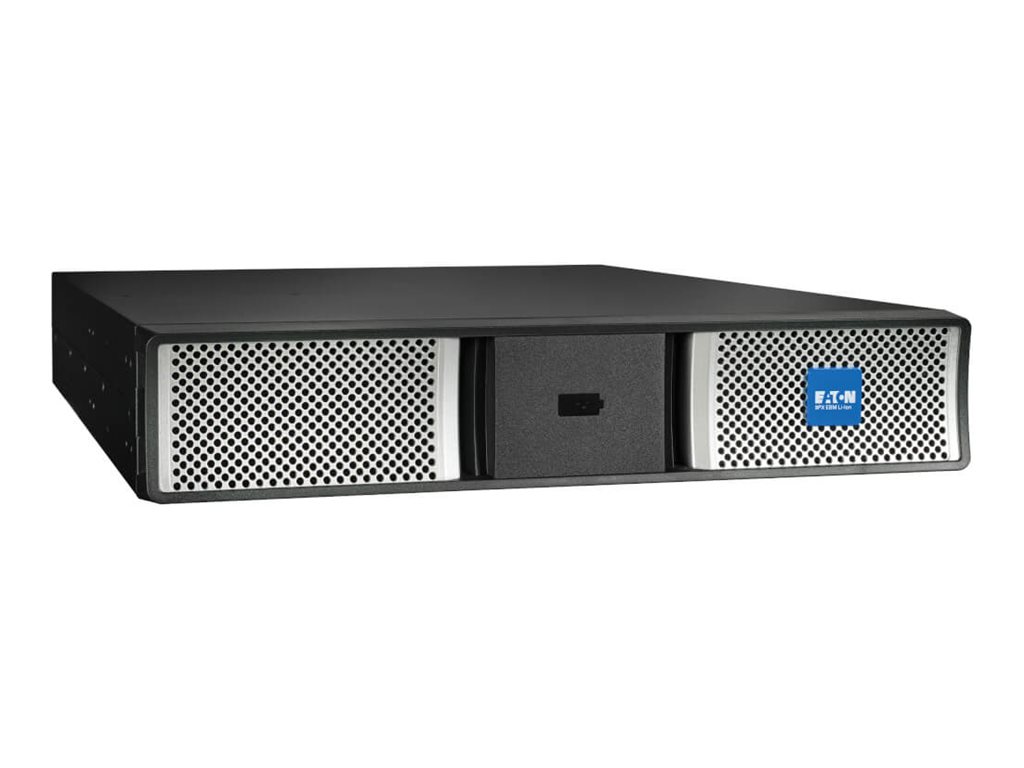

Eaton 9PX - Battery enclosure (rack-mountable / external)
MSRP$7,516.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton 9PX - Battery enclosure (rack-mountable / external)
- 192V
- lithium ion
- 12 Ah
- 2304 Wh
- 2U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $7,516.00 |
| Mfr Part #: | 9PXEBM192RTG2-L |
| SHI Part #: | 51078779 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Eaton 9PX - Battery enclosure (rack-mountable / external) - 192V - lithium ion - 12 Ah - 2304 Wh - 2U |
| Manufacturer | Eaton |
| MSRP | $7,516.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 64.5 cm |
| Dimensions & Weight / Height | 8.53 cm |
| Dimensions & Weight / Weight | 34.9 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | Eaton |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / UPS Technology | On-line |
| Product Type | Battery enclosure |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Capacity | 12 Ah - 2304 Wh |
| Features | Hot-swappable |
| Technology | Lithium ion |
| Voltage Provided | 192 V |
| Dimensions & Weight | |
| Depth | 64.5 cm |
| Height | 8.53 cm |
| Weight | 34.9 kg |
| Width | 43.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 96% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Power cable 30 cm |
| Compliant Standards | RoHS, cUL, EN 62040-2, FCC (USA), Mexico NOM |
| Features | Single-phase, daisy chaining support, Battery Management System (BMS), Enhanced Battery Management (EBM) |
| Rack Mounting Kit | Included |
| Power Device | |
| UPS Technology | On-line |
