Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

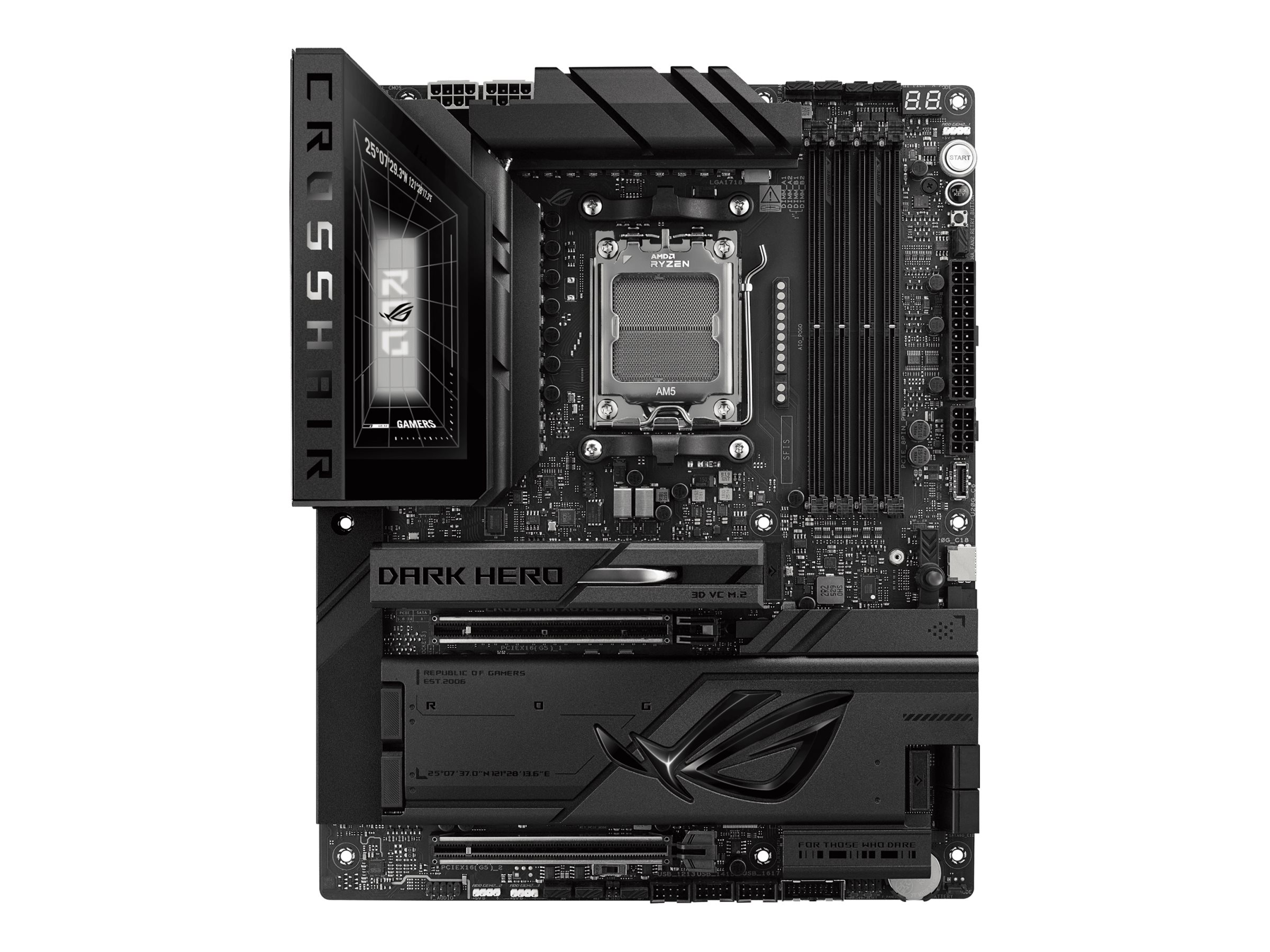

ASUS ROG CROSSHAIR X870E DARK HERO

$785.00
ASUS ROG CROSSHAIR X870E DARK HERO
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2
ASUS ROG CROSSHAIR X870E DARK HERO
  • Motherboard
  • ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2
  • 10 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $785.00
Mfr Part #: ROG CROSSHAIR X870E DARK HERO
SHI Part #: 51176841
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG CROSSHAIR X870E DARK HERO - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - 10 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$699.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD X870E
Mainboard / Processor SocketSocket AM5
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (ALC4082)
Compliant StandardsHigh Definition Audio, Dolby Atmos
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 5.0 x16
  • 3 x M.2 socket (2242/2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
  • 1 x M.2 socket (2230 M.2 slot)
Interfaces
  • 2 x USB4
  • 6 x USB 3.2 Gen 2
  • 3 x USB-C 3.2 Gen 2
  • 1 x HDMI
  • 2 x antenna
  • 1 x LAN (5Gigabit Ethernet)
  • 1 x LAN (10Gigabit Ethernet)
  • 1 x microphone - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x SPDIF out
Internal Interfaces
  • 2 x USB-C 3.2 Gen 2x2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 6 x USB 2.0 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
RAID FeaturesAMD RAID Xpert2 Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), LANGuard, Start button, ReTry button, FlexKey button, BIOS FlashBack button, Clear CMOS Button, AI Cooling II, AI Overclocking, ASUS Aura Sync, ASUS EZ DIY, Q-Antenna, Polymo Lighting II, AI Cache Boost, 20+2+2 Phase Power Design, ASUS Q-Connector, AI Networking II, ASUS Asynchronous Clock, ASUS ProCool II, Core Flex technology, 3D VC M.2 heatsink, M.2 Q-Release, M.2 Q-Latch, M.2 Q-Slide, Q-Code, VRM heatsink design, chipset heatsink, ASUS Extreme OC Kit, ASUS Extreme Engine Digi+, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, M.2 heatsink, metal backplate, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Dashboard, Q-LED, Q-Slot
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeAMD X870E
Compatible Processors(supports Ryzen 7000/8000/9000 Series)
Max Processors Qty1
Processor SocketSocket AM5
Product TypeMotherboard - ATX
LAN
Network ControllerMediatek MT7927
Network Interfaces10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Miscellaneous
Cables Included4 x Serial ATA cable
Depth24.4 cm
Included Accessories3 x M.2 Q-Slide, 5 x M.2 backplate rubber package, ASUS Wi-Fi Q-antenna, DDR5 fan holder, Q-Connector, ROG bottle opener, ROG stickers, ROG VIP card, thermal pad for M.2 SSD, ROG assistant fan (60 mm), screw package for cooling kit
Software IncludedAdobe Creative Cloud (free trial), AIDA64 Extreme (1 year license), Armoury Crate, ASUS AI Advisor, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, BullGuard Internet Security (1 year license), HWiNFO, ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)
Width30.5 cm
Supported RAM
Bus Clock8600 MT/s (O.C.), 8200 MT/s (O.C.), 9600 MT/s (O.C.), 9200 MT/s (O.C.), 8000 MT/s (O.C.)
FeaturesAMD EXPO technology, dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technology
Max Size256 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, ECC, on-die ECC
TechnologyDDR5
