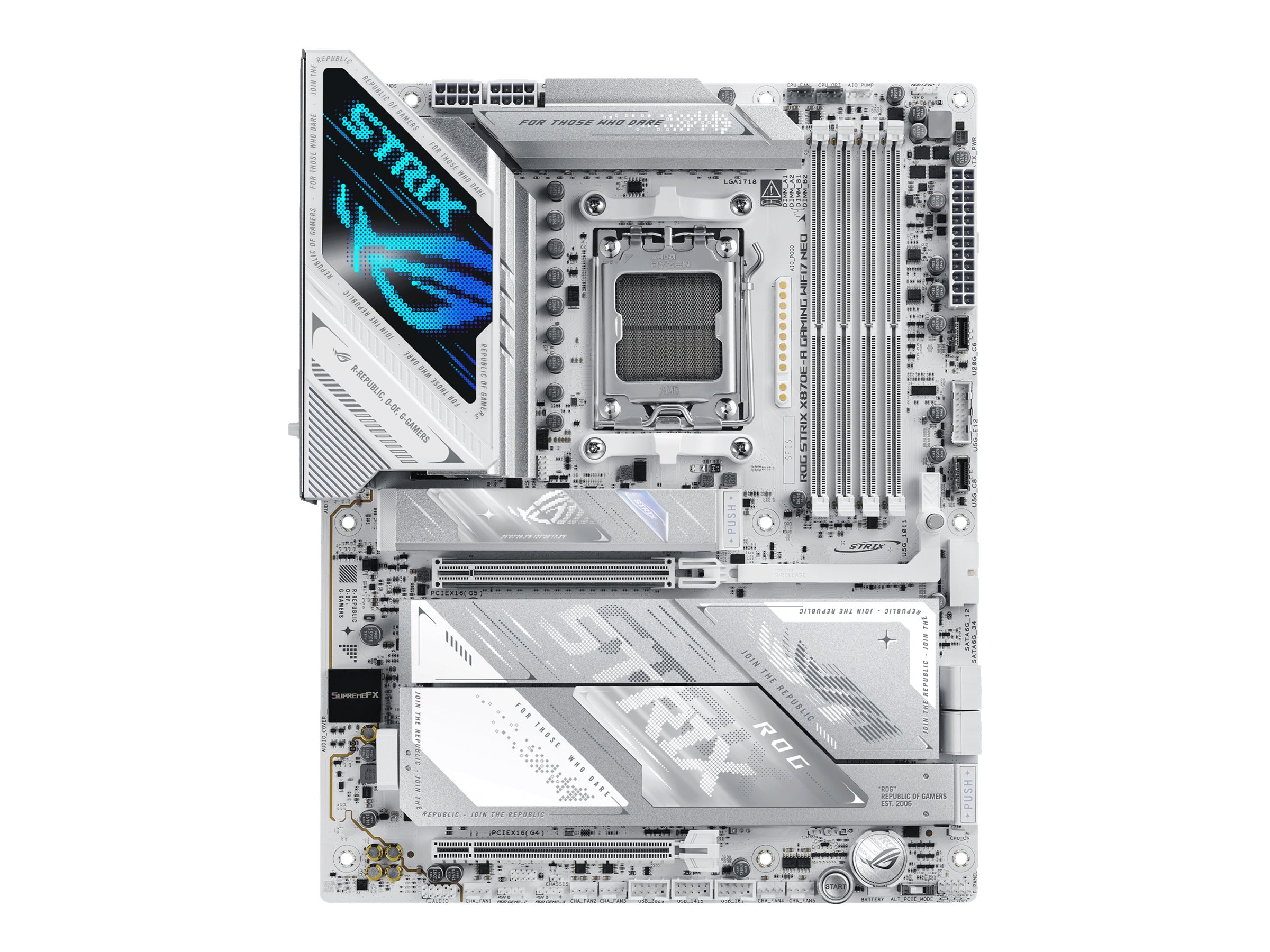

ASUS ROG STRIX X870E-A GAMING WIFI7 NEO
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS ROG STRIX X870E-A GAMING WIFI7 NEO
- Motherboard
- ATX
- Socket AM5
- AMD X870E Chipset
- USB4, USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB-C 3.2 Gen2
- Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ROG STRIX X870E-A GAMING WIFI7 NEO |
| SHI Part #: | 51390378 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS ROG STRIX X870E-A GAMING WIFI7 NEO - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB-C 3.2 Gen2 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| MSRP | $479.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | AMD X870E |
| Mainboard / Processor Socket | Socket AM5 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | SupremeFX (ALC4080) |
| Compliant Standards | High Definition Audio, Dolby Atmos |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| RAID Features | AMD RAID Xpert2 Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| BIOS Type | AMI |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), 5K Black Metallic Capacitors, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Antenna, Q-LED, Q-Dashboard, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Design, ASUS SafeSlot, BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS Button, M.2 heatsink, M.2 heatsink backplate, pre-mounted I/O shield, VRM heatsink design, LANGuard, ASUS Asynchronous Clock, ASUS Extreme Engine Digi+, 16+2+2 Phase Power Design, AI Cache Boost, AI Cooling II, AI Overclocking, chipset heatsink, AI Networking II, AMD Precision Boost Overdrive (PBO), Core Flex technology, Start button |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | AMD X870E |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4 |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4a |
| Depth | 24.4 cm |
| Included Accessories | ASUS Wi-Fi moving antenna, M.2 Q-Slide, M.2 Q-Latch, ROG key chain, ROG Strix sticker, 4 x M.2 rubber package |
| Software Included | ROG CPU-Z, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ROG GameFirst Utility, HWiNFO, ASUS GlideX, TurboV Core, ASUS DriverHub, USB Wattage Watcher, Adobe Creative Cloud (free trial), AIDA64 Extreme (60 days trial), ASUS AI Advisor, Norton 360 for Gamers (60 days trial), WinRAR (40 days trial) |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 8600 MT/s (O.C.), 8200 MT/s (O.C.), 9600 MT/s (O.C.), 9000 MT/s (O.C.), 8000 MT/s (O.C.) |
| Features | NitroPath technology, AMD EXPO technology, Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC, on-die ECC |
| Technology | DDR5 |
