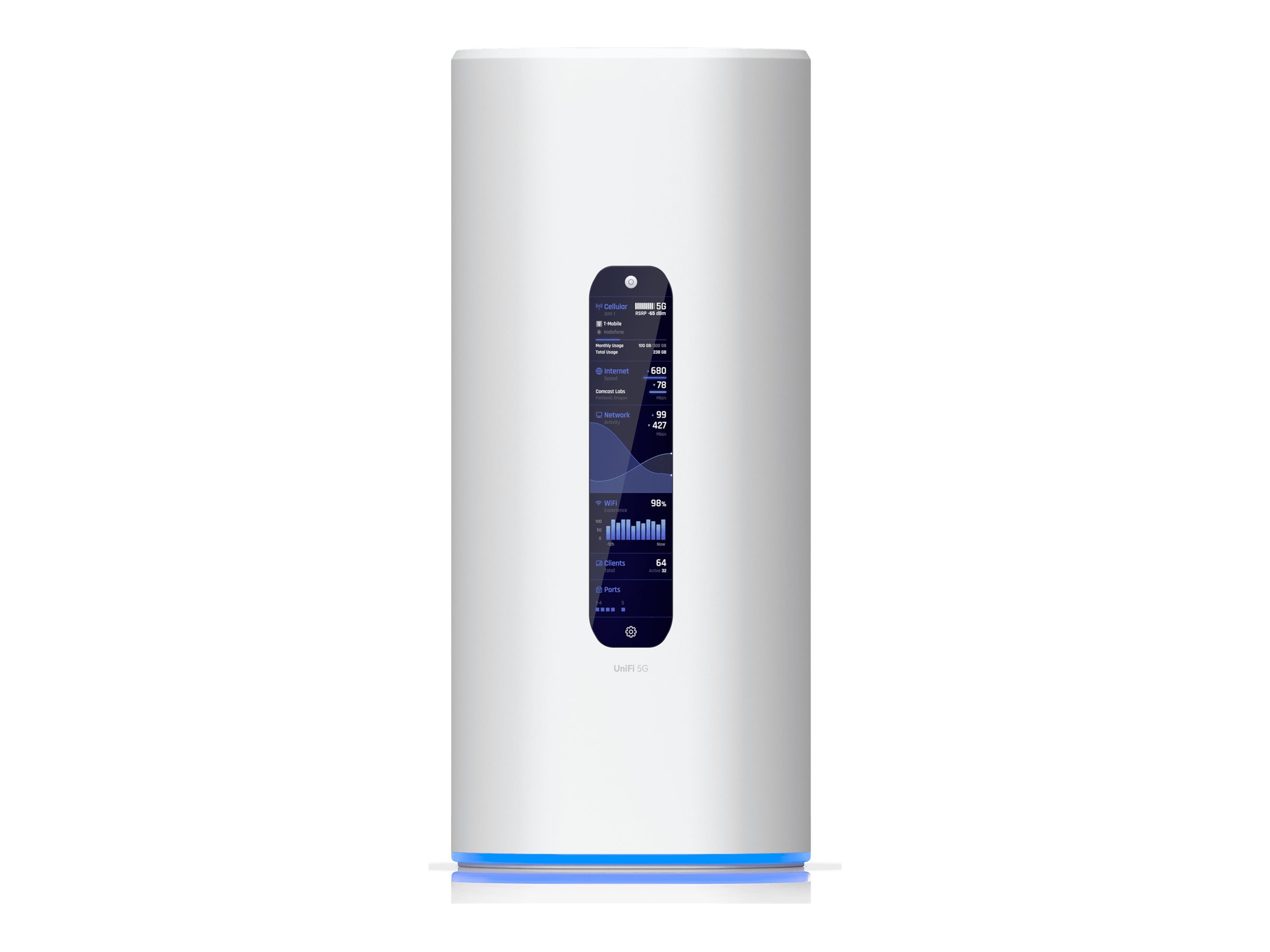

Ubiquiti UniFi Dream Router 5G Max

$591.00
Ubiquiti UniFi Dream Router 5G Max
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Wireless router
  • WWAN 4-port switch
  • 10GbE, 2.5GbE, Wi-Fi 7
  • WAN ports: 2 Multi-Band
  • 3G, 4G, 5G
Ubiquiti UniFi Dream Router 5G Max
  • Wireless router
  • WWAN 4-port switch
  • 10GbE, 2.5GbE, Wi-Fi 7
  • WAN ports: 2 Multi-Band
  • 3G, 4G, 5G
  • for P/N: UACC-AOC-SFP10-5M, UACC-CM-RJ45-MG, UACC-DAC-SFP10-0.5M
  Additional Details
Price: $591.00
Mfr Part #: UDR-5G-MAX
SHI Part #: 51554778
Category: Routers
UNSPSC: 43222609
Manufacturer: Ubiquiti
Product Type: Hardware
General Information
CategoryRouters
DescriptionUbiquiti UniFi Dream Router 5G Max - Wireless router - WWAN 4-port switch - 10GbE, 2.5GbE, Wi-Fi 7 - WAN ports: 2 Multi-Band - 3G, 4G, 5G - for P/N: UACC-AOC-SFP10-5M, UACC-CM-RJ45-MG, UACC-DAC-SFP10-0.5M
ManufacturerUbiquiti
MSRP$499.00
UNSPSC43222609
Main Specifications
Dimensions & Weight / Depth11 cm
Dimensions & Weight / Height25 cm
Dimensions & Weight / Weight1.4 kg
Dimensions & Weight / Width11 cm
Header / BrandUbiquiti
Miscellaneous / Product ColorWhite
Networking / Connectivity Technology
  • Wired
  • Wireless
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Data Transfer Rate2.3 Gbps
Networking / Form FactorDesktop
Networking / TypeWireless router
Networking / Wireless Protocol802.11a/b/g/n/ac/ax/be
Packaged Quantity1
Antenna
AntennaInternal
Communications
Cellular BandUMTS B1, UMTS B19, UMTS B2, UMTS B4, UMTS B5, UMTS B8, 5G NR NSA n1, 5G NR NSA n2, 5G NR NSA n3, 5G NR NSA n5, 5G NR NSA n7, 5G NR NSA n8, 5G NR NSA n12, 5G NR NSA n13, 5G NR NSA n14, 5G NR NSA n18, 5G NR NSA n20, 5G NR NSA n25, 5G NR NSA n26, 5G NR NSA n28, 5G NR NSA n29, 5G NR NSA n30, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n41, 5G NR NSA n48, 5G NR NSA n66, 5G NR NSA n70, 5G NR NSA n71, 5G NR NSA n75, 5G NR NSA n76, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B18, LTE B19, LTE B20, LTE B21, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71
Cellular ProtocolLTE Cat4, 5G NR, UMTS
Generation3G, 4G, 5G
TypeWireless cellular modem
Compatibility Information
Designed ForP/N: UACC-AOC-SFP10-5M, UACC-CM-RJ45-MG, UACC-DAC-SFP10-0.5M
Dimensions & Weight
Depth11 cm
Height25 cm
Weight1.4 kg
Width11 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Slots
  • 3 (total) / 3 (free) x Nano-SIM
  • 1 microSD
Interfaces
  • LAN: 3 x 100Base-TX/1000Base-TX/2.5GBase-T - RJ-45
  • WAN / LAN: 1 x 2.5G Gigabit Ethernet - RJ-45
  • WAN: 1 x 10Gb Ethernet - SFP+
General
Authentication MethodRADIUS, RADSEC
Built-in Devices4.7" touch screen display, microSD card reader
Capacity
  • Number of UniFi supported devices: 30+
  • Number of concurrent clients: 300+
  • Maximum cameras: 8
  • IPS signatures: 20000
  • BSSIDs per radio: 4
Compliant StandardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, Wi-Fi CERTIFIED 7, PTCRB, GCF
Connectivity TechnologyWireless, wired
Data Link Protocol10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Data Transfer Rate2.3 Gbps
Device TypeWireless router - 4-port switch (integrated)
Enclosure TypeDesktop
Encryption AlgorithmTLS, WPA-PSK, WPA-Enterprise, WPA, WPA2, WPA3
FeaturesAd blocking, content filtering, DPI & traffic identification, IPS, SPIF, zone-based firewall advanced filtering, IPSec support, SD-WAN support, L2TP VPN server, OpenVPN client, VPN Server, WireGuard, multi-WAN load balancing, Advanced Quality of Service (QoS), DNAT support, mDNS-SD support, SNAT support, Internet quality, outage reporting, 2x2 MIMO 2.4GHz, 2x2 MIMO 5GHz, 2x2 MU-MIMO 6Ghz, eSIM support, reset button, 15.4 W PoE power budget, polycarbonate enclosure, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Bluetooth management
Frequency Band2.4 GHz / 5 GHz / 6 GHz
MAC Address Table Size2000 entries
Network / Transport ProtocolL2TP
Performance
  • IDS/IPS throughput: 2.3 Gbps
  • Maximum data rate (6 GHz): 5.7 Gbps
  • Maximum data rate (5 GHz): 4.3 Gbps
  • Maximum data rate (2.4 GHz): 688 Mbps
  • 5G NSA downstream: 3.4 Gbps
  • 5G NSA upstream: 560 Mbps
  • 5G SA downstream: 1.8 Gbps
  • 5G SA upstream: 650 Mbps
Processor1 x ARM Quad Core A53 1.5 GHz
RAM3 GB
Routing ProtocolOSPF
Status IndicatorsStatus, SFP+, system
Internet of Things (IoT)
Communications TechnologyLTE Cat 4
Internet of Things (IoT) CompatibleYes
Miscellaneous
Cables Included1 x network cable
Included AccessoriesPower cable, SIM card ejector
Power
Power DeviceExternal power adapter - 15 watt
Voltage RequiredAC 100-240 V
