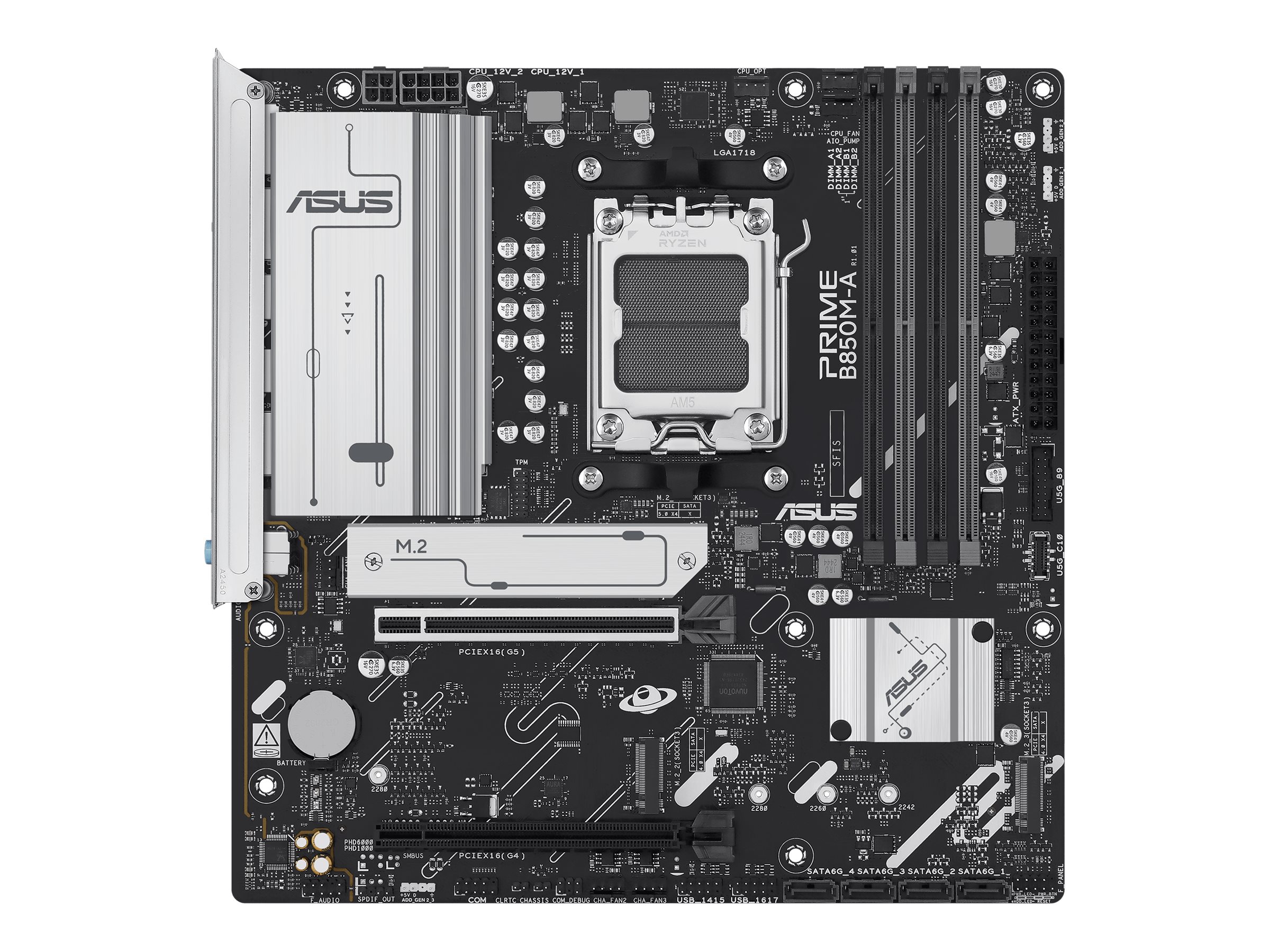

ASUS PRIME B850M-A-CSM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS PRIME B850M-A-CSM
- Motherboard
- micro ATX
- Socket AM5
- AMD B850 Chipset
- USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1
- 2.5 Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PRIME B850M-A-CSM |
| SHI Part #: | 51588654 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS PRIME B850M-A-CSM - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| MSRP | $169.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | AMD B850 |
| Mainboard / Processor Socket | Socket AM5 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| RAID Features | AMD RAID Xpert2 Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| BIOS Type | AMI |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), LANGuard, ASUS 5X Protection III, BIOS FlashBack button, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS Q-Design, ASUS Stainless Steel Back I/O, ASUS Aura Sync, ASUS EZ DIY, BIOS FlashBack LED, M.2 heatsink, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, 6 Layer PCB, 8+2+1 Phase Power Design, AI Cache Boost, chipset heatsink, pre-mounted I/O shield |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | AMD B850 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Depth | 24.4 cm |
| Included Accessories | 1 x M.2 rubber package, 2 x M.2 screw package, ACC Express Activation Key Card |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Advisor, TurboV Core, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 8000 MT/s (O.C.) |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC, on-die ECC |
| Technology | DDR5 |
