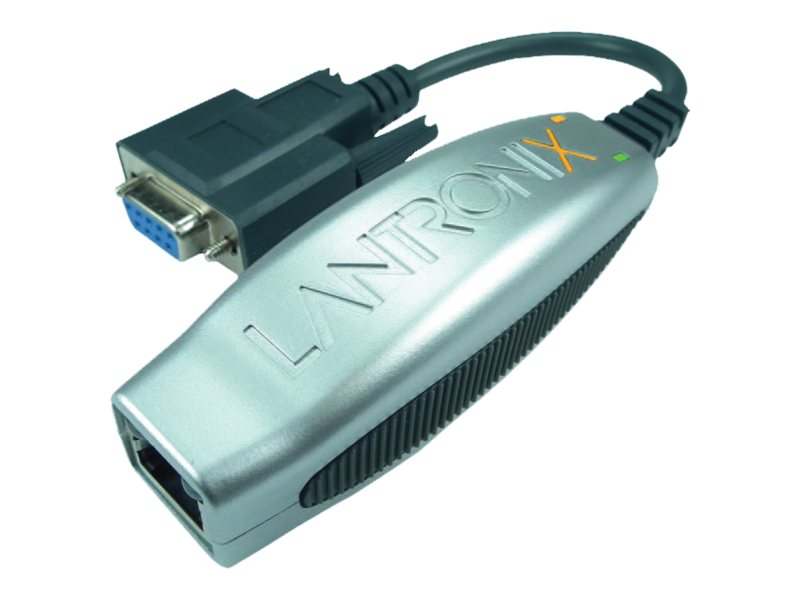

Lantronix xDirect Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Lantronix xDirect Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet
- Device server
- 100Mb LAN, RS-232, RS-422, RS-485
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | XDT4851002-01-S |
| SHI Part #: | 26427203 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | Lantronix xDirect Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet - Device server - 100Mb LAN, RS-232, RS-422, RS-485 |
| Manufacturer | Lantronix |
| MSRP | $123.14 |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24 cm |
| Dimensions & Weight / Height | 2.9 cm |
| Dimensions & Weight / Weight | 68 g |
| Dimensions & Weight / Width | 3.3 cm |
| Header / Brand | Lantronix |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 921.6 Kbps |
| Networking / Form Factor | External |
| Networking / Type | Device server |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| System Requirements / OS Required |
|
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 24 cm |
| Device Type | Device server |
| Height | 2.9 cm |
| Weight | 68 g |
| Width | 3.3 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | VCCI, C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1 Second Edition, IEC 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Data Transfer Rate | 921.6 Kbps |
| Encryption Algorithm | 128-bit AES, 192-bit AES, 256-bit AES |
| Features | Flow control, auto-sensing per device, DHCP support, 15 KV Electrostatic Discharge Protection |
| Form Factor | External |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, ARP, BOOTP, DHCP |
| Remote Management Protocol | SNMP, Telnet, HTTP, TFTP |
| Status Indicators | Power, status, link/activity, serial |
| Power | |
| Power Consumption Operational | 1.3 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Processor / Memory / Storage | |
| Flash Memory | 1 MB |
| Max Supported Qty | 1 |
| Processors Installed | 1 x |
| RAM | 256 KB SRAM |
| Software / System Requirements | |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits) |
| Software Included | Drivers & Utilities, Lantronix Com Port Redirector, Lantronix DeviceInstaller |
