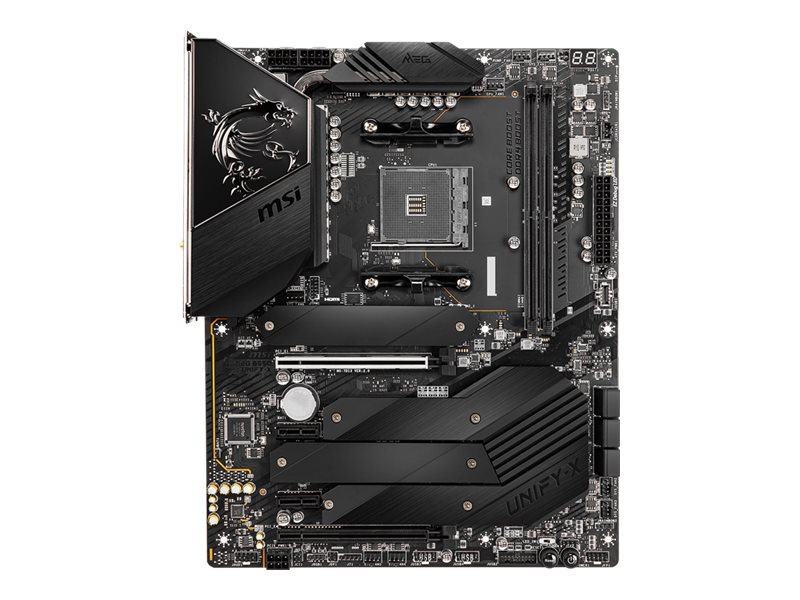

MSI MEG B550 UNIFY-X
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
MSI MEG B550 UNIFY-X
- Motherboard
- ATX
- Socket AM4
- AMD B550 Chipset

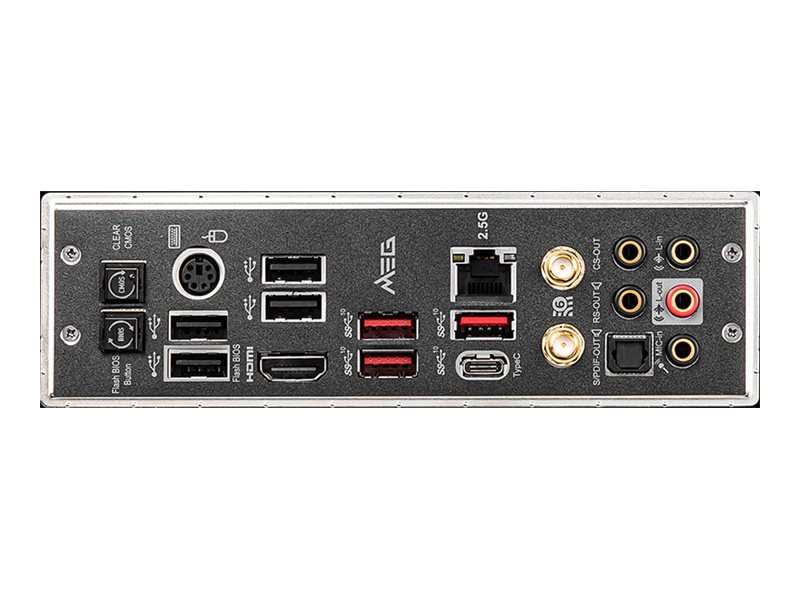

- USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
- 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | B550UNIFYX |
| SHI Part #: | 41729832 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | MSI MEG B550 UNIFY-X - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | MSI |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.4 cm |
| Header / Brand | MSI |
| Mainboard / Chipset Type | AMD B550 |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM4 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC1220P |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | AMD CrossFireX technology support, Debug LED, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, MSI Audio Boost 4, 2oz Copper PCB, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot, 14+2 Phase Power Design, double side M.2 Shield FROZR |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer |
| General | |
| Chipset Type | AMD B550 / Nuvoton NCT6687D-R |
| Compatible Processors | Ryzen (supports Ryzen 5000 & 3000 series (not compatible with Ryzen 5 3400G & Ryzen 3 3200G) and Ryzen 4000 G-series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - ATX |
| Graphics | |
| Max Allocated RAM Size | 16 GB |
| LAN | |
| Network Controller | Realtek RTL8125B / Intel AX200 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | External antenna, case badge, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable, DIY stands set |
| Software Included | Drivers & utilities |
| Width | 30.4 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 3066 MHz, 4733 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.), 5300 MHz (O.C.), 5800 MHz (O.C.) |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
