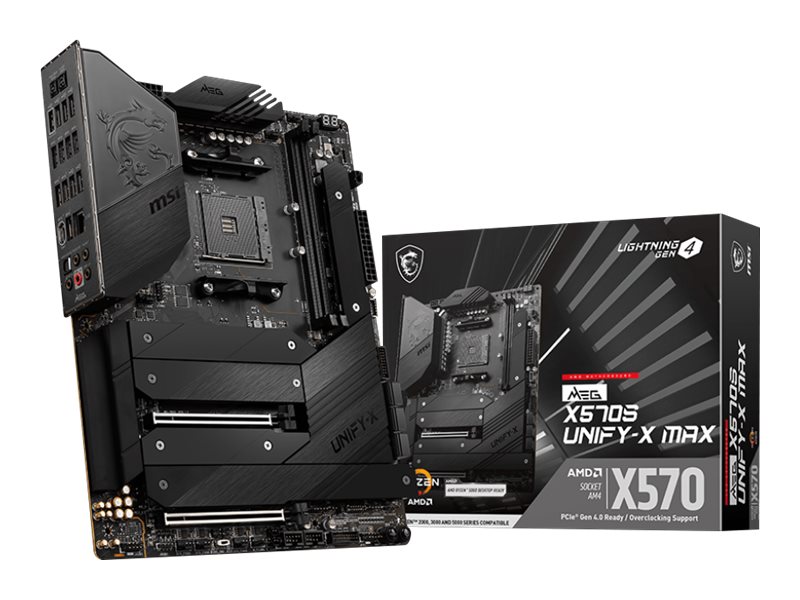

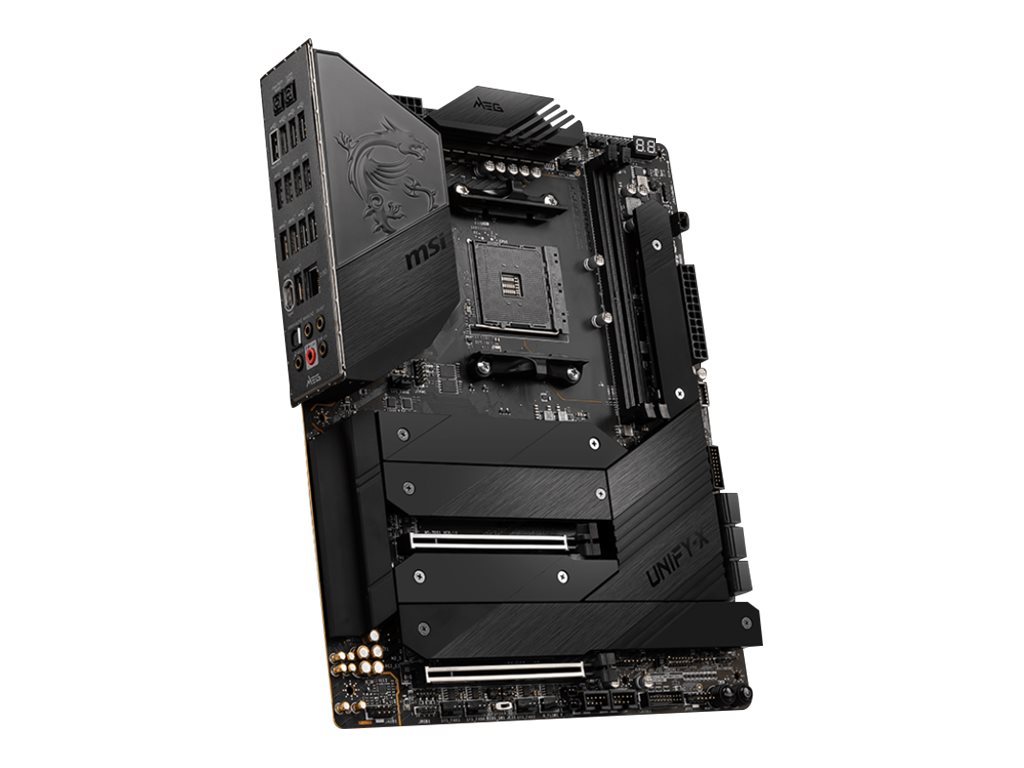

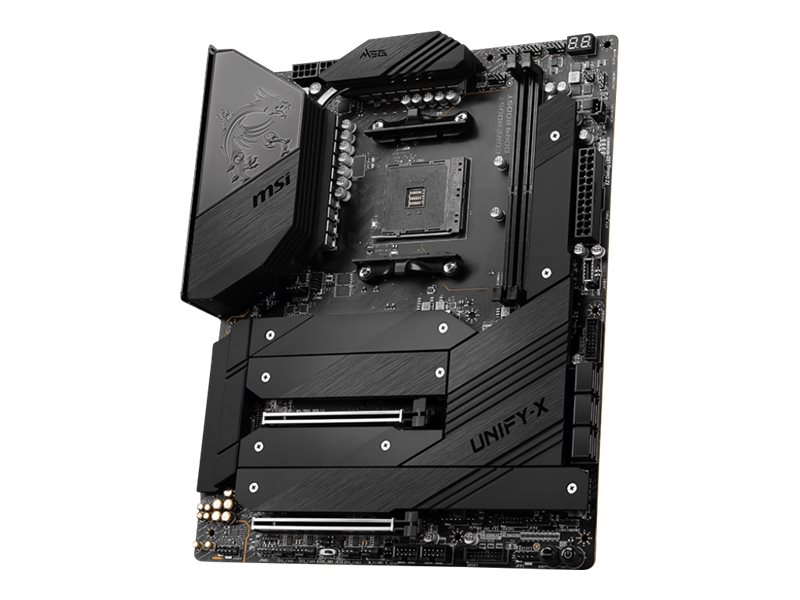

MSI MEG X570S UNIFY-X MAX
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
MSI MEG X570S UNIFY-X MAX
- Motherboard
- ATX
- Socket AM4
- AMD X570 Chipset

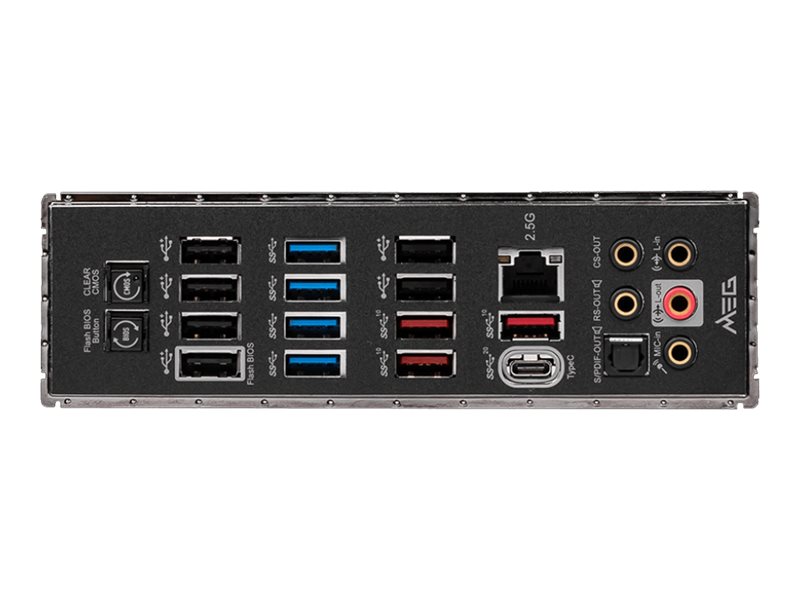

- USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2
- 2.5 Gigabit LAN
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | X570SUNXMAX |
| SHI Part #: | 43795566 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | MSI MEG X570S UNIFY-X MAX - Motherboard - ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2 - 2.5 Gigabit LAN - HD Audio (8-channel) |
| Manufacturer | MSI |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | MSI |
| Mainboard / Chipset Type | AMD X570 |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM4 |
| Networking / Data Link Protocol | 2.5 Gigabit Ethernet |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Video Output / Type | None |
| Audio | |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | AMD CrossFireX technology support, M.2 Shield FROZR, MSI Steel Armor, pre-mounted I/O shield, 2oz Copper PCB, 16+2 Phase Power Design, MSI Audio Boost 5, Server-Grade Low-Loss PCB |
| Hardware Monitoring | Chassis fan tachometer, chassis temperature, CPU core temperature, CPU fan tachometer, fan control |
| General | |
| Chipset Type | AMD X570 / Nuvoton NCT6687D |
| Compatible Processors | Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Realtek RTL8125B |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 4 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | USB drive, case badge, cleaning brush, DIY stands set, MEG stickers, cable labels, 6 x M.2 screws, 6 x standoff for M.2 socket, screwdriver, 1 to 2 RGB LED extension Y cable, 2 thermistor cables, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable |
| Software Included | Drivers & utilities |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 3066 MHz, 4733 MHz (O.C.), 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.), 5200 MHz (O.C.), 5300 MHz (O.C.), 5800 MHz (O.C.) |
| Features | Dual channel memory architecture, A-XMP support |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
