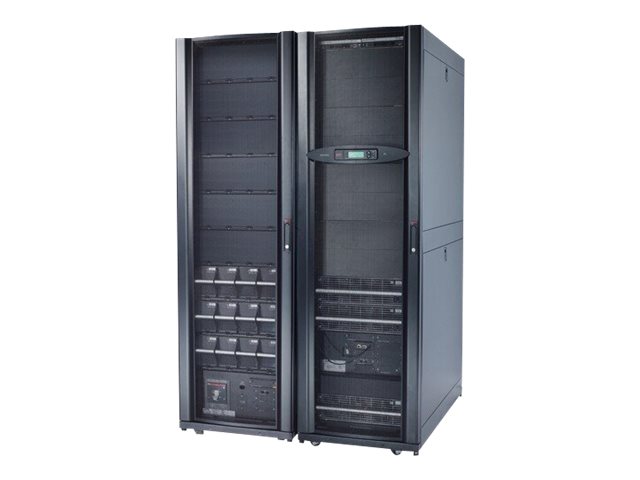

SYMMETRA PX 32KW SCALABLE TO160KW 400V HARD WIRE 5-WIRE
MSRP$105,935.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
SYMMETRA PX 32KW SCALABLE TO160KW 400V HARD WIRE 5-WIRE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $105,935.00 |
| Mfr Part #: | SY32K160H |
| SHI Part #: | 17411930 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | SYMMETRA PX 32KW SCALABLE TO160KW 400V HARD WIRE 5-WIRE |
| Manufacturer | APC by Schneider Electric |
| MSRP | $105,935.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 107 cm |
| Dimensions & Weight / Height | 199 cm |
| Dimensions & Weight / Weight | 1029 kg |
| Dimensions & Weight / Width | 120 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 1 |
| Power Device / Power Capacity (VA) | 32000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 400 V |
| Product Type | Power array |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Quantity | 3 (installed) / 9 (supported) |
| Recharge Time | 3.5 hours |
| Run Time (Up To) | 6 min at full load |
| Technology | Lead acid |
| Voltage Provided | 192 V |
| Dimensions & Weight | |
| Depth | 107 cm |
| Height | 199 cm |
| Weight | 1029 kg |
| Width | 120 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 121 cm |
| Shipping Height | 214 cm |
| Shipping Weight | 1210 kg |
| Shipping Width | 170 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 63 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 2 SmartSlot |
| Interfaces | 1 x EPO (emergency power off) |
| General | |
| Color | Black |
| Device Type | Power array - external |
| Height (Rack Units) | 42U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | IEC 62040-3, IEC 62040-1-1, EN 50091-1, FCC Part 15 A |
| Features | Audible alarm, emergency power off, LCD display, built-in static bypass, LED indicators |
| Networking | |
| Remote Management Protocol | SNMP, HTTP |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire 5-wire (3PH + N + G) |
| Input Voltage | AC 400 V |
| Input Voltage Margin | ± 5% |
| Input Voltage Range | AC 340 - 477 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 230/380/400/415 V ± 2% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 32 kW / 32000 VA |
| Power Output Connectors Details | 1 x hardwire 5-wire (3PH + N + G) |
| UPS Technology | On-line |
