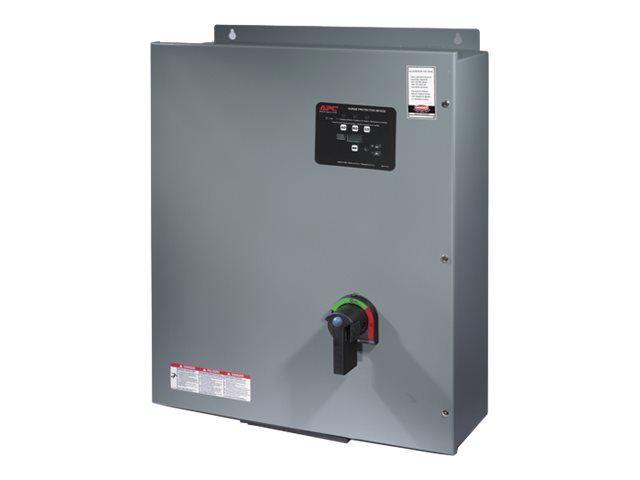

APC SurgeArrest Panelmount with Disconnect and Surge Counter
MSRP$3,300.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC SurgeArrest Panelmount with Disconnect and Surge Counter
- Surge suppressor
- AC 120/230 V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,300.00 |
| Mfr Part #: | PMP4DS-A |
| SHI Part #: | 18519660 |
| Category: | Surge suppressers |
| UNSPSC: | 39121610 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surge suppressers |
| Description | APC SurgeArrest Panelmount with Disconnect and Surge Counter - Surge suppressor - AC 120/230 V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,300.00 |
| UNSPSC | 39121610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 15.2 cm |
| Dimensions & Weight / Height | 50.8 cm |
| Dimensions & Weight / Weight | 16.8 kg |
| Dimensions & Weight / Width | 40.6 cm |
| General / Subcategory | Surge protection and power conditioning |
| Header / Brand | APC |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Voltage Required | AC 120/230 V |
| Product Type | Surge protector |
| Service & Support / Type | 10-year warranty |
| Dimensions & Weight | |
| Depth | 15.2 cm |
| Height | 50.8 cm |
| Weight | 16.8 kg |
| Width | 40.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 30.5 cm |
| Shipping Height | 63.5 cm |
| Shipping Weight | 19.1 kg |
| Shipping Width | 49 cm |
| Environmental Parameters | |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -40 °C |
| General | |
| Color | Gray |
| Device Type | Surge protector - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Compliant Standards | cUL, UL 1283, UL 1449, NEMA Type 12, NEMA Type 3R |
| Features | Audible alarm, thermal monitoring |
| Power Device | |
| Circuit Protection | Circuit breaker |
| EMI/RFI Noise Filtration | 30 dB |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x hardwire 3-wire (2PH + G) |
| Input Voltage | AC 120/230 V |
| Max Spike Current | 160000 A |
| Surge Response Time | 1 ns |
| Surge Suppression | Yes |
