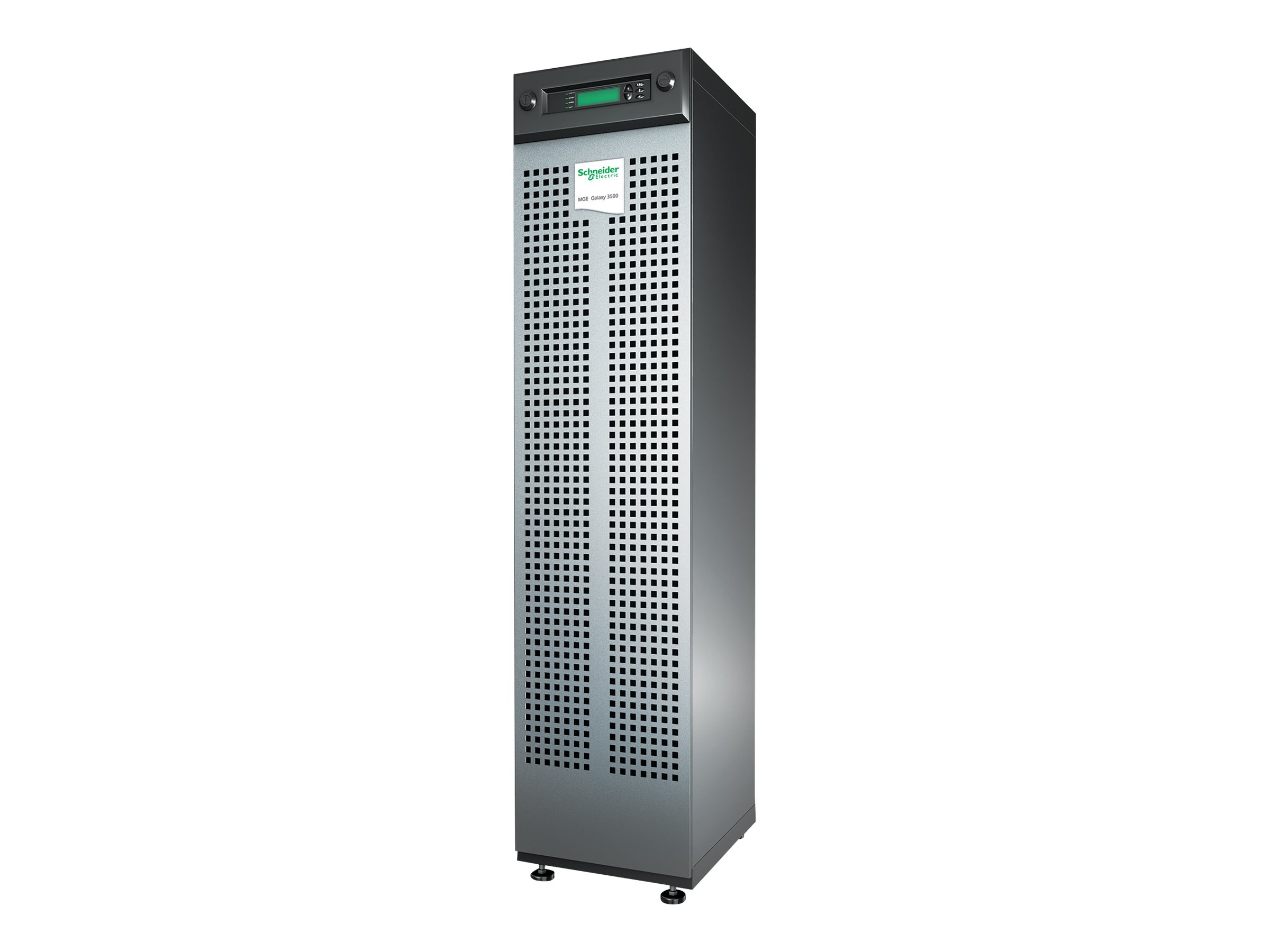

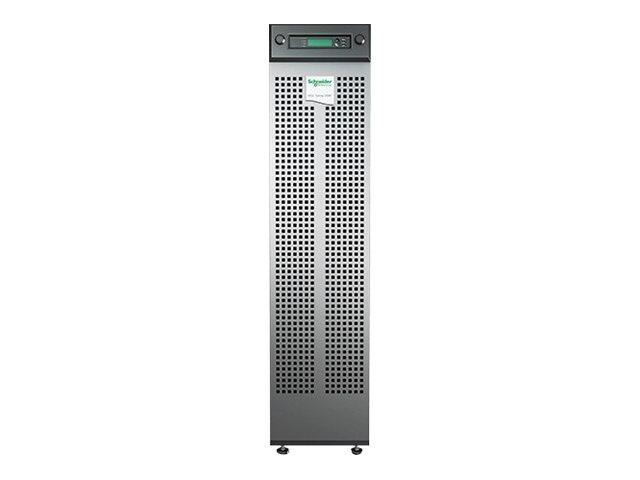

UPS - 120V - 208V - 12 KW
MSRP$15,030.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
UPS - 120V - 208V - 12 KW
- (1) HARD WIRE 4-WIRE (3PH + G); (1) HARD WIRE 5-WIRE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $15,030.00 |
| Mfr Part #: | G35T15KF2B2S |
| SHI Part #: | 20541557 |
| Category: | Batteries and cells and accessories |
| UNSPSC: | 26111700 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Accessories |
| General Information | |
|---|---|
| Category | Batteries and cells and accessories |
| Description | UPS - 120V - 208V - 12 KW - (1) HARD WIRE 4-WIRE (3PH + G); (1) HARD WIRE 5-WIRE |
| Manufacturer | APC by Schneider Electric |
| MSRP | $15,030.00 |
| UNSPSC | 26111700 |
| Main Specifications | |
| Dimensions & Weight / Depth | 83.8 cm |
| Dimensions & Weight / Height | 149 cm |
| Dimensions & Weight / Weight | 397 kg |
| Dimensions & Weight / Width | 35.6 cm |
| General / Subcategory | UPS |
| Header / Brand | MGE |
| Networking / Remote Management Interface | RS-232 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 3 |
| Power Device / Power Capacity (VA) | 15000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 208 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Quantity | 2 |
| Recharge Time | 5 hours |
| Run Time (Up To) | 10.3 min at full load |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 83.8 cm |
| Height | 149 cm |
| Weight | 397 kg |
| Width | 35.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 106 cm |
| Shipping Height | 164 cm |
| Shipping Weight | 428 kg |
| Shipping Width | 65 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 51.3 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Interfaces | 1 x management (RS-232) |
| General | |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Serial cable - external |
| Compliant Standards | ISO 9001, cUL, UL 1778, ISO 14001, NEMA Type 12 |
| Features | Built-in maintenance bypass, built-in static bypass |
| Included Accessories | Bolt down brackets |
| Networking | |
| Remote Management Interface | RS-232 |
| Remote Management Protocol | SNMP, HTTP |
| Power Device | |
| Frequency Provided | 57 - 63 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire 5-wire (3PH + N + G) |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 160 - 240 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 120/200/208/220 V ± 3% - 57 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 12 kW / 15000 VA |
| Power Output Connectors Details |
|
| UPS Technology | On-line |
