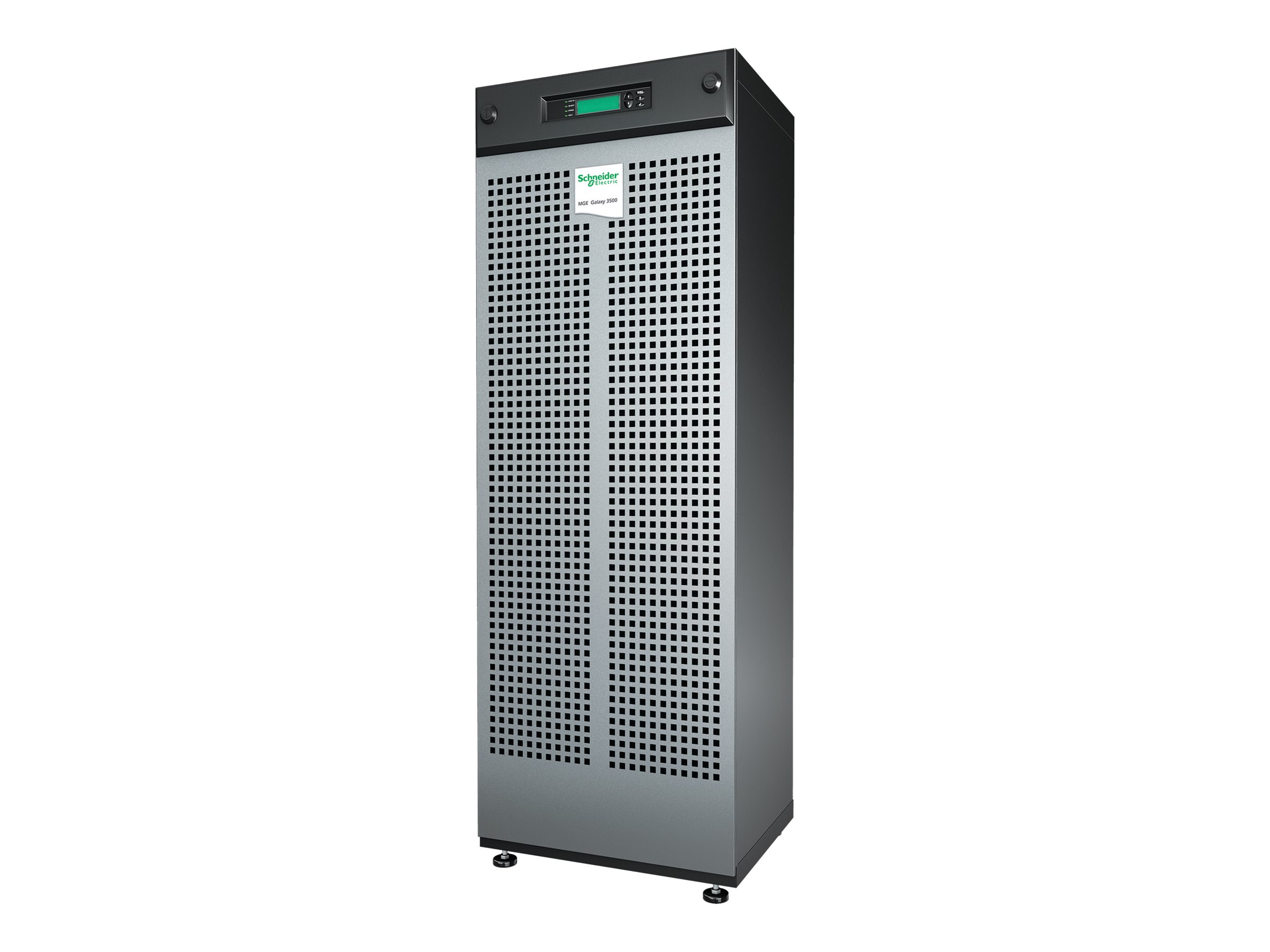

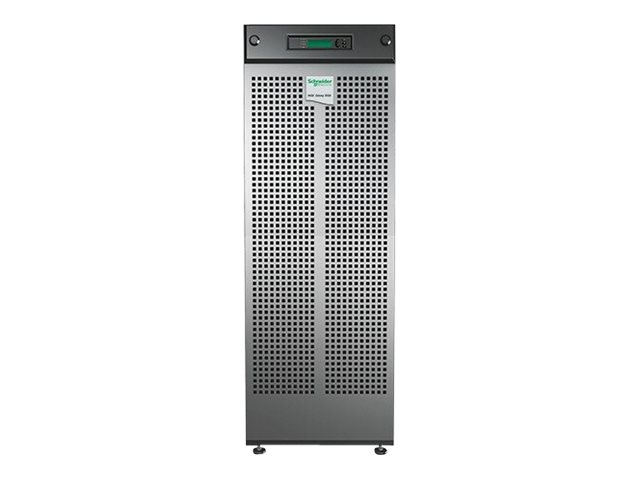

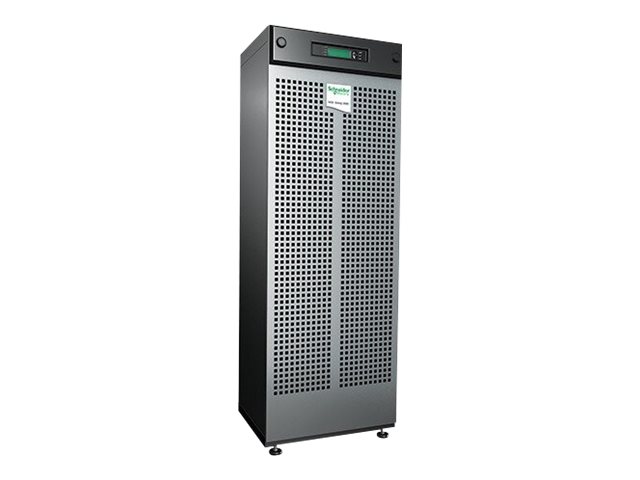

MGE GALAXY 3500 30KVA 208V WITH 4 BATTERY MODULES, START-UP 5X8
MSRP$21,825.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
MGE GALAXY 3500 30KVA 208V WITH 4 BATTERY MODULES, START-UP 5X8
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $21,825.00 |
| Mfr Part #: | G35T30KF4B4S |
| SHI Part #: | 20541572 |
| Category: | Batteries and cells and accessories |
| UNSPSC: | 26111700 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Accessories |
Audio/Video Cables
- Network adapter kit
- black
- for P/N: SMT1000RM1U, SRTL10KRM4UT, SRTL5KRM2UI-HW, SRTL5KRM2UT-HW, SRTL8KRM4UT
MSRP $240.00
$191.00
- 2 m
- for P/N: SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW, SRYL15K15RMX LT, SRYL15K15XLT24
MSRP $40.00
$32.00
- 4.57 m
- for P/N: SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW, SRYL15K15RMX LT, SRYL15K15XLT24
MSRP $60.00
$49.00
Laptop Batteries
- for P/N: G35T15K3IS, G35T40K3IS, SUVTJP20KF2B4S, SUVTJP30KF3B4S, SUVTRTF20KB5F, SY30K40E
MSRP $4,035.00
$3,031.00
- with Recycling Service
- for P/N: G35TEFBXR6, SUVTJP20KF2B4S, SUVTJP30KF3B4S, SUVTRTF20KB5F, SY10K40E, SY30K40E
| General Information | |
|---|---|
| Category | Batteries and cells and accessories |
| Description | MGE GALAXY 3500 30KVA 208V WITH 4 BATTERY MODULES, START-UP 5X8 |
| Manufacturer | APC by Schneider Electric |
| MSRP | $21,825.00 |
| UNSPSC | 26111700 |
| Main Specifications | |
| Dimensions & Weight / Depth | 83.8 cm |
| Dimensions & Weight / Height | 149 cm |
| Dimensions & Weight / Weight | 629 kg |
| Dimensions & Weight / Width | 52.3 cm |
| General / Subcategory | UPS |
| Header / Brand | MGE |
| Networking / Remote Management Interface | RS-232 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 3 |
| Power Device / Power Capacity (VA) | 30000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 208 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Quantity | 4 |
| Recharge Time | 5 hours |
| Run Time (Up To) | 9.8 min at full load |
| Technology | Lead acid |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 83.8 cm |
| Height | 149 cm |
| Weight | 629 kg |
| Width | 52.3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 106 cm |
| Shipping Height | 164 cm |
| Shipping Weight | 660 kg |
| Shipping Width | 65 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | SmartSlot |
| Interfaces | 1 x management (RS-232) |
| General | |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | Serial cable - external |
| Compliant Standards | ISO 9001, cUL, UL 1778, ISO 14001 |
| Features | Built-in maintenance bypass, built-in static bypass |
| Included Accessories | Bolt down brackets |
| Networking | |
| Remote Management Interface | RS-232 |
| Remote Management Protocol | SNMP, HTTP |
| Power Device | |
| Frequency Provided | 57 - 63 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire 5-wire (3PH + N + G) |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 160 - 240 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 120/208/220 V ± 3% - 57 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 24 kW / 30000 VA |
| Power Output Connectors Details |
|
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
