Tripp Lite PDU Dual Source w/ Hot Swap 200-240V 16A C13 C19 8 Outlet 2U RM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

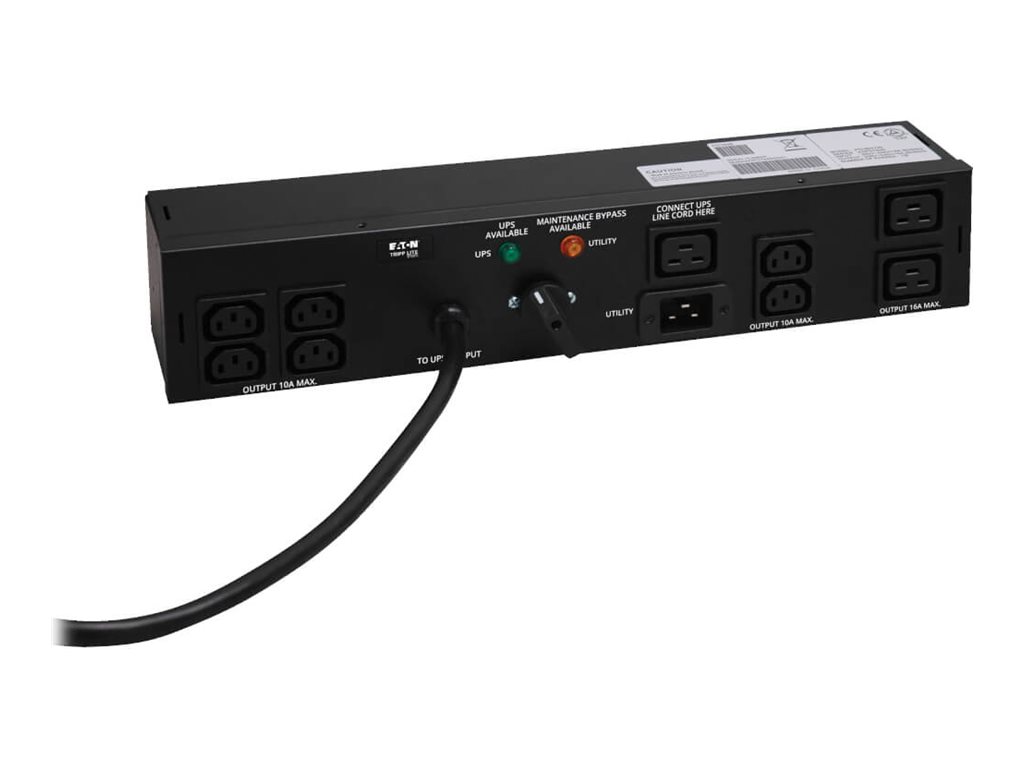

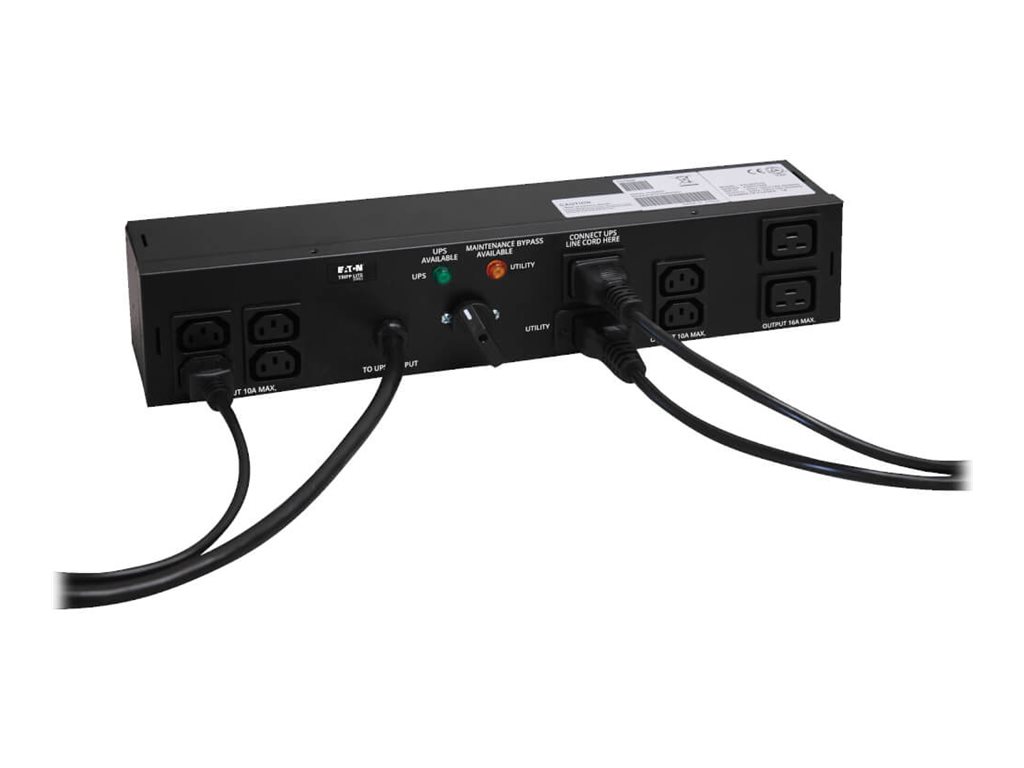

Tripp Lite PDU Dual Source w/ Hot Swap 200-240V 16A C13 C19 8 Outlet 2U RM
- Horizontal rackmount
- power distribution unit (rack-mountable)
- 16 A
- AC 200/208/220/230/240 V
- 3.68 kW
- 3000 VA
- output connectors: 8 (IEC 60320 C13, IEC 60320 C19)
- 2U
| Additional Details | |
|---|---|
| Mfr Part #: | PDUBHV20 |
| SHI Part #: | 21690920 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Tripp Lite PDU Dual Source w/ Hot Swap 200-240V 16A C13 C19 8 Outlet 2U RM - Horizontal rackmount - power distribution unit (rack-mountable) - 16 A - AC 200/208/220/230/240 V - 3.68 kW - 3000 VA - output connectors: 8 (IEC 60320 C13, IEC 60320 C19) - 2U |
| Manufacturer | Eaton |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.7 cm |
| Dimensions & Weight / Height | 8.7 cm |
| Dimensions & Weight / Weight | 3.5 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Tripp Lite |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 3000 VA |
| Power Device / Voltage Required | AC 200/208/220/230/240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 7.7 cm |
| Height | 8.7 cm |
| Weight | 3.5 kg |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 24 cm |
| Shipping Height | 25 cm |
| Shipping Weight | 3.41 kg |
| Shipping Width | 57.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 2 x power cable - external - 1.8 m |
| Compliant Standards | CSA, IEC 60950, UL 60950, RoHS, WEEE |
| Features | LED indicators, built-in bypass switch |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 2 x power IEC 60320 C19, power IEC 60320 C20 |
| Input Voltage | AC 200/208/220/230/240 V |
| Max Electric Current | 16 A |
| Output Voltage | AC 200-240 V 50/60 Hz |
| Power Capacity | 3.68 kW / 3000 VA |
| Power Output Connectors Details |
|
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
