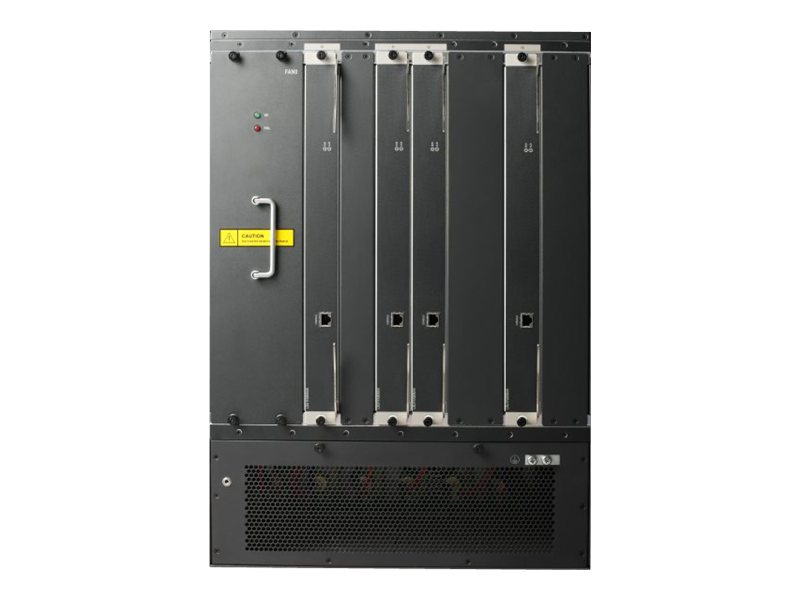

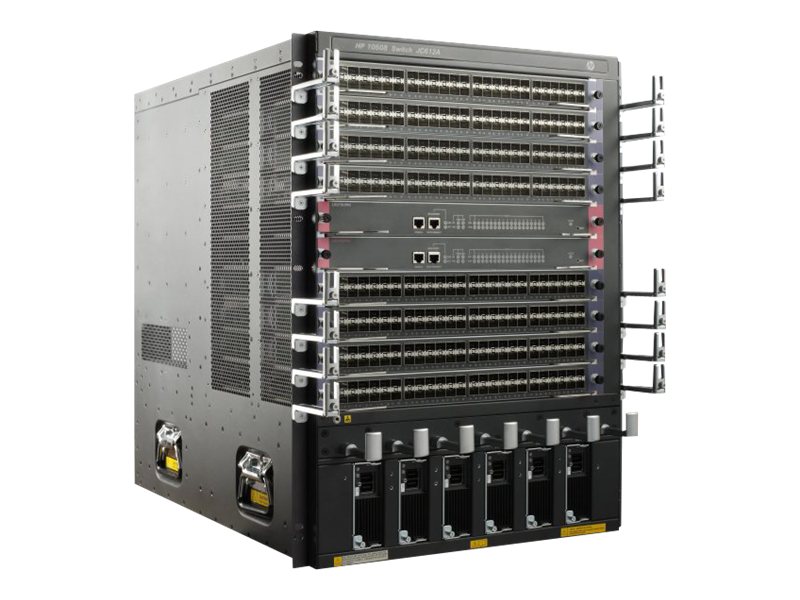

HPE FlexNetwork 10508 Switch Chassis
MSRP$10,495.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE FlexNetwork 10508 Switch Chassis
- Switch
- L3
- Managed
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $10,495.00 |
| Mfr Part #: | JC612A |
| SHI Part #: | 24773691 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE FlexNetwork 10508 Switch Chassis - Switch - L3 - Managed - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $10,495.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 65.99 cm |
| Dimensions & Weight / Height | 62 cm |
| Dimensions & Weight / Weight | 56.7 kg |
| Dimensions & Weight / Width | 43.99 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 65.99 cm |
| Height | 62 cm |
| Weight | 56.7 kg |
| Width | 43.99 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Installed Modules Qty (Max) | 0 (installed) / 14 (max) |
| Interfaces | 1 x serial (RS-232) DB-9 management |
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Device Type | Switch - L3 - managed |
| Enclosure Type | Rack-mountable 14U |
| Encryption Algorithm | MD5, AES, TLS, PEAP, TTLS, TKIP, WEP |
| Features | Flow control, firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, DHCP snooping, TFTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, EAD, IPv4 support, fan tray |
| Flash Memory | 512 MB |
| Jumbo Frame Support | Yes |
| Processor | : 1.2 GHz |
| RAM | 8 GB DDR2 SDRAM |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, NTP |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPF for IPv6, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, MPLS |
| Subtype | 100 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, WEEE, CSA C22.2 No. 60950-1, EN 60825-1, EN 300 386 |
| Rack Mounting Kit | Included |
| Power | |
| Max Supported Qty | 6 |
| Power Device | Internal power supply (not installed) |
| Power Provided | 2500 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
