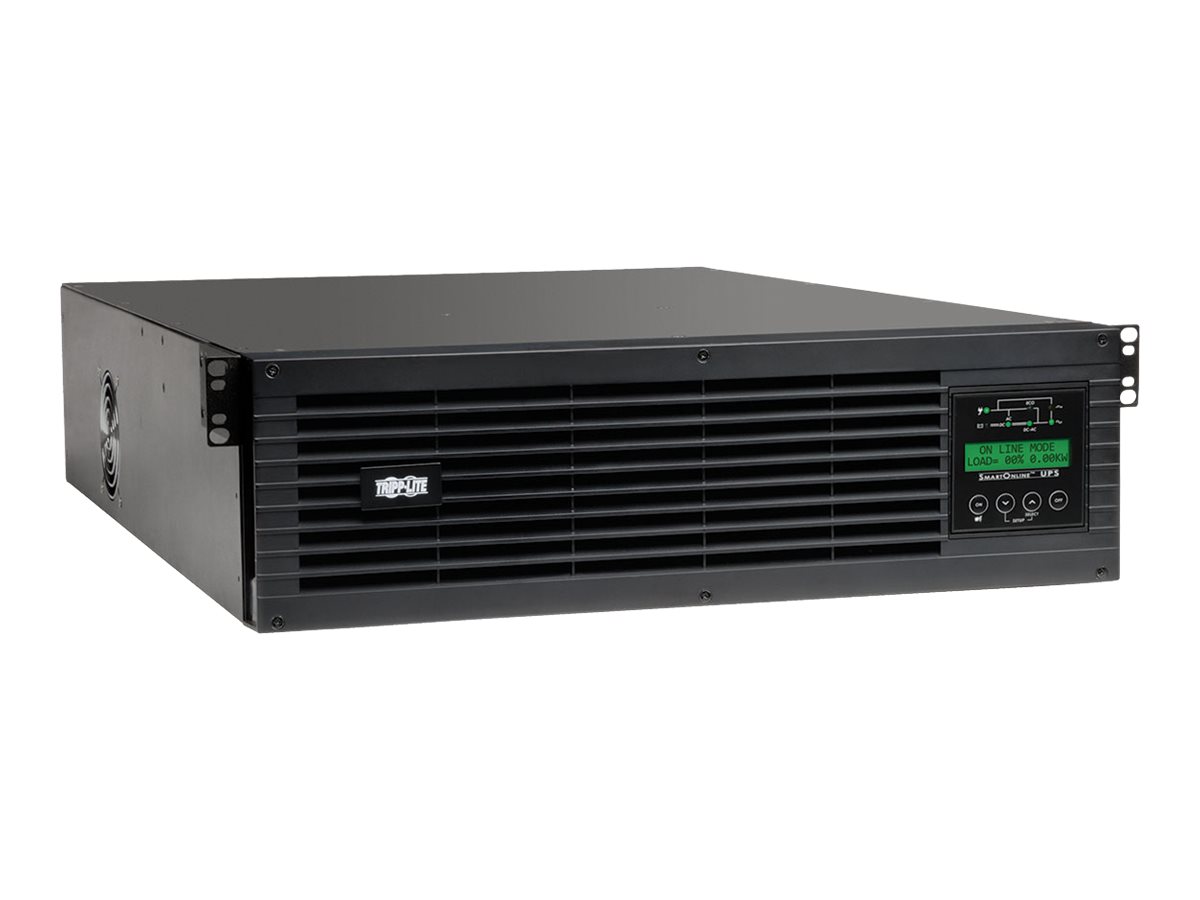

Tripp Lite - UPS (rack-mountable)

MSRP$3,468.82

$2,283.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
24 A AC 100/110/115/120/127 V 2.7 kW 3000 VA Ethernet 10/100, RS-232, USB

Tripp Lite - UPS (rack-mountable)

24 A
AC 100/110/115/120/127 V
2.7 kW
3000 VA
Ethernet 10/100, RS-232, USB
output connectors: 9
3U
19"

Additional Details
Price:	$2,283.00
MSRP:	$3,468.82
Mfr Part #:	SU3000RTXLCD3U
SHI Part #:	26420438
Category:	Rechargeable batteries
UNSPSC:	26111701
Manufacturer:	Eaton
Product Type:	Hardware

General Information
Category	Rechargeable batteries
Description	Tripp Lite - UPS (rack-mountable) - 24 A - AC 100/110/115/120/127 V - 2.7 kW - 3000 VA - Ethernet 10/100, RS-232, USB - output connectors: 9 - 3U - 19"
Manufacturer	Eaton
MSRP	$3,468.82
UNSPSC	26111701
Main Specifications
Dimensions & Weight / Depth	66 cm
Dimensions & Weight / Height	13.2 cm
Dimensions & Weight / Weight	33.6 kg
Dimensions & Weight / Width	13.3 cm
Header / Brand	Tripp Lite
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100 RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	9
Power Device / Power Capacity (VA)	3000 VA
Power Device / UPS Technology	On-line
Power Device / Voltage Required	AC 100/110/115/120/127 V
Product Type	UPS
Service & Support / Type	2-year warranty
Battery
Recharge Time	3 hours
Run Time (Up To)	4 min at full load 11 min at half load
Type	Expandable
Voltage Provided	72 V
Dimensions & Weight
Depth	66 cm
Height	13.2 cm
Weight	33.6 kg
Width	13.3 cm
Dimensions & Weight (Shipping)
Shipping Depth	83.9 cm
Shipping Height	30.4 cm
Shipping Weight	55.3 kg
Shipping Width	58.4 cm
Environmental Parameters
Humidity Range Operating	5 - 95% RH (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	50 dBA
Expansion / Connectivity
Expansion Slots	1 (total) / 0 (free) x expansion slot
Interfaces	1 x management (USB) - 4 pin USB Type B 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) - RJ-11 1 x management (Fast Ethernet) - RJ-45 1 x monitoring - 6 pin mini-DIN (PS/2 style) 1 x management - 8 pin mini-DIN
General
Device Type	UPS - rack-mountable
Height (Rack Units)	3U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Cables Included	Power cable - external - 3 m USB cable - external Serial cable - external EPO cable - external
Compliant Standards	CSA, UL 1778, RoHS, FCC Part 15 A, EMI
Equipment Protection Value	250000 US Dollars
Features	Audible alarm, LCD display, LED indicators, noise suppression, overvoltage protection, built-in bypass switch, undervoltage correction, cold-start function, cooling fan, automatic shut down, hot-swappable batteries, no load operation & brown-out protection
Rack Mounting Kit	Included
Networking
Remote Management Interface	Ethernet 10/100, RS-232, USB
Power Device
Circuit Protection	Circuit breaker
Dataline Surge Protection	Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Efficiency	98%
Frequency Provided	50/60 Hz
Frequency Required	50/60 Hz
Input Connectors	1 x power NEMA L5-30P
Input Voltage	AC 100/110/115/120/127 V
Max Electric Current	24 A
Output Voltage	AC 100/110/115/120/127 V ± 2% - 50/60 Hz
Output Waveform	Sinewave
Power Capacity	2.7 kW / 3000 VA
Power Factor (PF)	0.9
Power Output Connectors Details	4 x power NEMA 5-15R - 120 V 4 x power NEMA 5-15/20R - 120 V 1 x power NEMA L5-30R - 120 V
Surge Energy Rating	570 Joules
Surge Suppression	Yes
UPS Technology	On-line
Software / System Requirements
Software Included	TrippLite PowerAlert
Sustainability Information
ENERGY STAR	Yes
