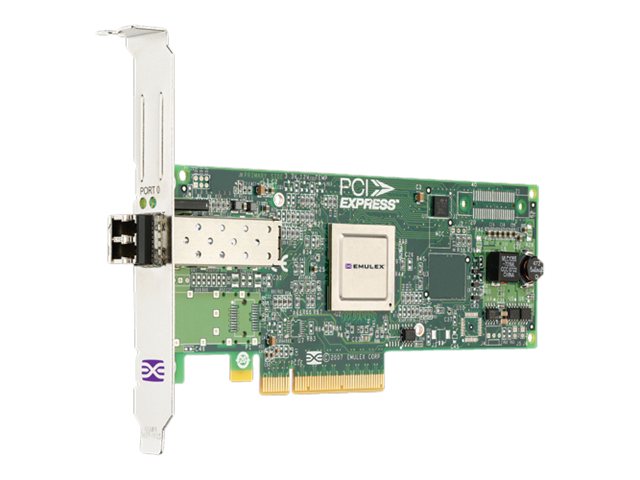

Lenovo ThinkServer LPe1250
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Lenovo ThinkServer LPe1250
- Network adapter
- PCIe 2.0 x8
- 8Gb Fibre Channel
- for ThinkServer RD340; RD350; RD440; RD450; RD530; RD540; RD630; RD640; RD650; TD340
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 0C19476 |
| SHI Part #: | 26661491 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Lenovo ThinkServer LPe1250 - Network adapter - PCIe 2.0 x8 - 8Gb Fibre Channel - for ThinkServer RD340; RD350; RD440; RD450; RD530; RD540; RD630; RD640; RD650; TD340 |
| Manufacturer | Lenovo |
| MSRP | $1,049.99 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.8 cm |
| Dimensions & Weight / Height | 6.9 cm |
| Header / Brand | Lenovo |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 8Gb Fibre Channel (Short Wave) |
| Networking / Data Transfer Rate | 8.5 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Compatibility Information | |
| Designed For |
|
| Dimensions & Weight | |
| Depth | 16.8 cm |
| Height | 6.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Compatible Slots | 1 x PCI Express 2.0 x8 |
| Interfaces | 1 x 8Gb Fibre Channel (short wave) - LC multi-mode - x 2 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| PCI Specification Revision | PCIe 2.0 |
| Miscellaneous | |
| Compliant Standards | C-Tick, BSMI, CISPR 22 Class A, DHHS, VCCI Class A ITE, EN55024, EN55022 Class A, EMC, ICES-003 Class A, CSA C22.2, RoHS, EN 60950-1, FCC Part 15 A, MIC Class A |
| Networking | |
| Cabling Type | Fiber optic |
| Connectivity Technology | Wired |
| Data Link Protocol | 8Gb Fibre Channel (Short Wave) |
| Data Transfer Rate | 8.5 Gbps |
| Fibre Channel | FC-AL-2, FC-DA, FC-FLA, FC-PLDA, FC-Tape, FC-SP, FCP, FCP-2, FC-FS-2, FCP-3, FC-LS, FC-PI-4 |
| Ports | 8Gb Fibre Channel |
| Software / System Requirements | |
| OS Required | Novell NetWare, Linux, Microsoft Windows |
