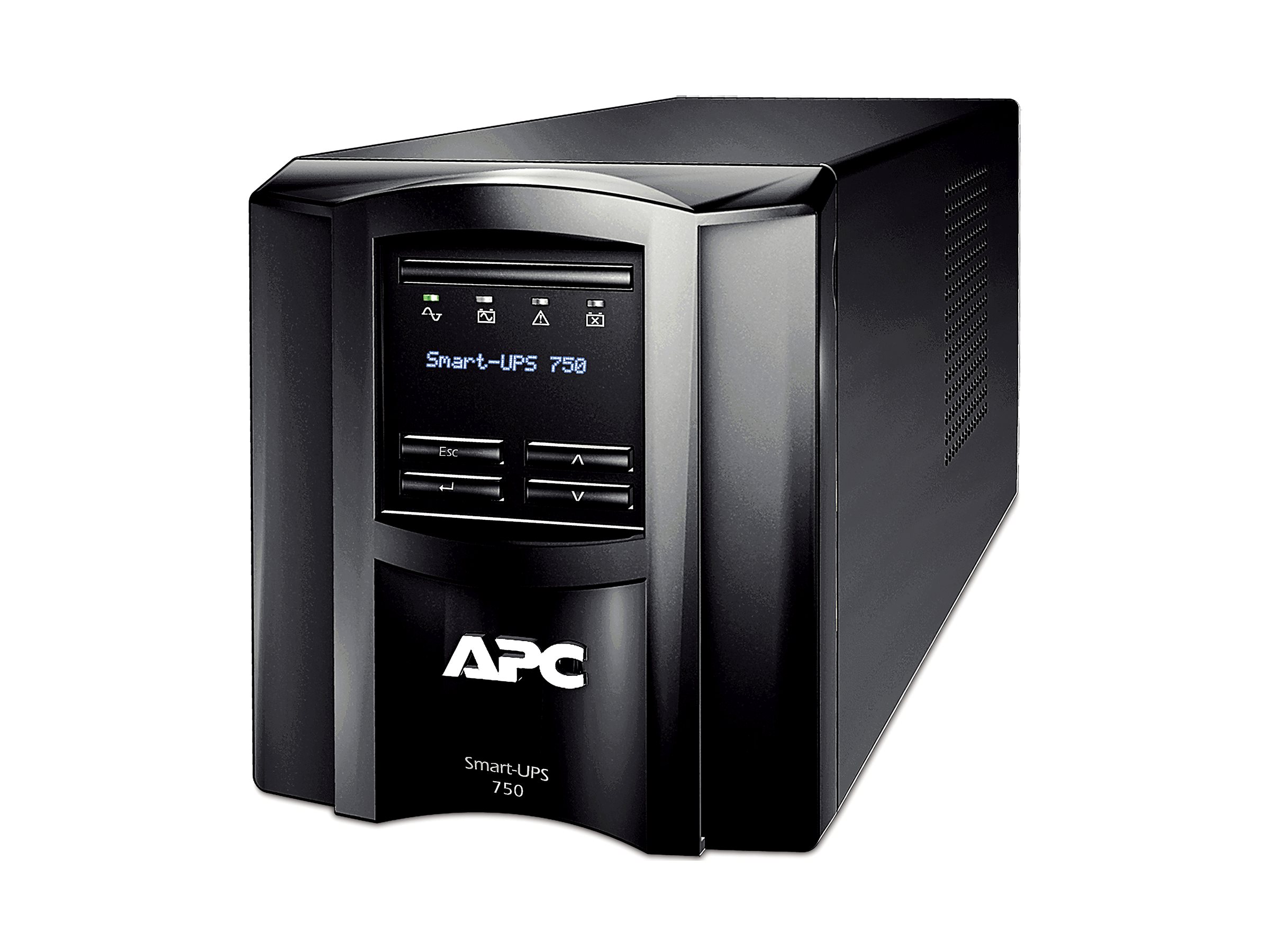

APC SMART-UPS 750VA LCD 100V
MSRP$1,410.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC SMART-UPS 750VA LCD 100V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,410.00 |
| Mfr Part #: | SMT750J |
| SHI Part #: | 27533496 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC SMART-UPS 750VA LCD 100V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $1,410.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 35.9 cm |
| Dimensions & Weight / Height | 16.7 cm |
| Dimensions & Weight / Weight | 13.2 kg |
| Dimensions & Weight / Width | 14 cm |
| Header / Brand | APC |
| Header / Country Kits | Japan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 750 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 100 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Quantity | 1 |
| Recharge Time | 4 hours |
| Run Time (Up To) | 5 min at full load |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 35.9 cm |
| Height | 16.7 cm |
| Weight | 13.2 kg |
| Width | 14 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 49.9 cm |
| Shipping Height | 30.1 cm |
| Shipping Weight | 14.2 kg |
| Shipping Width | 27.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - external |
| Localization | Japan |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | UL 1449, UL 1778, VCCI Class A ITE, RoHS Exemption 7b, REACH |

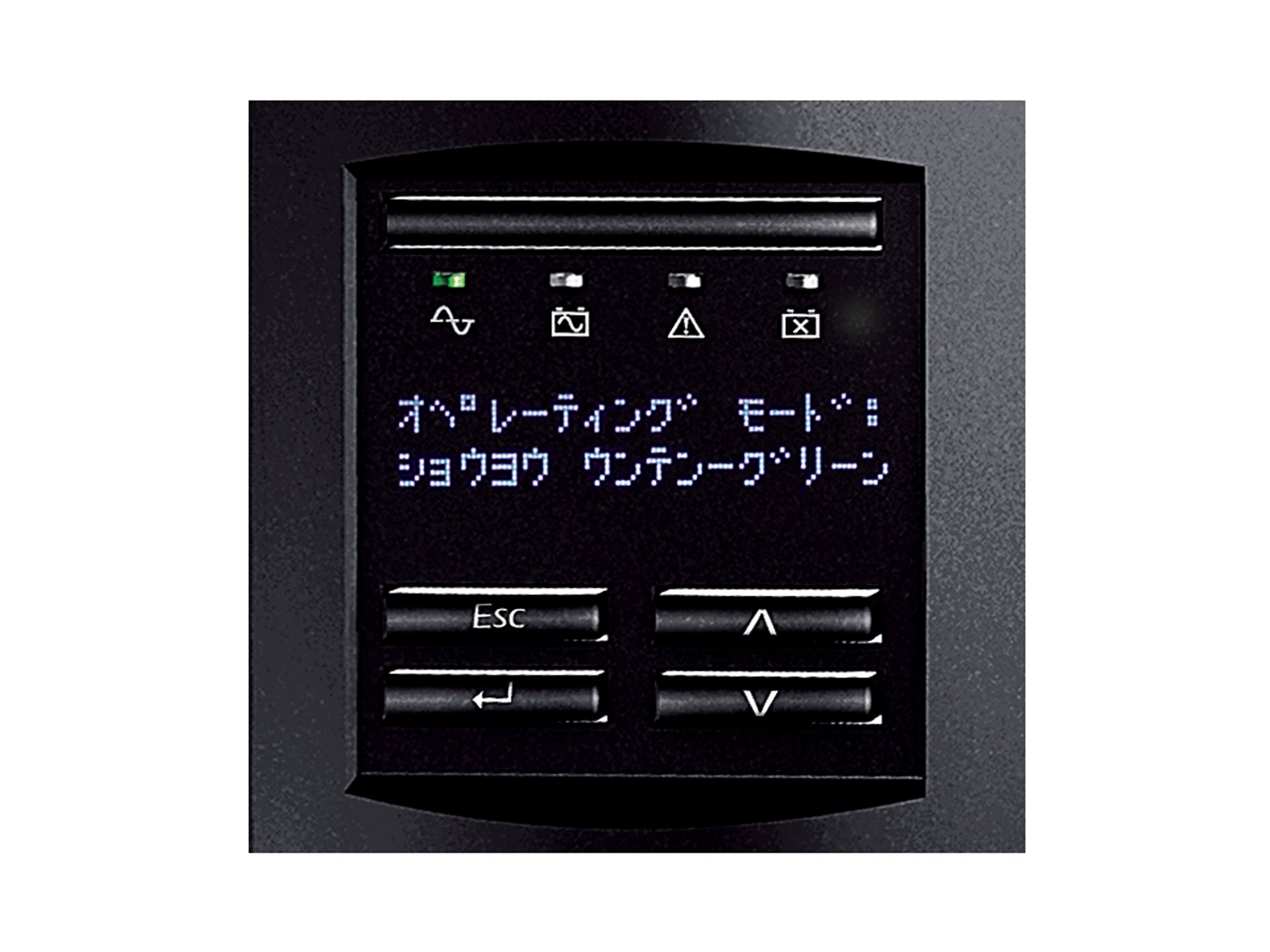

| Features | Audible alarm, LCD display |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 47 - 53 / 57 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15 |
| Input Voltage | AC 100 V |
| Input Voltage Range | AC 80 - 123 V |
| Input Voltage Range (Adjustable) | AC 70 - 125 V |
| Output Voltage | AC 100 V ± 5% - 47 - 53 / 57 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 500 watt / 750 VA |

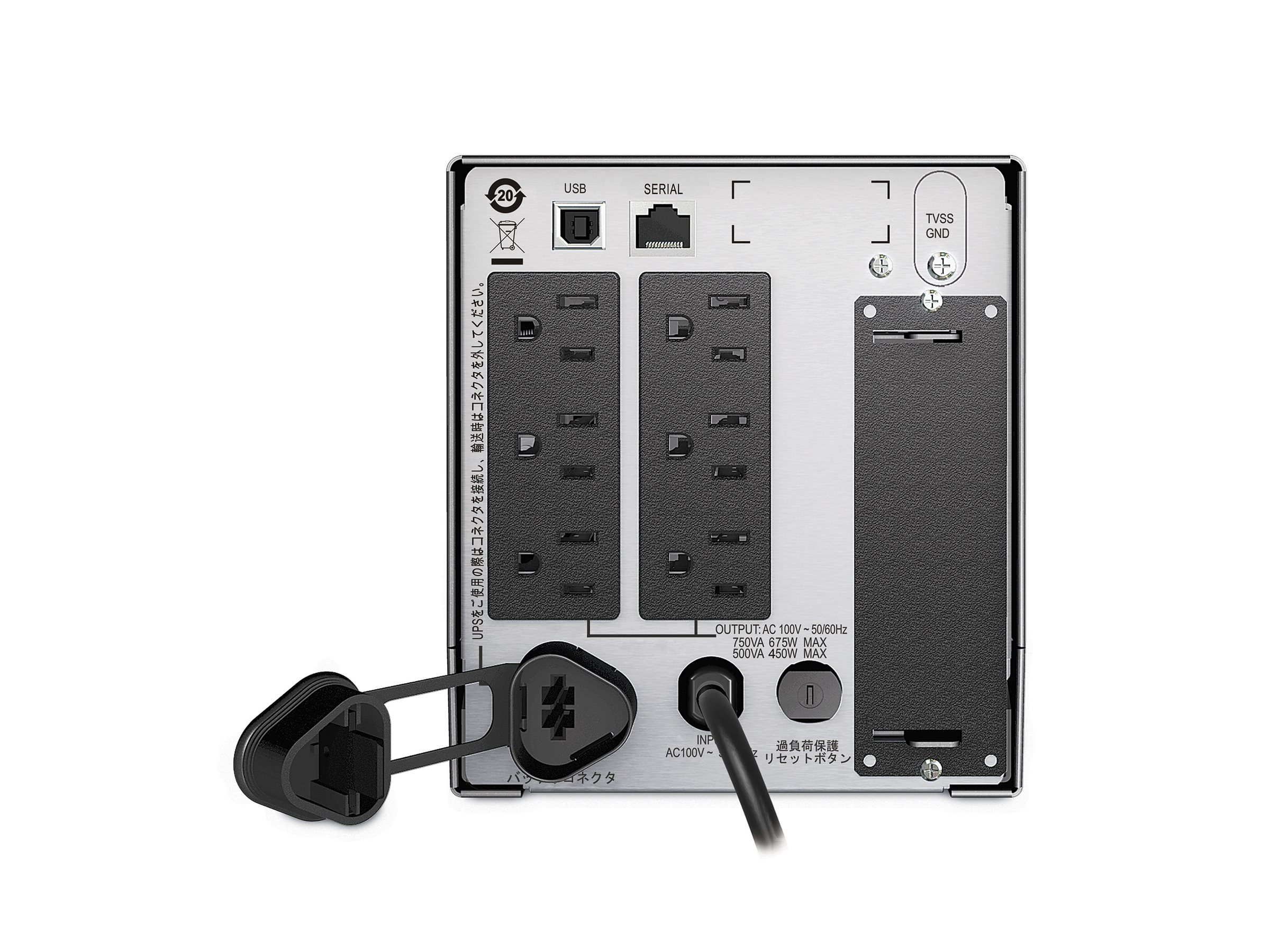

| Power Output Connectors Details | 6 x power NEMA 5-15 |
| Surge Energy Rating | 540 joules |
| Surge Response Time | 0 ns |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
