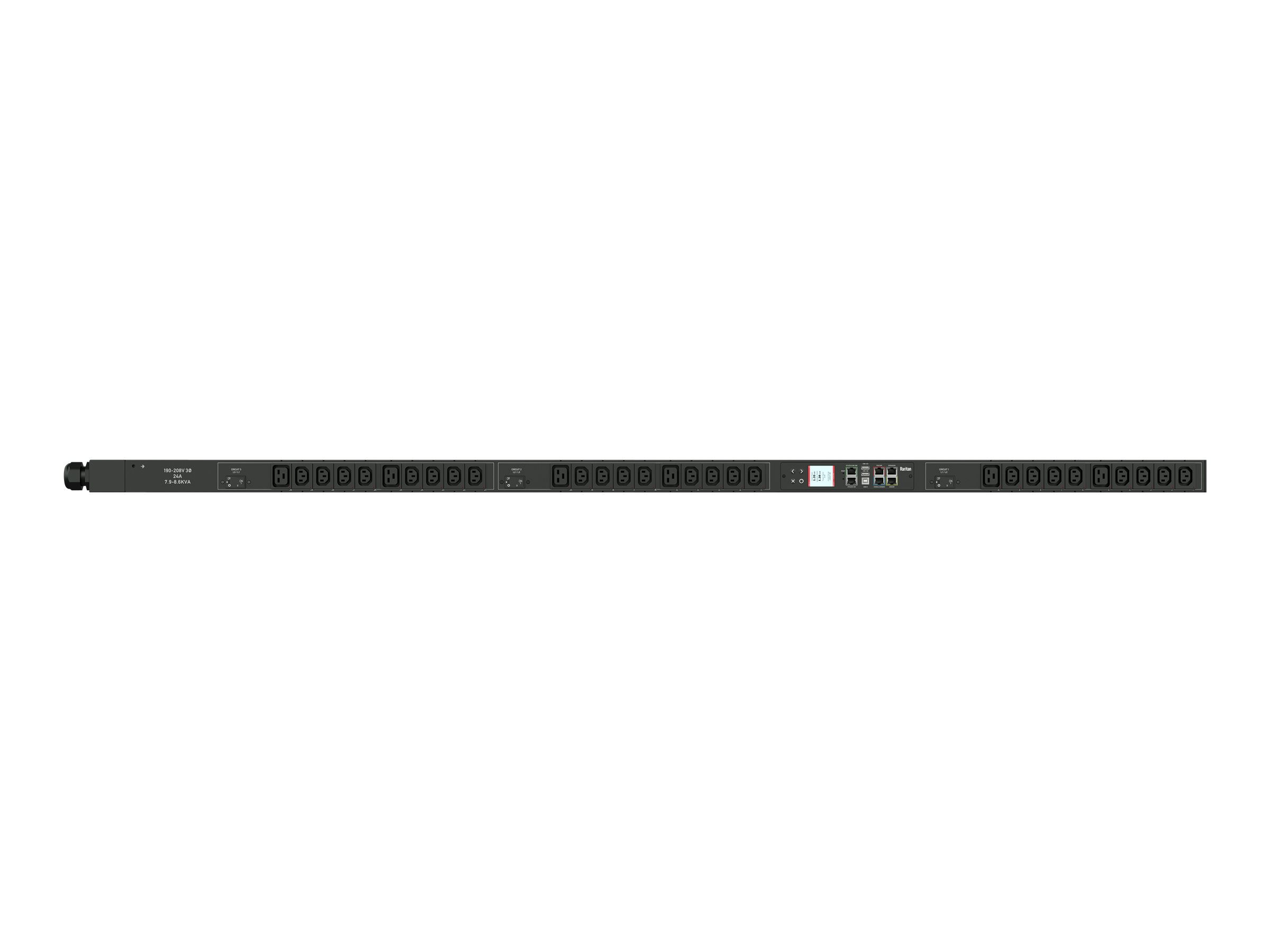

Raritan PX3-5664V-C5
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Raritan PX3-5664V-C5
- Power distribution unit (rack-mountable)
- AC 208 V
- 8600 VA
- 3-phase delta
- Ethernet 10/100/1000, RS-232
- input: NEMA L21-30P
- output connectors: 30 (24 x IEC 60320 C13, 6 x IEC 60320 C19)
- 0U
- 3 m cord
- red
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5664V-C5K1 |
| SHI Part #: | 29955593 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX3-5664V-C5 - Power distribution unit (rack-mountable) - AC 208 V - 8600 VA - 3-phase delta - Ethernet 10/100/1000, RS-232 - input: NEMA L21-30P - output connectors: 30 (24 x IEC 60320 C13, 6 x IEC 60320 C19) - 0U - 3 m cord - red |
| Manufacturer | Legrand |
| MSRP | $2,801.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 7.1 kg |
| Dimensions & Weight / Width | 5.2 cm |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Red |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 30 |
| Power Device / Power Capacity (VA) | 8600 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Weight | 7.1 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 205.5 cm |
| Shipping Weight | 9.7 kg |
| Shipping Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Red |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, cULus, ICES-003, FCC Part 15 A, RoHS |
| Features | Vertical orientation, 16MB SPI Flash, active power meter, current meter, energy meter, power factor meter, real power meter, voltage meter, cascadable, environmental sensor ready, LCD display, metering per input line, ISO/IEC 62053-21 1% metering accuracy, Raritan SecureLock Ready, power cable IP44 compliant, bottom-bottom feed cord entry, remote outlet switching, removable controller, metering per branch circuit breaker, metering per output receptacle, 3 x LEGBXA66-20 overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, JSON-RPC, SNMP 3, CLI, HTTPS, Modbus, SMTP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 190 - 208 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 8600 VA |
| Power Capacity Details | 7.9 kVA at 190 V, 8.6 kVA at 208 V |
| Power Output Connectors Details |
|
