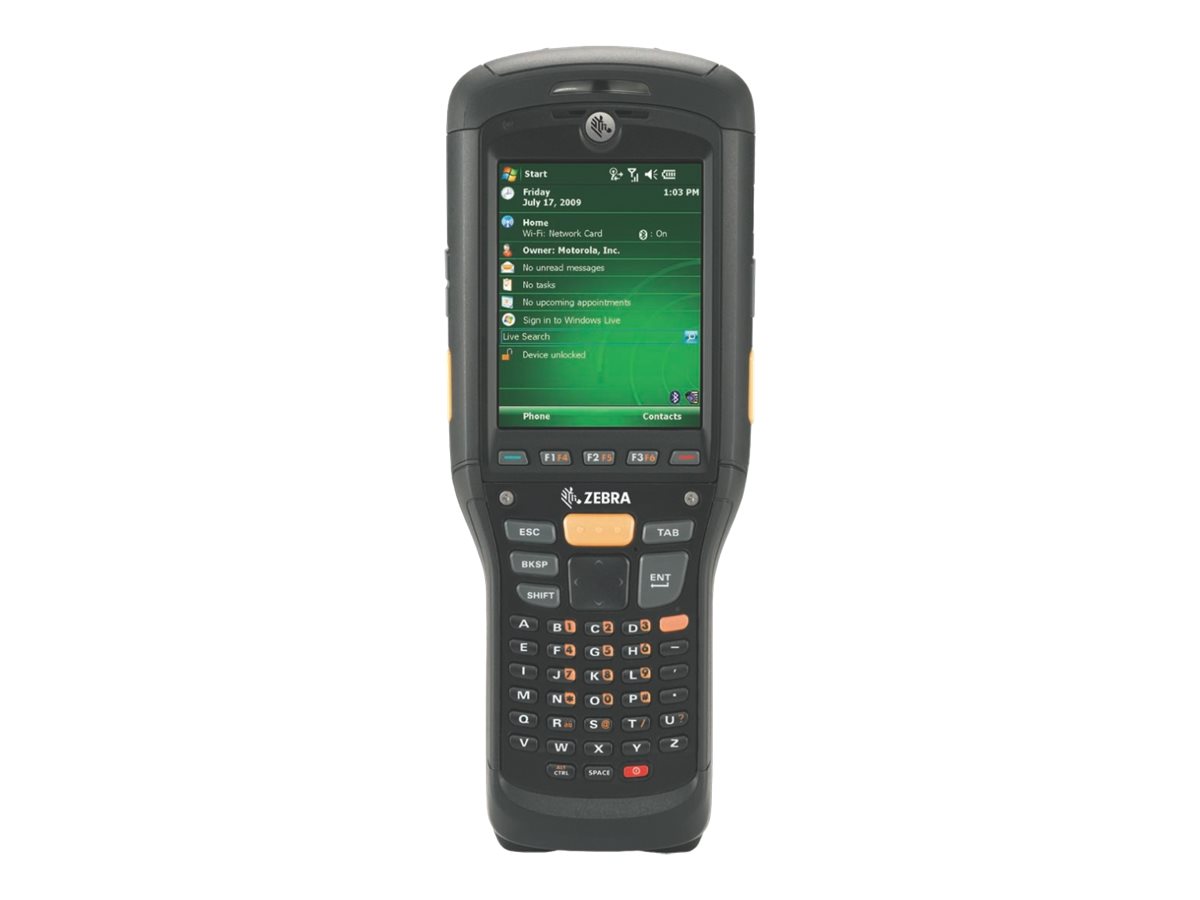

Zebra MC9590 - Data collection terminal
MSRP$2,695.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Zebra MC9590 - Data collection terminal
- rugged
- Win Mobile 6.5
- 1 GB
- 3.7" color TFT (640 x 480)
- front camera
- barcode reader
- (2D imager)
- microSD slot
- Wi-Fi, Bluetooth
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,695.00 |
| Mfr Part #: | MC9590-KD0DAD00100 |
| SHI Part #: | 30497927 |
| Category: | PDAs or pen-based computers |
| UNSPSC: | 43211504 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | PDAs or pen-based computers |
| Description | Zebra MC9590 - Data collection terminal - rugged - Win Mobile 6.5 - 1 GB - 3.7" color TFT (640 x 480) - front camera - barcode reader - (2D imager) - microSD slot - Wi-Fi, Bluetooth |
| Manufacturer | Zebra Technologies |
| MSRP | $2,695.00 |
| UNSPSC | 43211504 |
| Main Specifications | |
| Audio Input / Type | Microphone |
| Barcode / Barcode Reader | Yes |
| Dimensions & Weight / Depth | 5.08 cm |
| Dimensions & Weight / Height | 23.36 cm |
| Dimensions & Weight / Weight | 623 g |
| Dimensions & Weight / Width | 8.89 cm |
| Display / Diagonal Size | 3.7 in |
| Display / Diagonal Size (metric) | 9.4 cm |
| Display / Native Resolution | 640 x 480 |
| GPS System / Navigation | GPS receiver |
| Handheld Type | Data collection terminal |
| Header / Brand | Zebra |
| Input Device / Type |
|
| Miscellaneous / Product Color | Black |
| Networking / Wireless Connectivity |
|
| OS Provided / Type | Microsoft Windows Mobile 6.5 |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 806 MHz |
| Service & Support / Type | 1-year warranty |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| Battery | |
| Capacity | 4800 mAh |
| Technology | Lithium ion |
| Communications | |
| Security Protocols & Features | LEAP, TLS, WPA2, 802.1x, EAP-TLS, EAP-FAST, WPA2-Enterprise, MS-CHAPv2, EAP-GTC |
| Wireless Connectivity | 802.11a/b/g, Bluetooth 2.1 EDR |
| Dimensions & Weight | |
| Depth | 5.08 cm |
| Height | 23.36 cm |
| Weight | 623 g |
| Width | 8.89 cm |
| Display | |
| Resolution | 640 x 480 |
| Type | 3.7" color TFT - LED backlight |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Min Storage Temperature | -40 °C |
| Expansion and Connectivity | |
| Expansion Slots | 1 x microSDHC |
| Interfaces |
|
| General | |
| Operating System | Microsoft Windows Mobile 6.5 |
| Product Type | Data collection terminal - rugged |
| Input Device | |
| Type | Touchscreen, phone keypad |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Memory | |
| Max Supported Capacity | 32 GB |
| RAM | 256 MB |
| Storage | 1 GB |
| Supported Flash Memory Cards | microSD, microSDHC |
| Miscellaneous | |
| Compliant Standards | IEC 60529 IP67, EN55022 Class B, ICES-003 Class B, FCC Part 15.247, RSS-210, RoHS, AS/NZS 4268, FCC Part 15.407, ARIB STD-T66, ARIB STD-T70, ARIB STD-T71, ARIB STD-T33, ARIB STD-T56, EN 50121-4, EN 50360, AS/NZS CISPR 22, EN 300 328, EN 50121-3-2, IEC/UL/CSA/EN 60950-1, EN 301 489-7, EN 301 893, EN 301 489-19, EN 301 489-17, EN 301 489-24 |
| Features | Resistive touch screen |
| Sensors | 3-axis accelerometer |
| Vibrating Alert | Yes |
| Multimedia | |
| Audio | Microphone, speaker |
| Navigation System | |
| Receiver | GPS |
| Processor | |
| Processor | Marvell PXA320 |
| Processor Clock Speed | 806 MHz |
| Rear Camera | |
| Focus Adjustment | Automatic |
| Sensor Resolution | 3 Megapixel |
