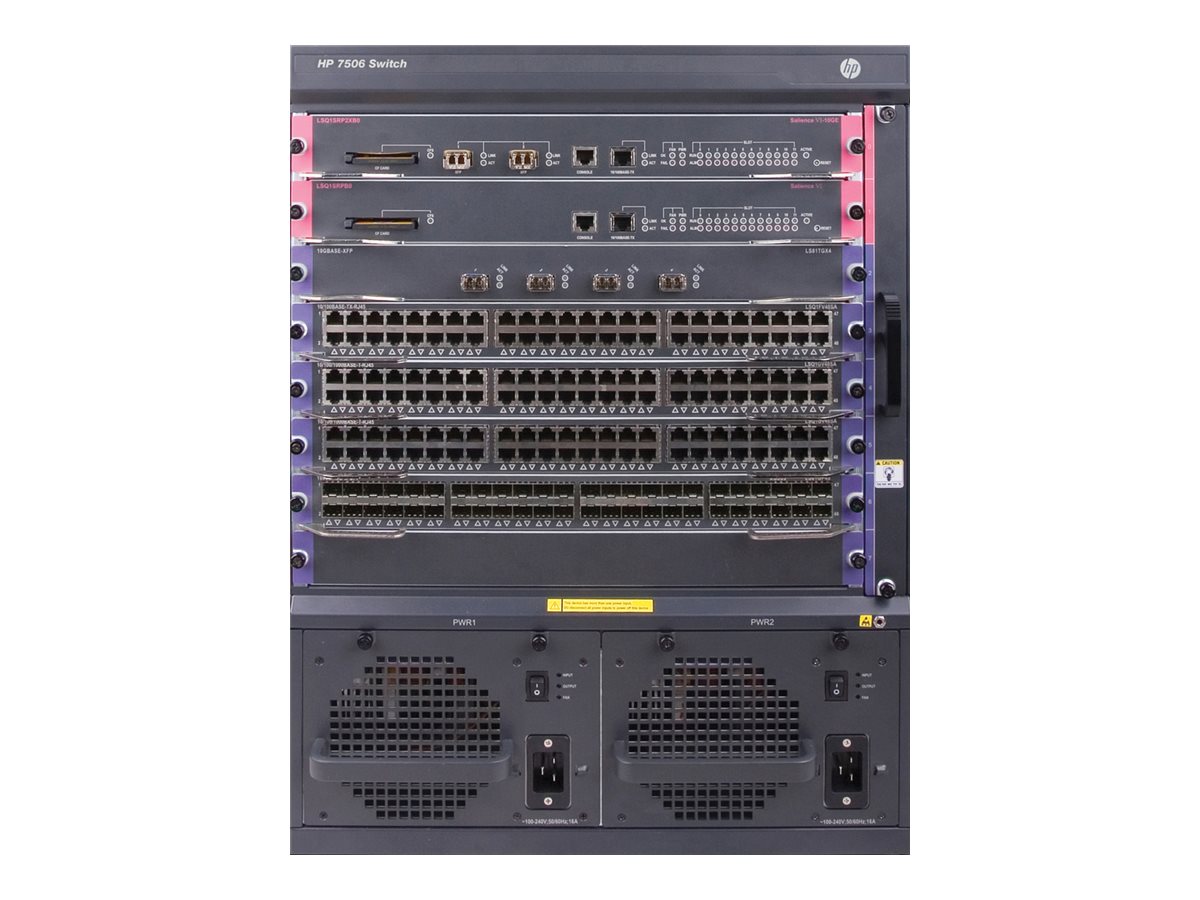

HPE FlexNetwork 7506
MSRP$39,088.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE FlexNetwork 7506
- Switch
- managed
- 8 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $39,088.00 |
| Mfr Part #: | JH332A |
| SHI Part #: | 31186285 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE FlexNetwork 7506 - Switch - managed - 8 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $39,088.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 42 cm |
| Dimensions & Weight / Height | 57.5 cm |
| Dimensions & Weight / Weight | 93.9 kg |
| Dimensions & Weight / Width | 43.6 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 8 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 42 cm |
| Height | 57.5 cm |
| Weight | 93.9 kg |
| Width | 43.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 8 (total) / 8 (free) x expansion slot |
| Installed Modules Qty (Max) | 2 (installed) / 8 (max) |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Rack-mountable 13U |
| Encryption Algorithm | MD5, SSL, TLS |
| Features | Flow control, firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, TFTP support, ACL support, QoS, Jumbo Frames support, MLD snooping |
| Performance |
|
| Ports | 8 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ |
| Processor | MIPS64 |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng |
| Subtype | 40 Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, IEC 61000-3-2, IEC 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, ANSI C63.4-2003, EN 61000-3-2:2006, VCCI Class A, EN 61000-3-3:1995+A1:2001+A2:2005, EMC 2004/108/EC, EN 60950-1/A11:2009, EN 300 386 V1.3.3, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA-C22.2 No. 60950-1 |
| Included Accessories | Fan tray |
| Power | |
| Max Supported Qty | 2 |
| Power Device | Internal power supply (not installed) |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | HP Web browser, HP Intelligent Management Center |
