Hardware Networking and Security Access Points and Bridges
Add to My Favorites
Access Points and Bridges

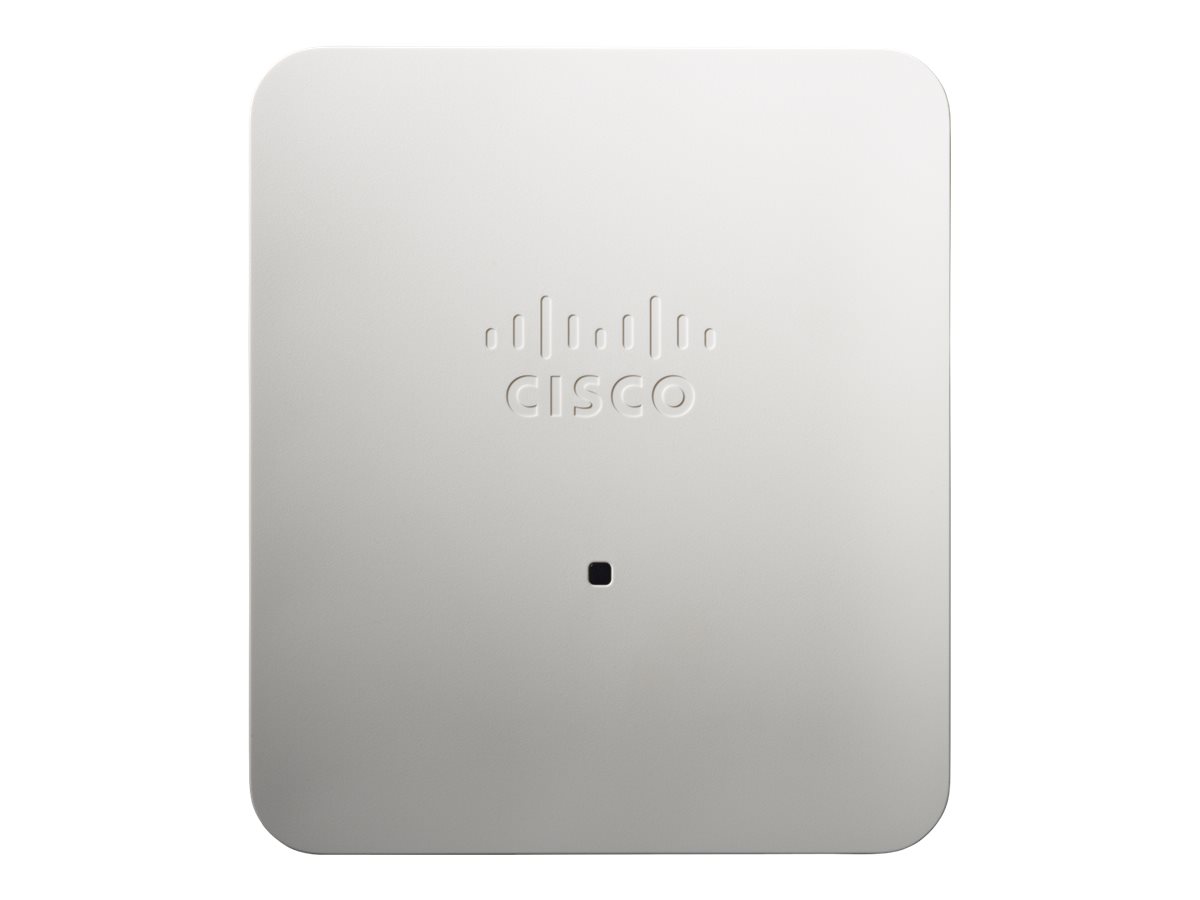

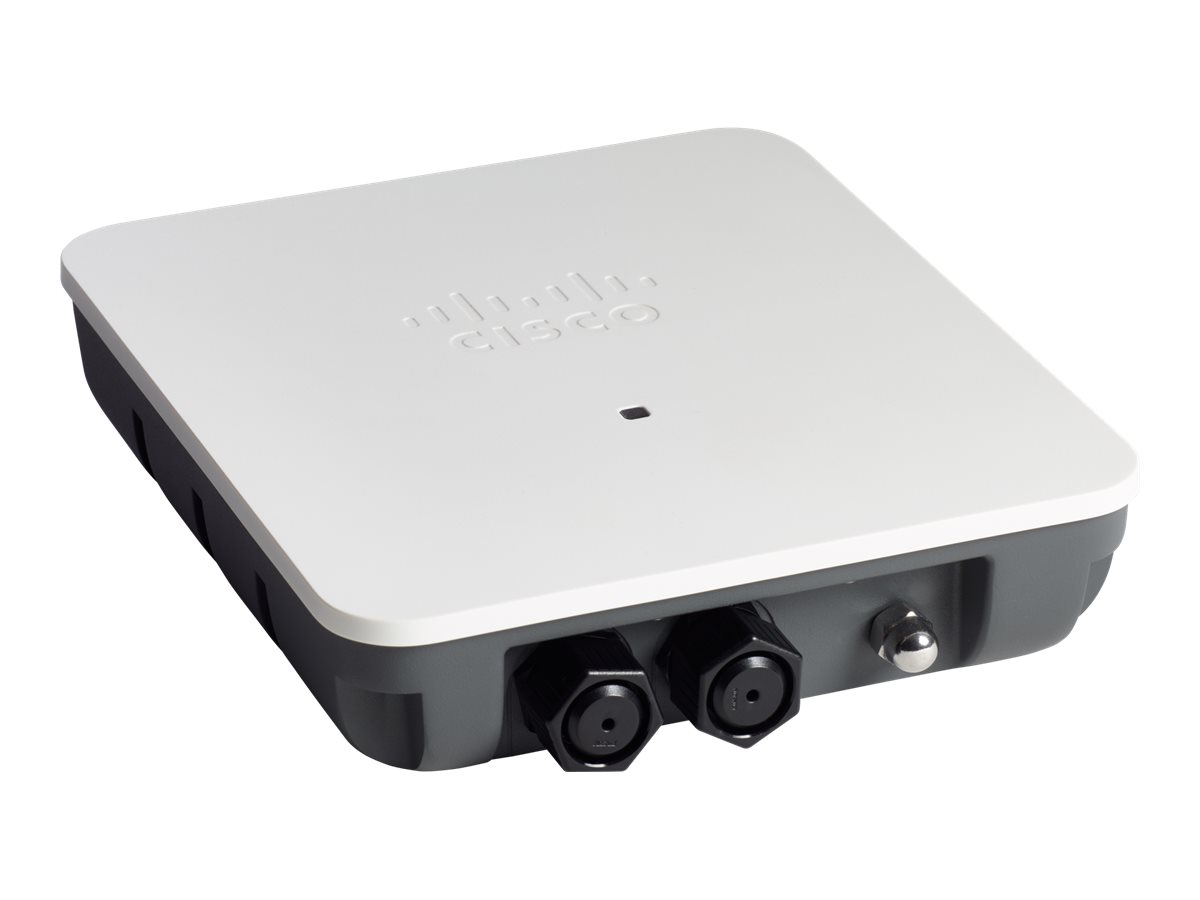

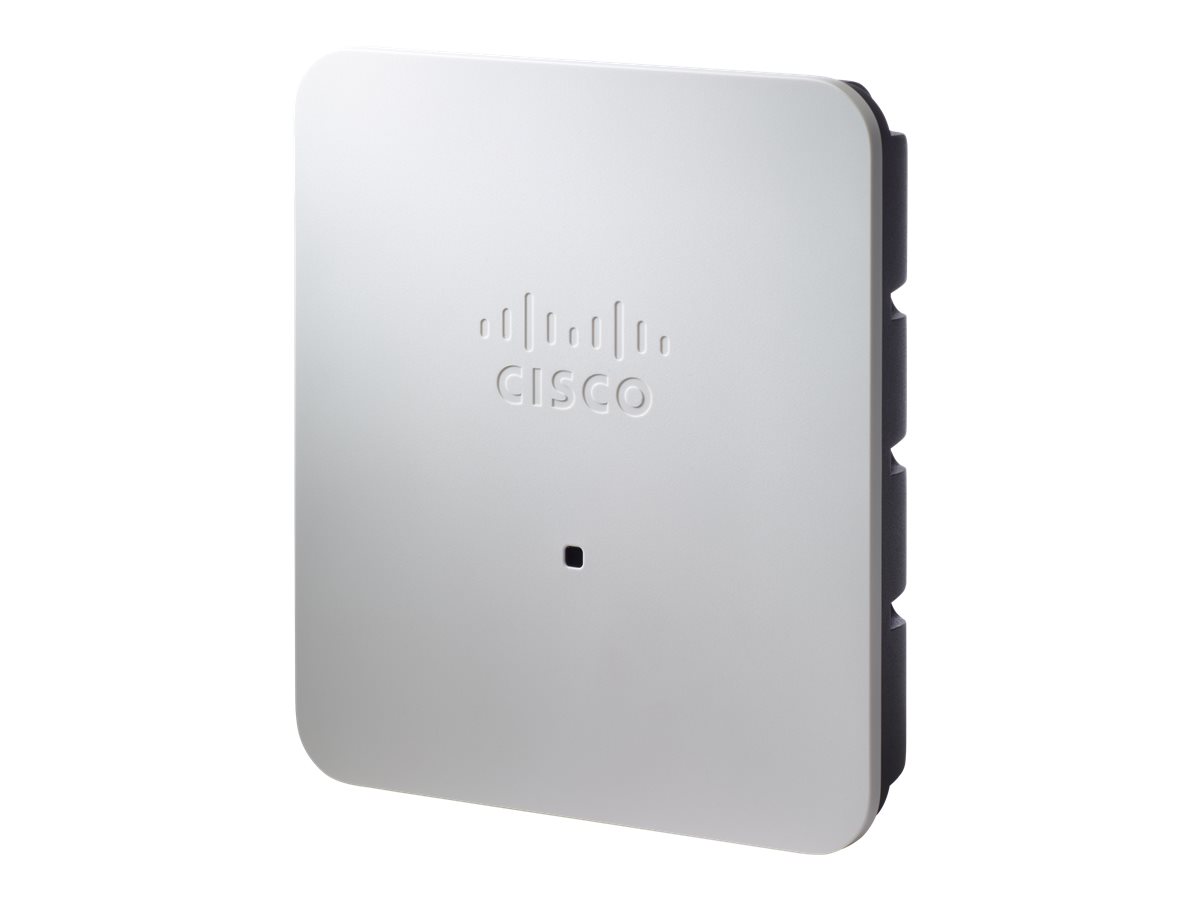

Cisco Small Business WAP571E

MSRP$682.85
$496.00
Cisco Small Business WAP571E
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Wireless access point
  • Wi-Fi 5
  • 2.4 GHz, 5 GHz
Cisco Small Business WAP571E
  • Wireless access point
  • Wi-Fi 5
  • 2.4 GHz, 5 GHz
  Additional Details
Price: $496.00
MSRP: $682.85
Mfr Part #: WAP571E-A-K9
SHI Part #: 31958606
Category: Wireless access point
UNSPSC: 43222640
Manufacturer: Cisco Systems
Product Type: Hardware
General Information
CategoryWireless access point
DescriptionCisco Small Business WAP571E - Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz
ManufacturerCisco Systems
MSRP$682.85
UNSPSC43222640
Main Specifications
Dimensions & Weight / Depth20 cm
Dimensions & Weight / Height5 cm
Dimensions & Weight / Weight1.35 kg
Dimensions & Weight / Width23 cm
Header / BrandCisco
Header / Country KitsUnited States
Networking / Connectivity TechnologyWireless
Networking / Data Link Protocol
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Data Transfer Rate1.9 Gbps
Networking / Form FactorExternal
Networking / TypeWireless access point
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Antenna
AntennaInternal
Antenna Qty6
Environmental Parameters
Humidity Range Operating10 - 85% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x 1000Base-T (PoE) - RJ-45
  • 1 x 1000Base-T - RJ-45
  • 2 x antenna
General
Depth20 cm
Device TypeWireless access point
Height5 cm
LocalizationUnited States
Ruggedized DesignOutdoor
Weight1.35 kg
Width23 cm
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Cables Included1 x network cable
Compliant StandardsICES-003, FCC Part 15.247, RSS-210, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, IP66, EMI, EN 300 328, EN 301 489-1, AS/NZS 4268.2003, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
Included AccessoriesWall/ceiling mounting plate
Networking
Authentication MethodRADIUS, Radio Service Set ID (SSID)
Capacity
  • Connection / user qty: 200
  • Concurrent users per radio: 50
  • Maximum number of access points (per cluster): 16
  • Maximum number of configured SSIDs: 16
  • Active clients (per cluster): 960
  • VLANs supported: 32
Compliant StandardsIEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Data Transfer Rate1.9 Gbps
Encryption AlgorithmWPA, WPA2, WPA-Enterprise, WPA2-Enterprise
FeaturesAuto-sensing per device, load balancing, VLAN support, Syslog support, E-mail alert, IPv6 support, DFS support, Wireless Distribution System (WDS) support, firmware upgradable, surge protection, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), event log, Access Control List (ACL) support, Quality of Service (QoS), Multiple SSID support, wireless bridge mode, reset button, IPv4 support, 3T3R MIMO technology, rogue access point detection, DHCP client, Energy Efficient Ethernet, rugged, 802.1x authentication, VoIP support, Link Aggregation, network diagnostics, SSID to VLAN mapping
Form FactorExternal
Frequency Band2.4 GHz, 5 GHz
Network / Transport ProtocolNTP, DHCP, Bonjour
Remote Management ProtocolSNMP 3, HTTP, HTTPS
Spread Spectrum MethodOFDM, DSSS
Status IndicatorsStatus
Power
Power Consumption Operational18 watt
Power Over Ethernet (PoE) SupportedPoE
Processor / Memory / Storage
Flash Memory128 MB
RAM256 GB
Software / System Requirements
OS ProvidedLinux
