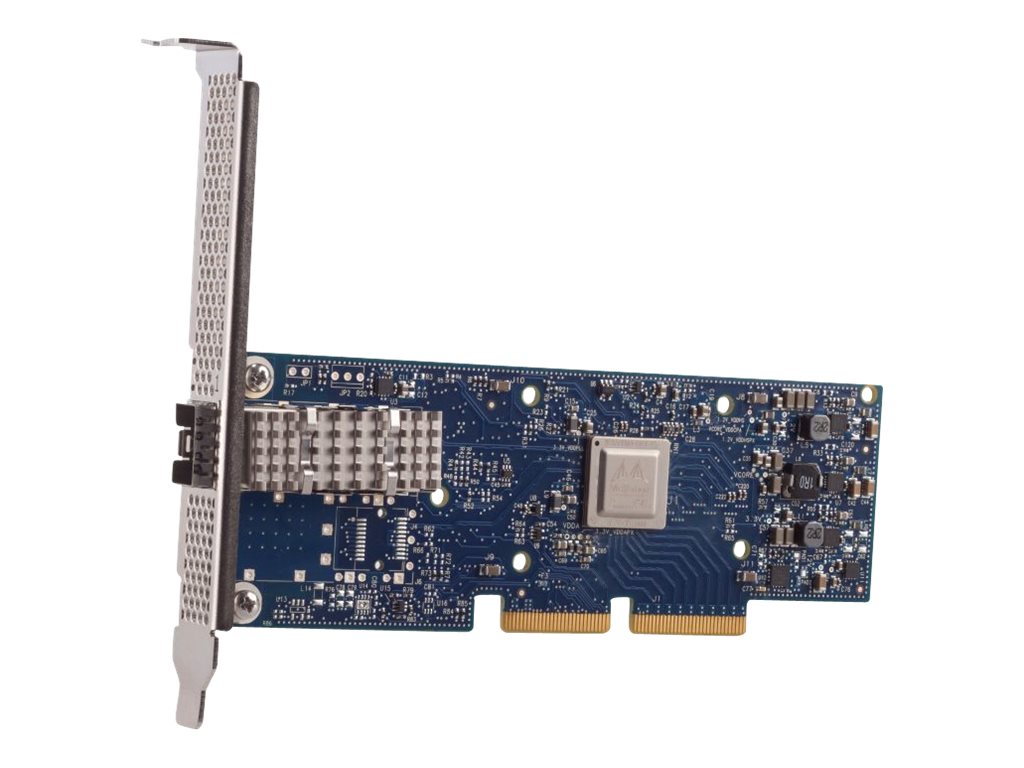

Mellanox ConnectX-4 Lx
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Mellanox ConnectX-4 Lx
- Network adapter
- ML2 low profile
- 25 Gigabit Ethernet x 1
- for ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX7820 Appliance; ThinkSystem SR650
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 00MN990 |
| SHI Part #: | 32445701 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Mellanox ConnectX-4 Lx - Network adapter - ML2 low profile - 25 Gigabit Ethernet x 1 - for ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX7820 Appliance; ThinkSystem SR650 |
| Manufacturer | Lenovo |
| MSRP | $479.00 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Header / Brand | Mellanox |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 25 Gigabit Ethernet |
| Networking / Data Transfer Rate | 25 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required |
|
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x 25Gb Ethernet - SFP28 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | Mezzanine LAN-on-Motherboard Generation 2 (ML2) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | CB, cTUVus, EMC, FCC, VCCI, ICES, RCM, RoHS |
| Included Accessories | Low-profile bracket |
| Networking | |
| Capacity |
|
| Compliant Standards | IEEE 1588v2, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3by |
| Connectivity Technology | Wired |
| Data Link Protocol | 25 Gigabit Ethernet |
| Data Transfer Rate | 25 Gbps |
| Features | MSI-X, Jumbo Frames support, RDMA support, XRC transport, DCT, UMR, ODP, SR-IOV, QoS, LSO, LRO, TCP/IP offloading, UDP/IP offloading, Ethernet remote boot, iSCSI remote boot, UEFI support, PXE support, MPLS support, VXLAN, NVGRE, NC-SI, SDN, Mellanox PeerDirect, Energy Efficient Ethernet, Link Aggregation, tagged VLAN, PFC, RSS |
| Network / Transport Protocol | TCP/IP, UDP/IP, NFS, SMB, uDAPL |
| Ports | 25 Gigabit Ethernet x 1 |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7 Update 2, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 12 SP1, VMware vSphere 5.5 (ESXi) Update 3, VMware vSphere 6.0 (ESXi) Update 2 |
