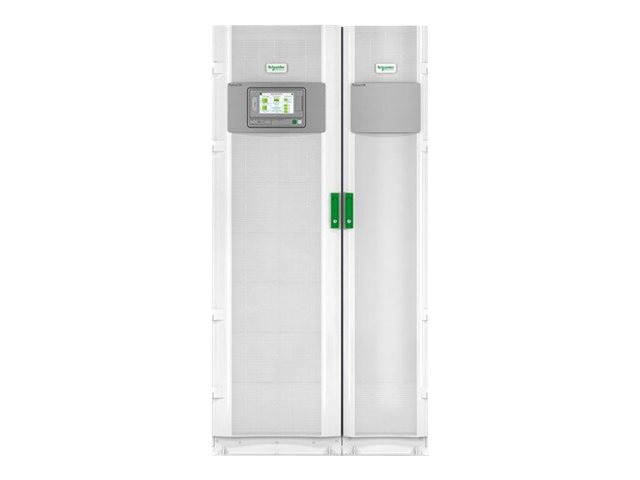

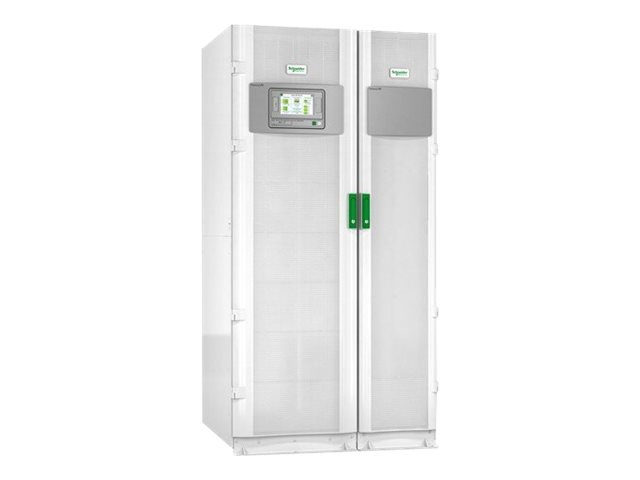

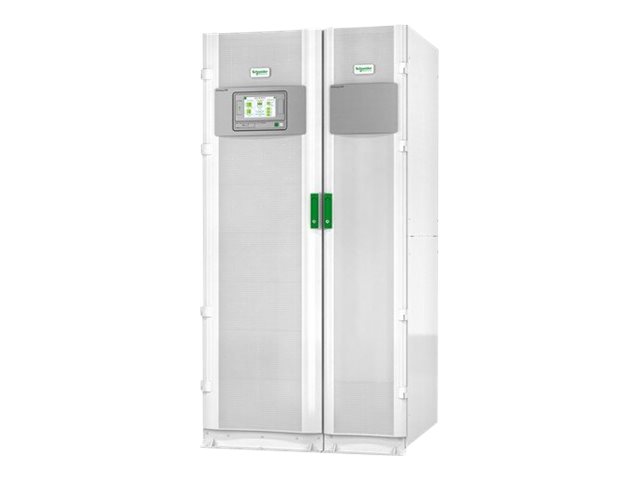

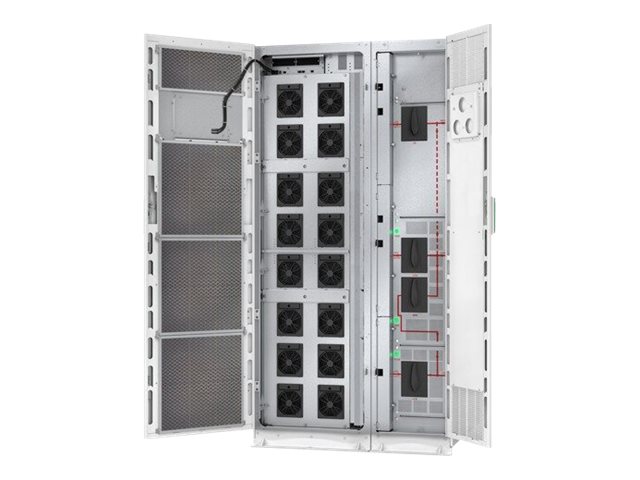

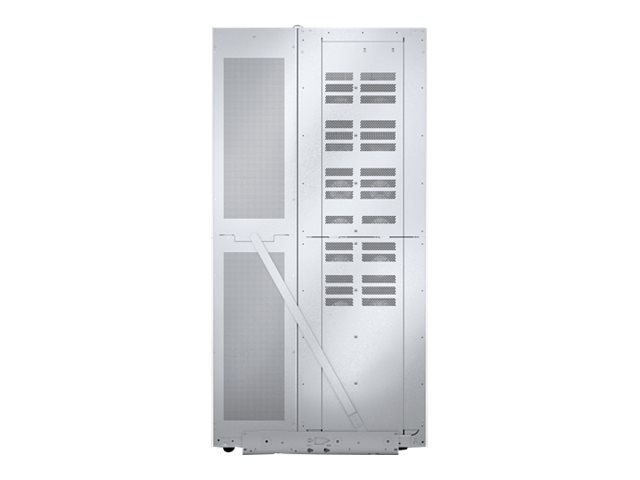

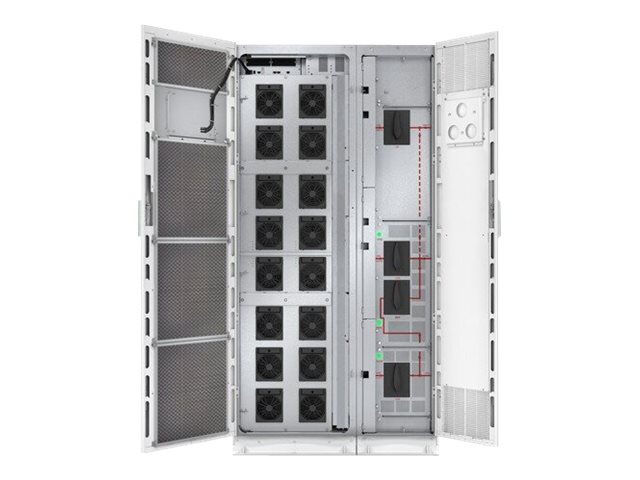

GALAXY VM 160 KVA UPS SINGLE 400-400 V WITH BACKFEED PROTECTION, START UP 5X8
MSRP$46,590.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
GALAXY VM 160 KVA UPS SINGLE 400-400 V WITH BACKFEED PROTECTION, START UP 5X8
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $46,590.00 |
| Mfr Part #: | GVMSB160KHS |
| SHI Part #: | 32909323 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | GALAXY VM 160 KVA UPS SINGLE 400-400 V WITH BACKFEED PROTECTION, START UP 5X8 |
| Manufacturer | APC by Schneider Electric |
| MSRP | $46,590.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 85.4 cm |
| Dimensions & Weight / Height | 197 cm |
| Dimensions & Weight / Weight | 699 kg |
| Dimensions & Weight / Width | 105.2 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 2 |
| Power Device / Power Capacity (VA) | 160000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 400 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Type | No battery |
| Dimensions & Weight | |
| Depth | 85.4 cm |
| Height | 197 cm |
| Weight | 699 kg |
| Width | 105.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 105.2 cm |
| Shipping Height | 215.6 cm |
| Shipping Weight | 744.5 kg |
| Shipping Width | 149 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 65 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SmartSlot |
| General | |
| Bundled Services | Start-Up Service 5X8 |
| Color | White |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | C-Tick, IEC 62040-1, IEC 62040-2, IEC 62040-3, IBC 2012, CBC 2013, OSHPD, RCM, UL 1778, VFI-SS-111, ISTA, EN 62040-1, EN 62040-2, EN 62040-3 |
| Features | Touch screen interface, internal bypass, audible alarm, emergency power off |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 4-wire (3PH + G) |
| Input Voltage | AC 400 V |
| Input Voltage Range | AC 320 - 456 / 320 - 480 / 320 - 498 V |
| Input Voltage Range (Adjustable) | AC 250 - 600 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 400 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 144 kW / 160000 VA |
| Power Output Connectors Details |
|
| UPS Technology | On-line |
| Sustainability Information | |
| ENERGY STAR | Yes |
