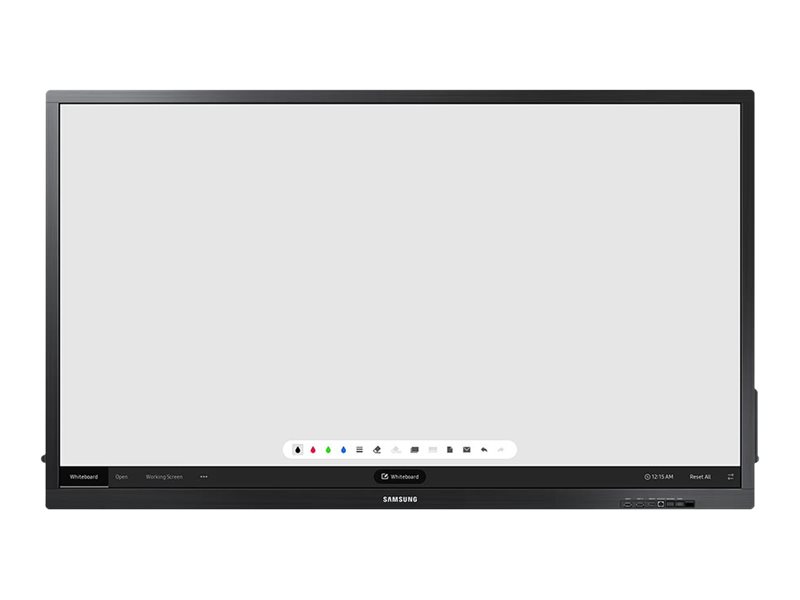

75 COMMERCIAL TOUCH DISPLAY
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
75 COMMERCIAL TOUCH DISPLAY
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | QB75H-TR |
| SHI Part #: | 34577366 |
| Category: | Touch screen monitors |
| UNSPSC: | 43211903 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Touch screen monitors |
| Description | 75 COMMERCIAL TOUCH DISPLAY |
| Manufacturer | Samsung |
| UNSPSC | 43211903 |
| Main Specifications | |
| C.P.U. | LCDTCH |
| Dimensions & Weight / Weight | 152.00 |
| Height | 019.00 |
| Length | 073.50 |
| UPC | 0887276248080 |
| Width | 045.50 |
| Audio System | |
| Additional Features | Down-firing Speaker, Bass Reflex Speaker System |
| Output Power / Total | 20 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x speaker - 10 Watt |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 46.7 cm |
| Height (Shipping) | 115.2 cm |
| Weight (Shipping) | 68.4 kg |
| Width (Shipping) | 186.5 cm |
| Display | |
| Additional Features | Infrared touch technology |
| Brightness | 300 cd/m² |
| Coating | Super Clear |
| Commercial Features | SMART Signage Platform, MagicInfo S5 Player, MagicIWB S5 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 120 Hz Refresh Rate |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | LED backlight |
| Operation Hours / Days | 16 / 7 |
| Resolution | 3840 x 2160 |
| Response Time | 8 ms |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Combined With | Touchscreen |
| Commercial Use | Yes - interactive |
| Depth | 8.68 cm |
| Diagonal Class | 75" |
| Dimensions | Without stand |
| Enclosure Color | Black |
| HDMI Ports Qty | 3 ports |
| Height | 101.21 cm |
| Operating System | Tizen OS 3.0 |
| PC Interface | DVI, DisplayPort |
| Picture Enhancements | Mega Contrast |
| Platform | Tizen OS |
| Power Consumption Operational | 370 Watt |
| Product Type | LED-backlit LCD flat panel display |
| Protection | Protection glass |
| Sensors | Temperature sensor |
| Series | QBH-TR Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Video Processor | Quad-Core |
| Weight | 54.8 kg |
| Width | 174.15 cm |
| Media Player | |
| Configuration | ARM Cortex-A72 Quad-Core ( 1.7 GHz ) - 3 GB LPDDR4 - 8 GB |
| Storage Drive Capacity | 8 GB |
| Supported Audio Formats | MP3, AC3, AC4 |
| Supported Pictures Formats | JPEG |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, AVC, H.264, H.263, VC-1, HEVC, VP9, MVC, VP8, AVS+, AVS |
| USB Port | Yes |
| USB Ports Qty | 4 |
| Miscellaneous | |
| Included Accessories | Stylus |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Power Device | Power supply |
| Stands & Mounts | |
| Flat Panel Mount Interface | 400 x 400 mm |
