Hardware Power Management

Power Management

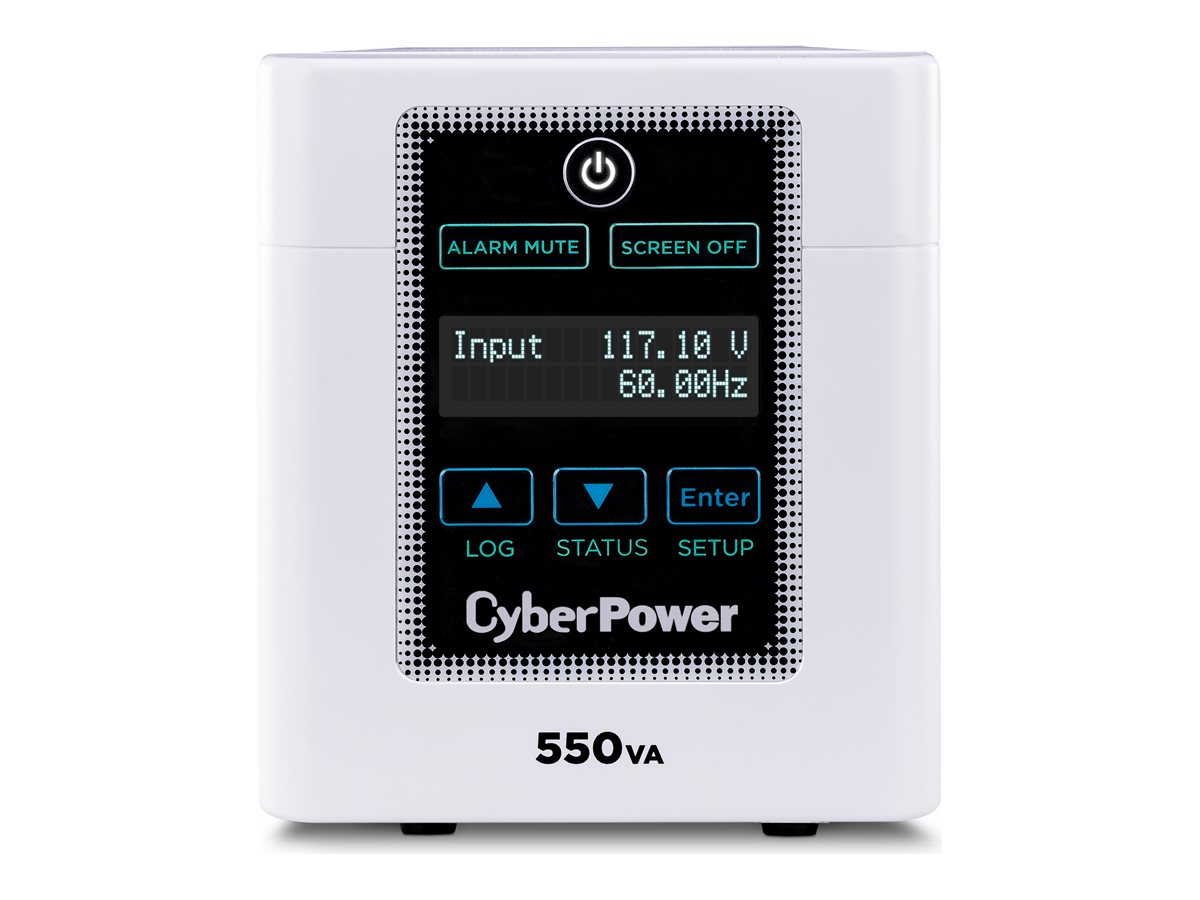

MEDICAL GRADE 550VA UPS 120V4X5-15R-HG 60601-1 3YR

MSRP$594.95

$540.00

MEDICAL GRADE 550VA UPS 120V4X5-15R-HG 60601-1 3YR

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
No quick details available - View Product Specs

MEDICAL GRADE 550VA UPS 120V4X5-15R-HG 60601-1 3YR

Additional Details
Price:	$540.00
MSRP:	$594.95
Mfr Part #:	M550L
SHI Part #:	34786429
Category:	Power conditioning equipment
UNSPSC:	39121000
Manufacturer:	CyberPower
Product Type:	Hardware

General Information
Category	Power conditioning equipment
Description	MEDICAL GRADE 550VA UPS 120V4X5-15R-HG 60601-1 3YR
Manufacturer	CyberPower
MSRP	$594.95
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	34.8 cm
Dimensions & Weight / Height	13.7 cm
Dimensions & Weight / Weight	13.7 kg
Dimensions & Weight / Width	16.3 cm
Header / Brand	Cyberpower
Miscellaneous / Product Color	White
Networking / Remote Management Interface	Serial USB
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Output Connector Qty	4
Power Device / Power Capacity (VA)	550 VA
Power Device / UPS Technology	Line interactive
Power Device / Voltage Required	AC 120 V
Product Type	UPS
Service & Support / Type	3-year warranty
Battery
Capacity	7 Ah
Features	Sealed
Quantity	2
Recharge Time	8 hours
Run Time (Up To)	52.2 min at 112 Watts 25 min at half load 24.5 min at 225 Watt 8 min at full load
Technology	Lead acid
Transfer Time	10 ms
Voltage Provided	12 V
Dimensions & Weight
Depth	34.8 cm
Height	13.7 cm
Weight	13.7 kg
Width	16.3 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x USB - 4 pin USB Type B 1 x serial - 9 pin D-Sub (DB-9)
General
Device Type	UPS - external
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Miscellaneous
Cables Included	Power cable 1.83 m
Compliant Standards	CSA, UL 1778, UL 60601-1, RoHS, FCC Part 15 A, EMI
Equipment Protection Value	400000 US Dollars
Features	Audible alarm, LED display, Automatic Voltage Regulation (AVR), overload protection, Enhanced Battery Management (EBM)
Networking
Remote Management Interface	USB, serial
Power Device
Circuit Protection	Circuit breaker
Frequency Required	60 Hz ± 3Hz
Input Connectors	Power NEMA 5-15P (hospital grade)
Input Voltage	AC 120 V
Input Voltage Range	AC 90 - 150 V
Input Voltage Range (Adjustable)	AC 88 - 150 V
Output Voltage	AC 120 V ± 5%
Output Waveform	Sinewave
Power Capacity	440 Watt / 550 VA
Power Factor (PF)	0.8
Power Output Connectors Details	4 x power NEMA 5-15R (hospital grade)
Surge Energy Rating	1445 Joules
Surge Suppression	Yes
UPS Technology	Line interactive
