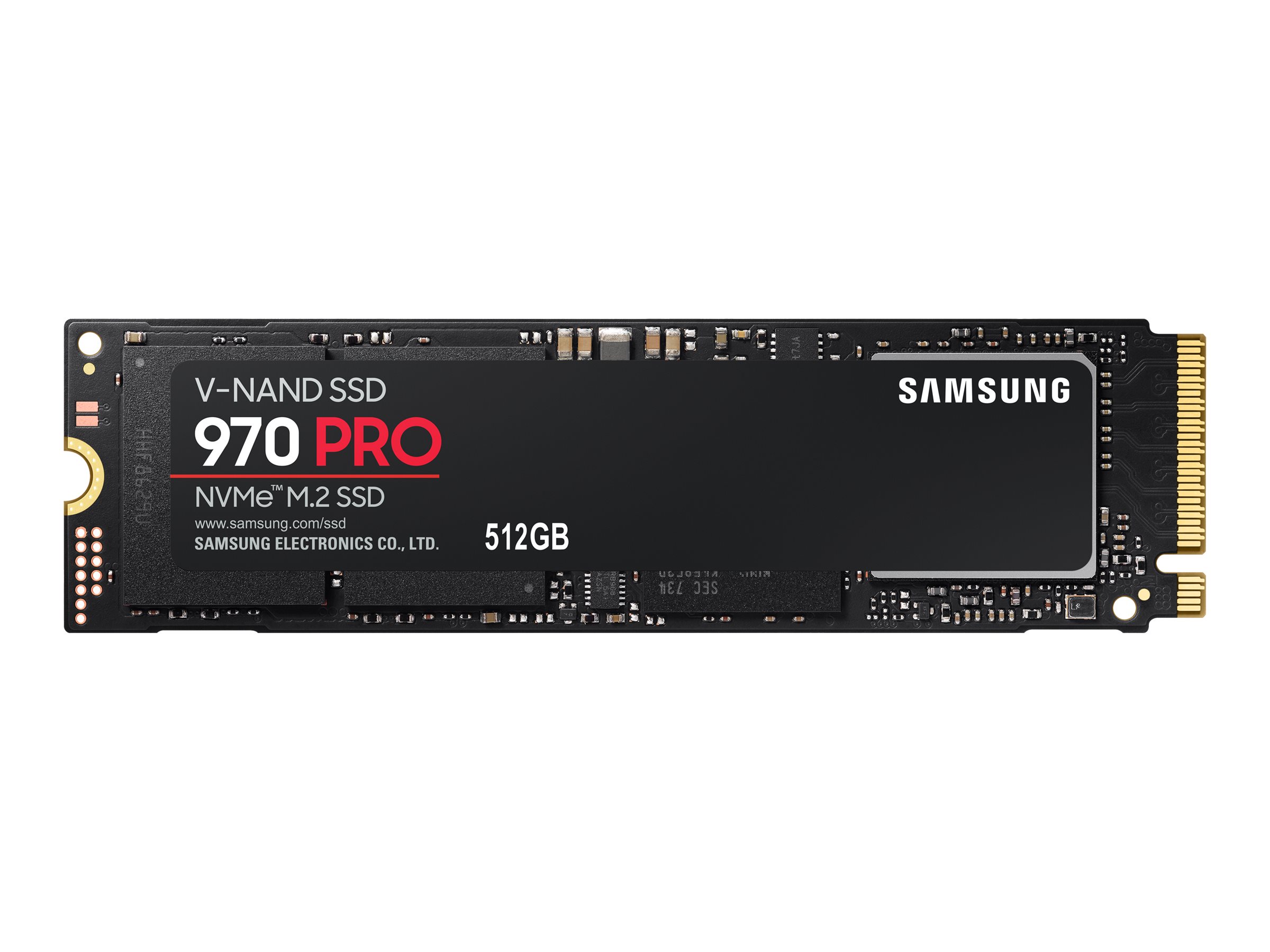

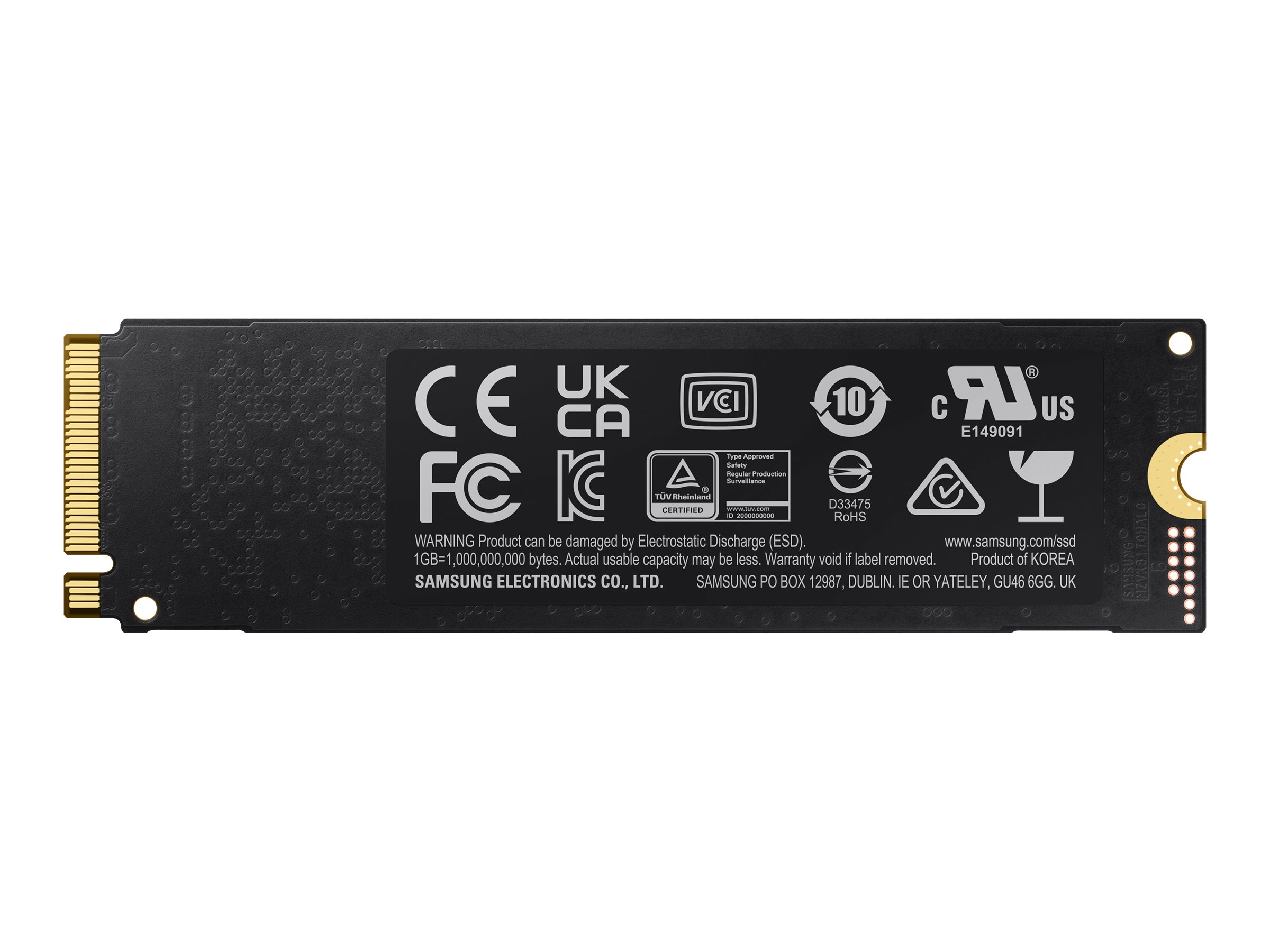

Samsung 970 PRO MZ-V7P512BW
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Samsung 970 PRO MZ-V7P512BW
- SSD
- encrypted
- 512 GB
- internal
- M.2 2280
- PCIe 3.0 x4 (NVMe)
- 256-bit AES
- TCG Opal Encryption 2.0
| Additional Details | |
|---|---|
| Mfr Part #: | MZ-V7P512BW |
| SHI Part #: | 35245052 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung 970 PRO MZ-V7P512BW - SSD - encrypted - 512 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) - 256-bit AES - TCG Opal Encryption 2.0 |
| Manufacturer | Samsung |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80.15 mm |
| Dimensions & Weight / Height | 2.38 mm |
| Dimensions & Weight / Weight | 7.93 g |
| Dimensions & Weight / Width | 22.15 mm |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | PCI Express 3.0 x4 (NVMe) - M.2 Card |
| General | |
| Capacity | 512 GB |
| Depth | 80.15 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | Microsoft eDrive compatible, Auto Garbage Collection Algorithm, V-NAND Technology, Temperature Monitoring, NVM Express (NVMe) 1.3, Samsung Phoenix Controller |
| Form Factor | M.2 2280 |
| Hardware Encryption | Yes |
| Height | 2.38 mm |
| Interface | PCIe 3.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D multi-level cell (MLC) |
| Weight | 7.93 g |
| Width | 22.15 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IEEE 1667 |
| Performance | |
| Internal Data Rate | 3500 MBps (read) / 2300 MBps (write) |
| Maximum 4KB Random Read | 370000 IOPS |
| Maximum 4KB Random Write | 500000 IOPS |
| SSD Endurance | 600 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
