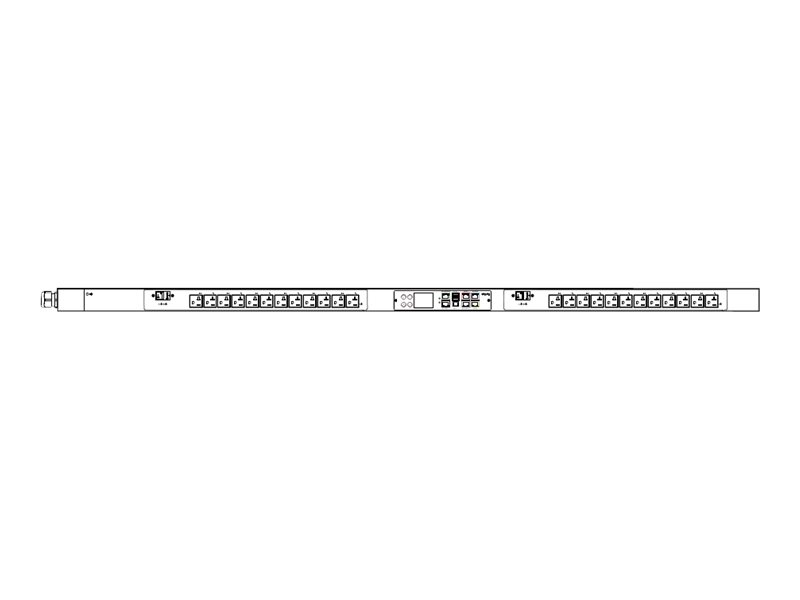

Raritan PX3-1478V - Power distribution unit (rack-mountable)

$906.00
Raritan PX3-1478V - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AC 120 V
  • 2900 VA
  • 1-phase 3 Wire
  • Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
  • input: NEMA L5-30P
Raritan PX3-1478V - Power distribution unit (rack-mountable)
  • AC 120 V
  • 2900 VA
  • 1-phase 3 Wire
  • Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
  • input: NEMA L5-30P
  • output connectors: 24 (24 x NEMA 5-20R)
  • 0U
  • 3 m cord
  • black powder coat
  Additional Details
Price: $906.00
Mfr Part #: PX3-1478V
SHI Part #: 35504400
Category: Rack systems for rack mount electroni...
UNSPSC: 24102001
Manufacturer: Legrand
Product Type: Hardware
General Information
CategoryRack systems for rack mount electroni...
DescriptionRaritan PX3-1478V - Power distribution unit (rack-mountable) - AC 120 V - 2900 VA - 1-phase 3 Wire - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: NEMA L5-30P - output connectors: 24 (24 x NEMA 5-20R) - 0U - 3 m cord - black powder coat
ManufacturerLegrand
MSRP$904.00
UNSPSC24102001
Main Specifications
Dimensions & Weight / Depth5.5 cm
Dimensions & Weight / Height153.9 cm
Dimensions & Weight / Weight5.8 kg
Dimensions & Weight / Width5.2 cm
General / SubcategoryPower distribution devices
Header / BrandRaritan
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100
  • Ethernet 10/100/1000
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty24
Power Device / Power Capacity (VA)2900 VA
Power Device / Voltage RequiredAC 120 V
Product TypePower distribution unit
Service & Support / Type2-year warranty
Dimensions & Weight
Depth5.5 cm
Height153.9 cm
Weight5.8 kg
Width5.2 cm
Dimensions & Weight (Shipping)
Shipping Depth11.5 cm
Shipping Height181.5 cm
Shipping Weight7.2 kg
Shipping Width28 cm
Environmental Parameters
Humidity Range Operating85%
Max Operating Temperature60 °C
Expansion / Connectivity
Interfaces
  • 1 x sensor - RJ-45
  • 1 x modem - RJ-45
  • 2 x monitoring - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
  • 2 x USB - 4 pin USB Type A
  • 1 x management (Fast Ethernet) - RJ-45
  • 1 x management (Gigabit Ethernet) - RJ-45
General
ColorBlack powder coat
Cord Length3 m
Device TypePower distribution unit - rack-mountable
Height (Rack Units)0U
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables IncludedPower cable - integrated - 3 m
Compliant StandardsUL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21, ISO 62053-21
FeaturesVertical orientation, tool-less button mount, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, splash-proof plug, metering per input line, metering per branch circuit breaker, replaceable controller, monitored, bottom-bottom feed cord entry, cord retention, 2 x LEGBXA6-20 overload protection
Networking
Remote Management InterfaceEthernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management ProtocolSNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Power Device
Circuit ProtectionCircuit breaker
Frequency Required50/60 Hz
Input Connectors1 x power NEMA L5-30P
Input VoltageAC 120 V
Input Voltage RangeAC 100 - 120 V
Input Wiring1-phase 3 Wire
Max Electric Current30 A
Output VoltageAC 120 V
Power Capacity2900 VA
Power Capacity Details2.4 kVA at 100 V, 2.9 kVA at 120 V
Power Output Connectors Details24 x power NEMA 5-20R - 120 V 16 A
