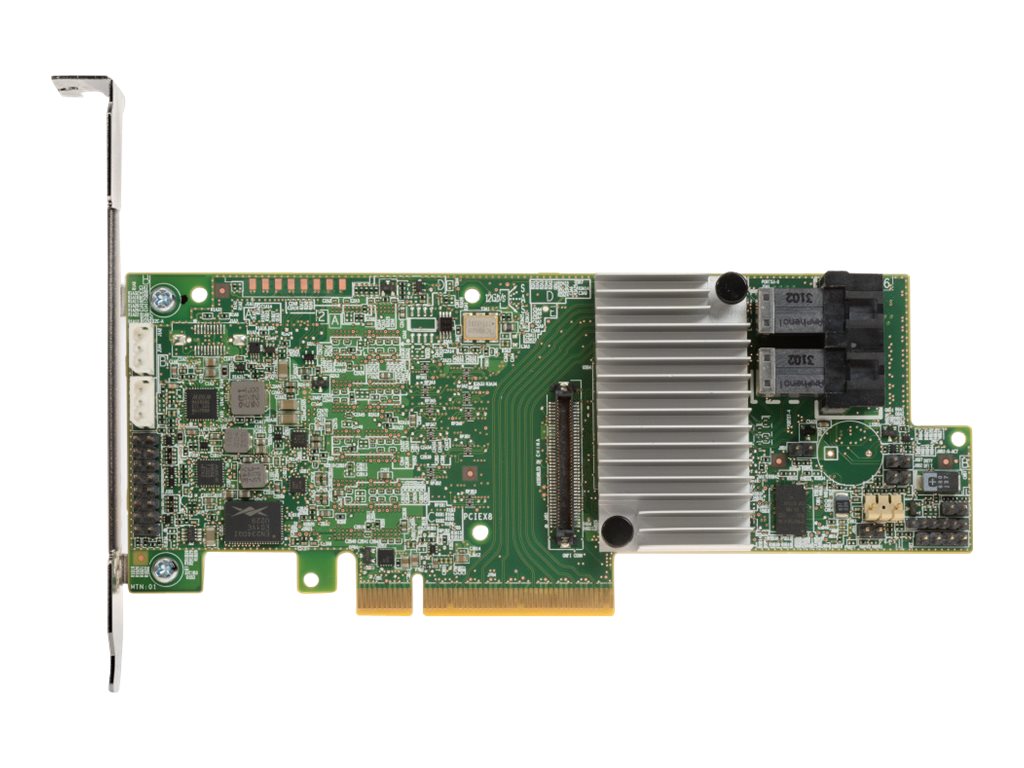

Lenovo ThinkSystem 730-8i
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Lenovo ThinkSystem 730-8i
- Storage controller (RAID)
- 8 Channel
- SATA / SAS 12Gb/s low profile
- 12 Gbit/s
- RAID 0, 1, 5, 10, 50, JBOD
- PCIe 3.0 x8
- for ThinkSystem SR670
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 4Y37A16226 |
| SHI Part #: | 37064447 |
| Category: | Peripheral controller cards |
| UNSPSC: | 43201407 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Peripheral controller cards |
| Description | Lenovo ThinkSystem 730-8i - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb/s low profile - 12 Gbit/s - RAID 0, 1, 5, 10, 50, JBOD - PCIe 3.0 x8 - for ThinkSystem SR670 |
| Manufacturer | Lenovo |
| MSRP | $999.00 |
| UNSPSC | 43201407 |
| Main Specifications | |
| General / Product Type | Storage controller (RAID) |
| Header / Brand | Lenovo |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage Controller / Form Factor | Plug-in card |
| System Requirements / OS Required |
|
| Compatibility Information | |
| Designed For | Lenovo ThinkSystem SR670 |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
| General | |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Host Bus | PCIe 3.0 x8 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950, FCC CFR47 Part 15 C Class A |
| Features | Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), Disk Data Format (DDF) support, S.M.A.R.T. support |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, SuSE Linux Enterprise Server 12 SP3, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, Red Hat Enterprise Linux 7.4, VMware vSphere 6.0 (ESXi) Update 3, SuSE Linux Enterprise Server 11 SP4 with Xen, SuSE Linux Enterprise Server 12 SP2 with Xen, SuSE Linux Enterprise Server 12 SP3 with Xen, Red Hat Enterprise Linux 7.5, VMware vSphere 6.5 (ESXi) Update 2, VMware vSphere 6.7 (ESXi), Microsoft Windows Server 2019, Red Hat Enterprise Linux 6.10, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 with Xen, VMware vSphere 6.5 (ESXi) Update 1, VMware vSphere 6.7 (ESXi) Update 1 |
| Storage Controller | |
| Buffer Size | 1 GB |
| Channel Qty | 8 |
| Data Transfer Rate | 12 Gbit/s |
| Interface | SATA / SAS 12Gb/s |
| Max Storage Devices Qty | 8 |
| Processor | LSI LSISAS3108 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, JBOD |
| Supported Devices | Hard drive, disk array (RAID), solid state drive |
