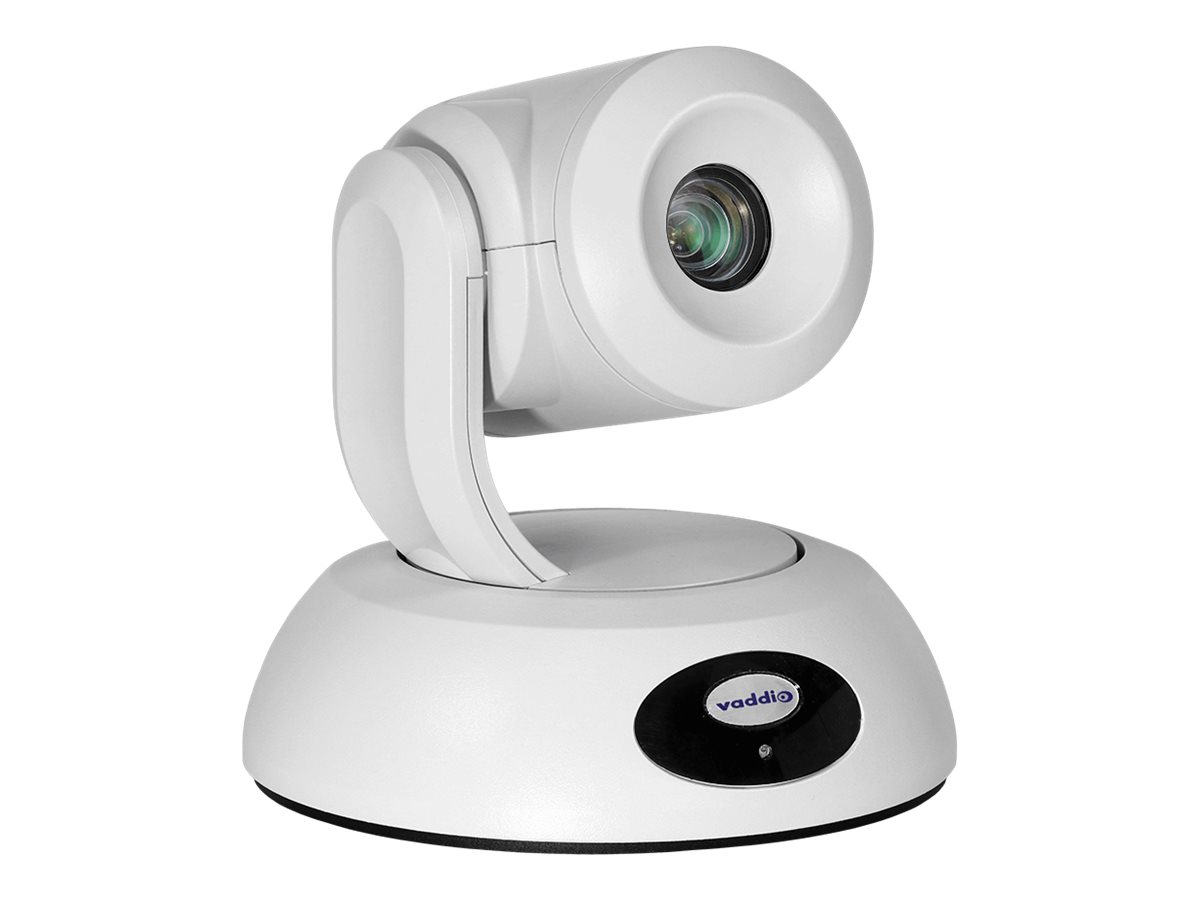

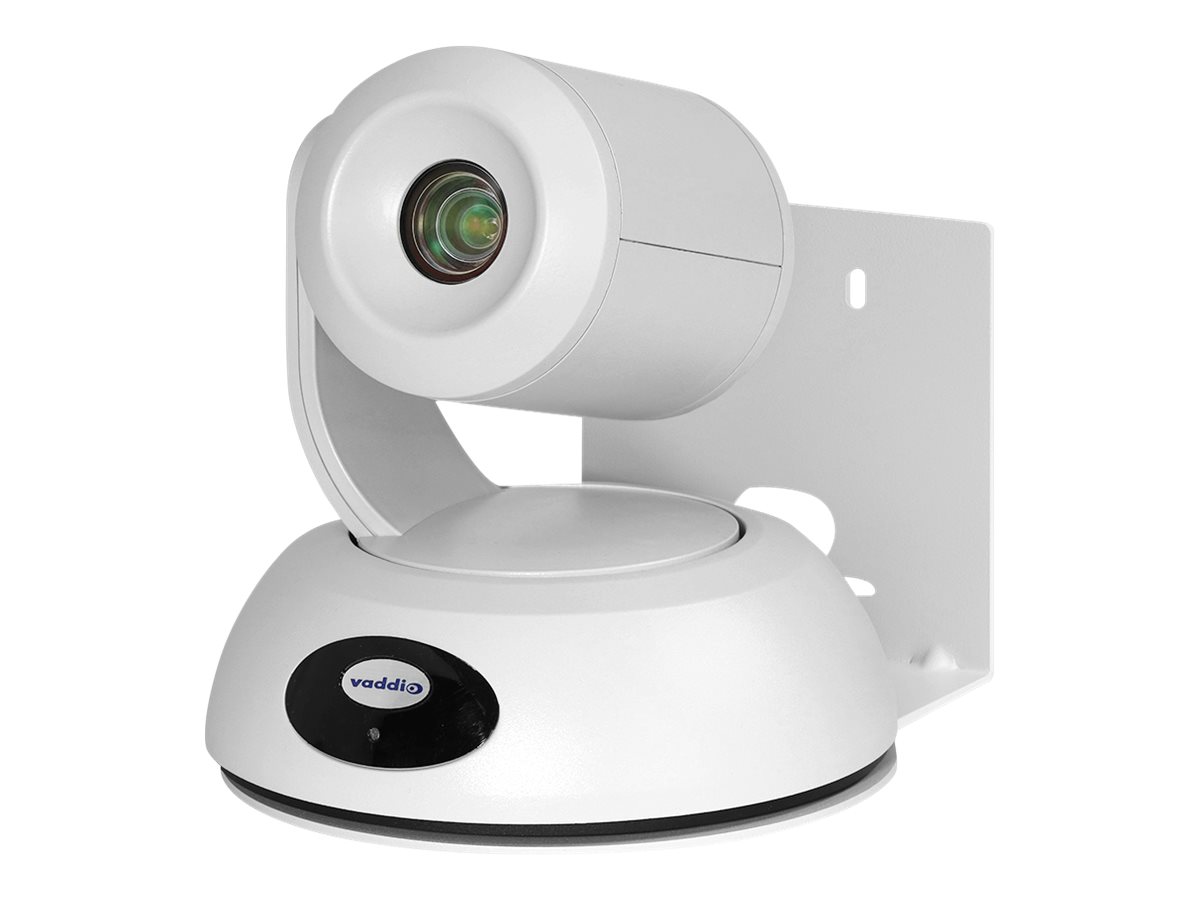

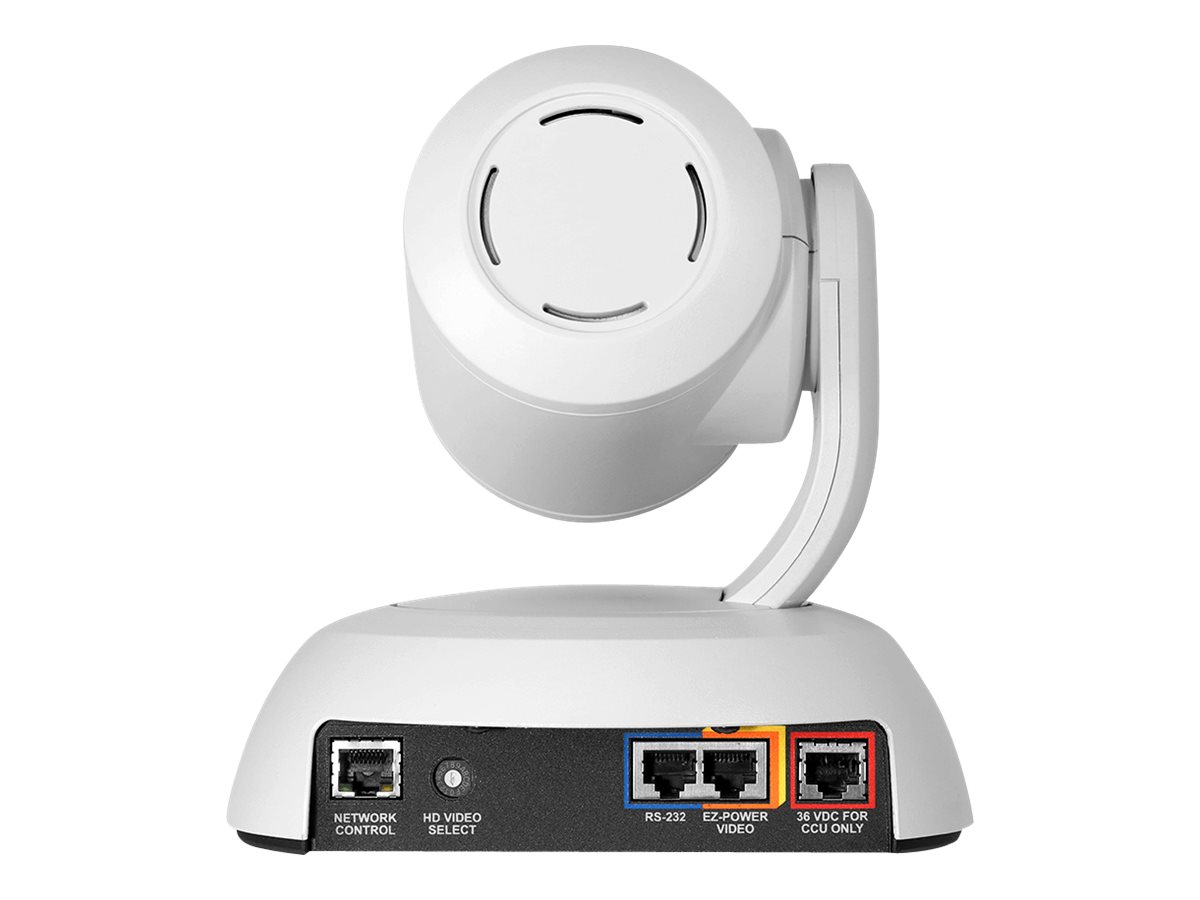

Vaddio RoboSHOT Elite Series 12E QCCU System
MSRP$7,566.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vaddio RoboSHOT Elite Series 12E QCCU System
- Conference camera
- PTZ
- color
- motorized
- component, HDMI, HD-SDI
- H.264
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $7,566.00 |
| Mfr Part #: | 999-99070-000W |
| SHI Part #: | 37164990 |
| Category: | Video conference cameras |
| UNSPSC: | 45121506 |
| Manufacturer: | Vaddio |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Video conference cameras |
| Description | Vaddio RoboSHOT Elite Series 12E QCCU System - Conference camera - PTZ - color - motorized - component, HDMI, HD-SDI - H.264 |
| Manufacturer | Vaddio |
| MSRP | $7,566.00 |
| UNSPSC | 45121506 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.2 cm |
| Dimensions & Weight / Height | 17.6 cm |
| Dimensions & Weight / Weight | 2.2 kg |
| Dimensions & Weight / Width | 17.9 cm |
| Header / Brand | Vaddio |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | H.264 |
| Features | Manual white balance, Backlight Compensation (BLC), brightness control, Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, Enhanced Wide Dynamic Range |
| Frame Rate (max) | 60 frames per second |
| Type | Color - pan / tilt / zoom |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 720/30p, 720/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 17.2 cm |
| Device Type | Conference camera |
| Height | 17.6 cm |
| Localization | North America |
| Weight | 2.2 kg |
| Width | 17.9 cm |
| Image Sensor | |
| Type | Exmor R CMOS 1/2.5" |
| Interfaces | |
| Control Interface | RS-232 |
| Network Protocols | RTSP |
| Video | Component video, HDMI, HD-SDI |
| Lens Construction | |
| Focal Length | 4.4 mm - 88.4 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 6.8 - 70.2 |
| Lens Iris | F/2.0-3.8 |
| Min Focus Distance | 8 cm |
| Optical Zoom | 12 x |
| Type | Motorized zoom |
| Miscellaneous | |
| Color | White |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, FCC Part 15 A, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, ICES-003:2012 Class A, EN 61000-4-8:2010, EMC 2014/30/EU, EN 55032:2015, EN 61000-4-4:2004, IEC60950-1:2005, Second edition + A1:2009 + A2:2013, FCC Subpart B 15.107, FCC Subpart B 15.109, EN 55024:2010 Class A, EN 61000-4-3:2006+A1:2008, KN24:2008, CISPR 24:1997+A1:2000+A2:2002, EN 61000-4-2:1995+A1:1998+A2:2001, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |

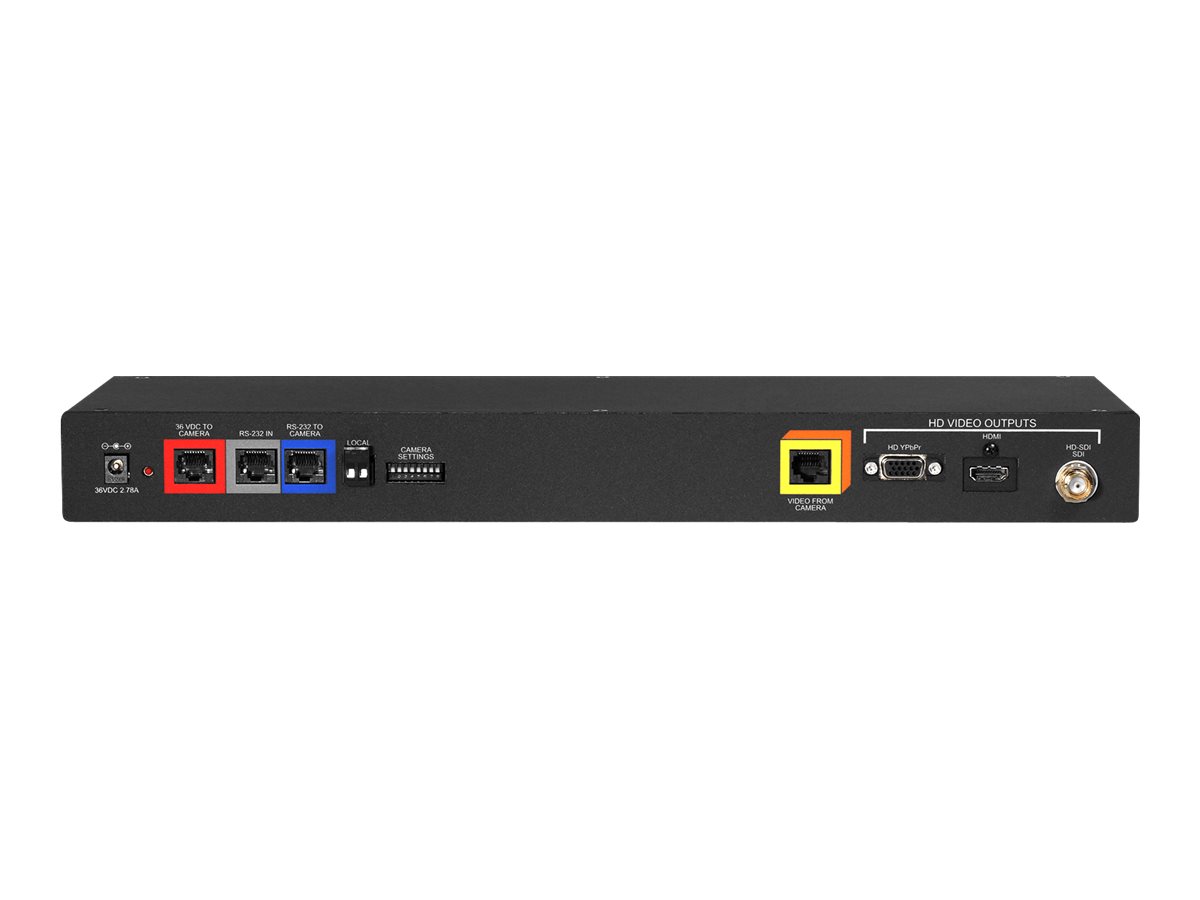

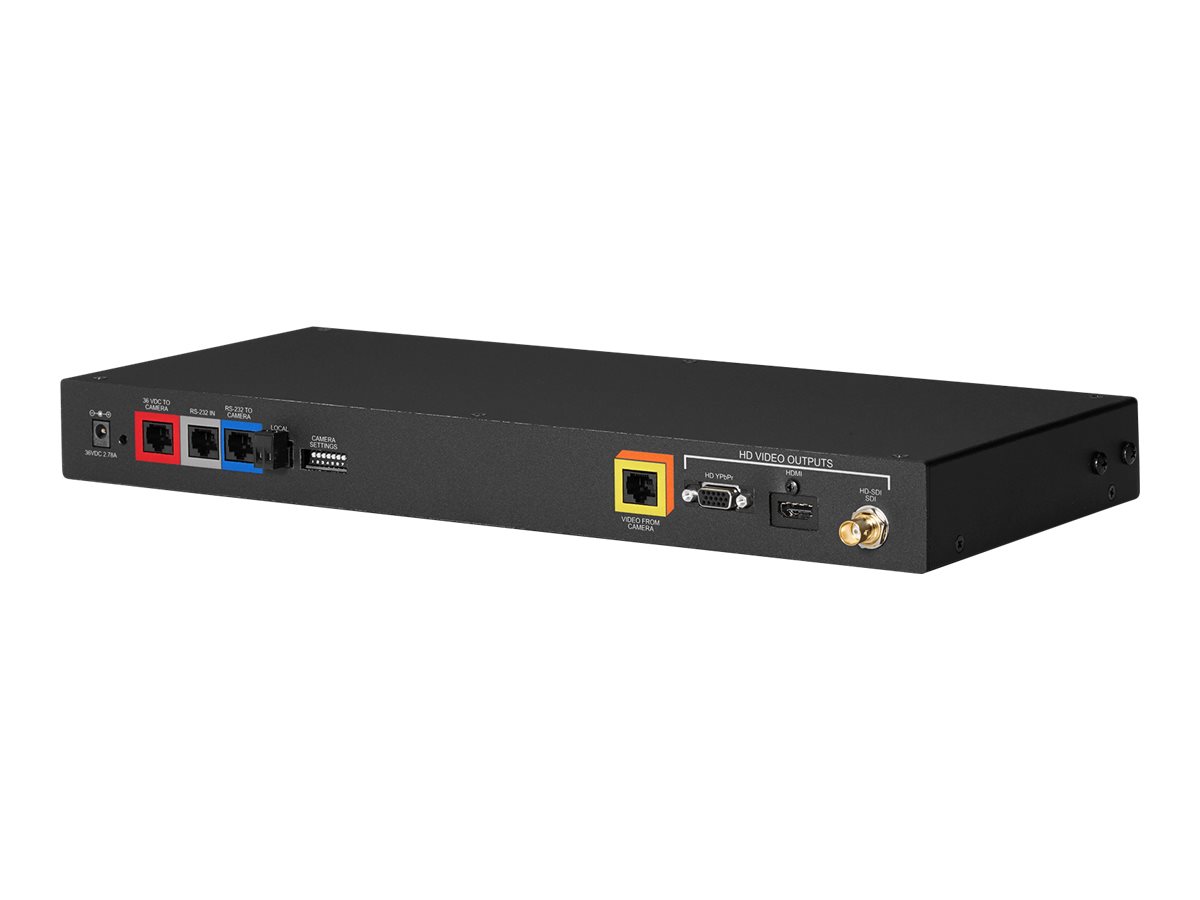

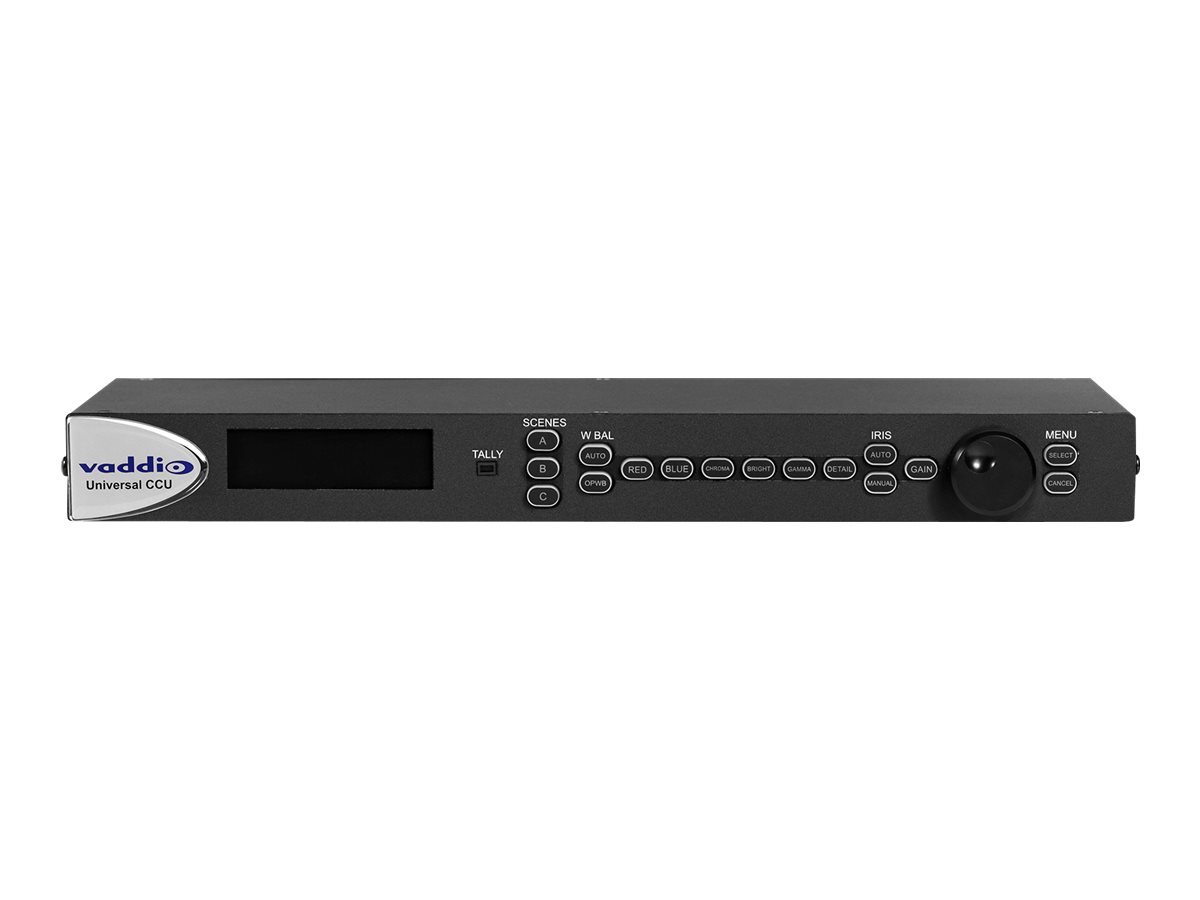

| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, Vaddio Quick-Connect Universal CCU Cat-5 Interface, 2 rack ears |
| Panning | |
| Range (degree) | -150 to +150 |
| Speed (degree/sec) | Up to 120 |
| Power | |
| Power Device | Power adapter - external |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
