Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

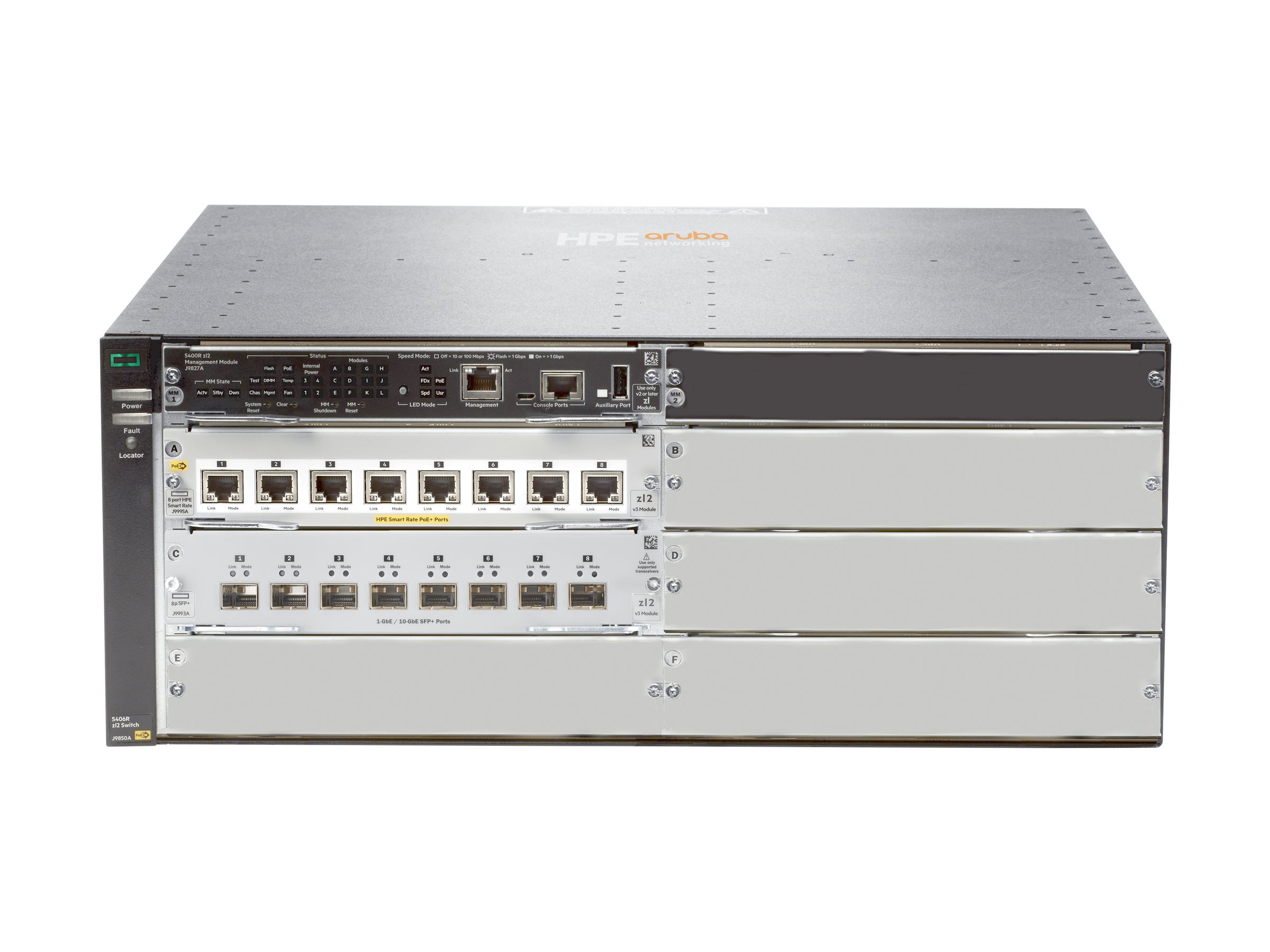

HPE Aruba 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8-port SFP+ (No PSU) v3 zl2

MSRP$16,915.00
$12,770.00
HPE Aruba 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8-port SFP+ (No PSU) v3 zl2
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed
  • 8 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1/2.5/5/10GBase-T (PoE+)
  • rack-mountable
  • PoE+
HPE Aruba 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8-port SFP+ (No PSU) v3 zl2
  • Switch
  • managed
  • 8 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1/2.5/5/10GBase-T (PoE+)
  • rack-mountable
  • PoE+
  Additional Details
Price: $12,770.00
MSRP: $16,915.00
Mfr Part #: JL002A#B8X
SHI Part #: 37174942
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
Product Line: HPE - Networking
General Information
CategoryNetwork switches
DescriptionHPE Aruba 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8-port SFP+ (No PSU) v3 zl2 - Switch - managed - 8 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1/2.5/5/10GBase-T (PoE+) - rack-mountable - PoE+
ManufacturerHewlett Packard Enterprise
MSRP$16,915.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth45.09 cm
Dimensions & Weight / Height17.53 cm
Dimensions & Weight / Width44.45 cm
Header / BrandAruba
Miscellaneous / Product Color
  • Black
  • Gray
Networking / Form FactorRack-mountable
Networking / Ports Qty16
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth45.09 cm
Height17.53 cm
Width44.45 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Expansion Slots
  • 6 (total) / 4 (free) x expansion slot
  • 1 (total) / 0 (free) x SD Memory Card
Installed Modules Qty (Max)2 (installed) / 6 (max)
Interfaces
  • 8 x Gigabit / 10Gbit LAN SFP+
  • 8 x 1/2.5/5/10GBase-T (PoE+)
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity
  • IPv4 routing table entries: 10000
  • IPv6 routing table entries: 5000
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Device TypeSwitch - 16 ports - managed
Enclosure TypeRack-mountable 4U
Encryption AlgorithmSSL
FeaturesFlow control, routing, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, STP support, RSTP support, MSTP support, tunneling, ACL support, QoS, MLD snooping, NSR, bandwidth control, STP Root Guard, UDLD, Rapid PVST+, IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, MIB, dynamic ARP protection, DHCP protection, dual firmware images, CoS, sFlow v5, GVRP, ToS, MACsec support
Flash Memory1 GB
Jumbo Frame SupportYes
MAC Address Table Size64K entries
Performance
  • Routing/switching capacity: 960 Gbps
  • Throughput: up to 571.4 Mpps
  • Switching fabric bandwidth: 1015 Gbps
Ports8 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1/2.5/5/10GBase-T (PoE+)
Power Over Ethernet (PoE)PoE+
Processor1 x Freescale P2020: 1.2 GHz
RAM4 GB DDR3 SDRAM
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, CLI, XRMON
Routing ProtocolRIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD
Subtype10 Gigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - advance hardware replacement - lifetime - response time: next business day
  • Technical support - phone consulting - 3 years
Miscellaneous
Compliant StandardsFCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CSA 22.2 No. 60950
Included AccessoriesFan tray
Rack Mounting KitIncluded
Power
Max Supported Qty2
Power DeviceInternal power supply (not installed)
