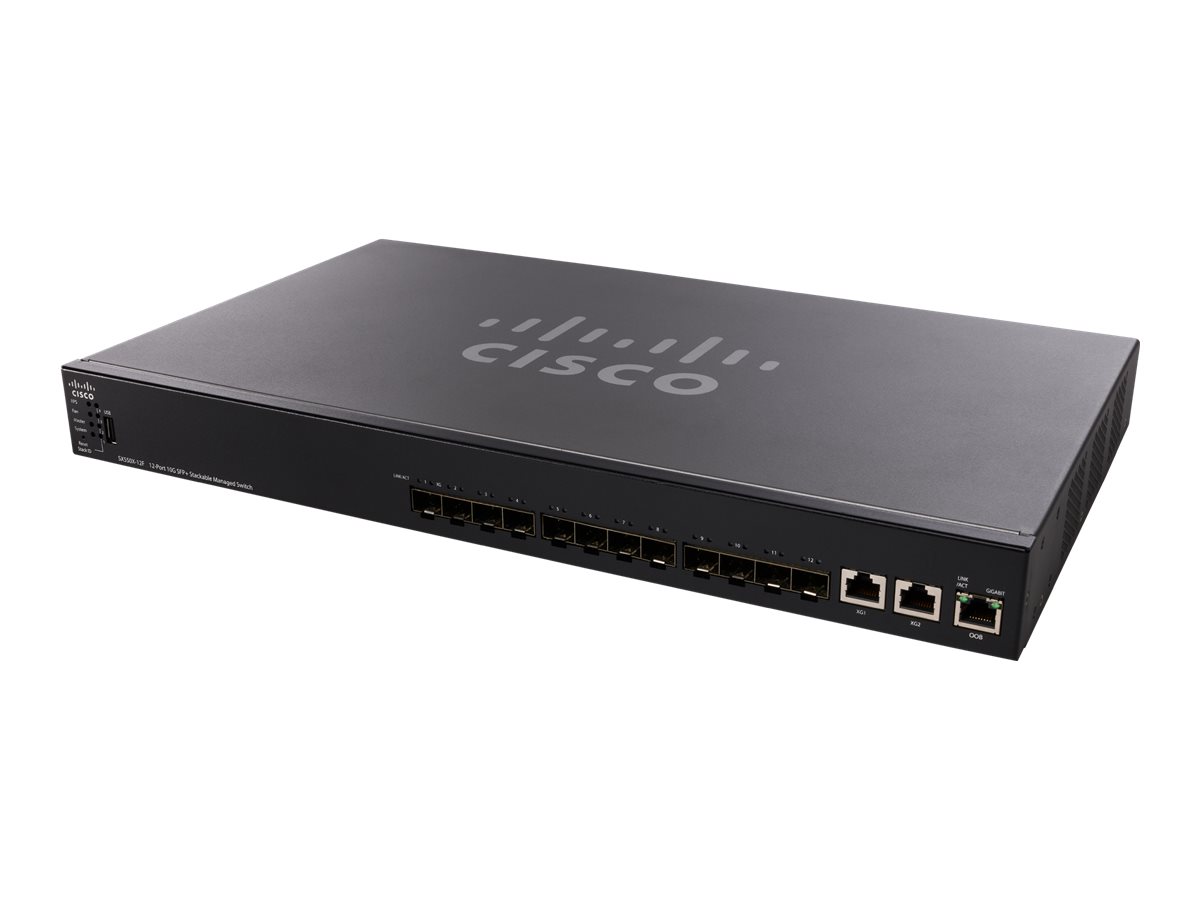

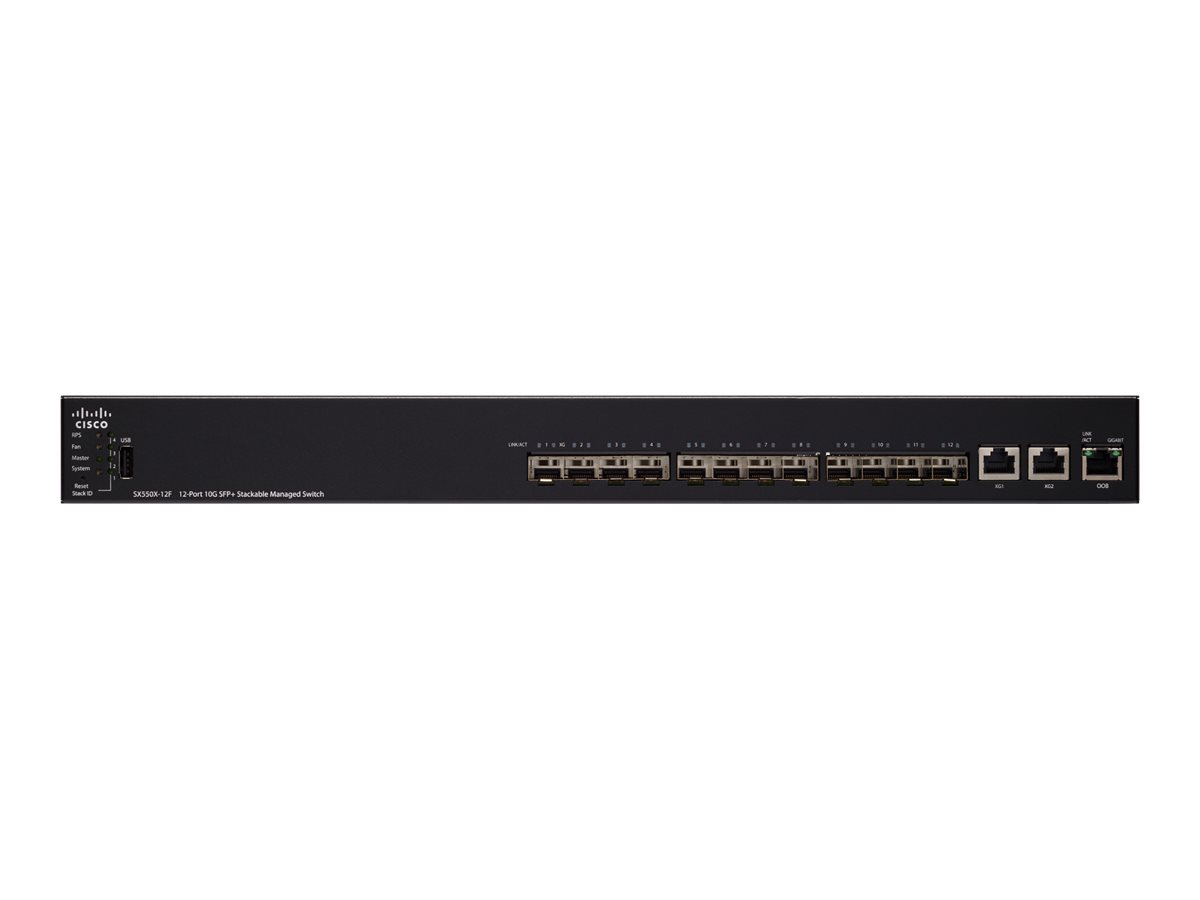

Cisco 550X Series SX550X-12F
MSRP$3,768.03
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Cisco 550X Series SX550X-12F
- Switch
- L3
- managed
- 12 x 10 Gigabit SFP+ + 2 x combo 10 Gigabit SFP+
- desktop, rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,768.03 |
| Mfr Part #: | SX550X-12F-K9-NA |
| SHI Part #: | 37209248 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Cisco 550X Series SX550X-12F - Switch - L3 - managed - 12 x 10 Gigabit SFP+ + 2 x combo 10 Gigabit SFP+ - desktop, rack-mountable |
| Manufacturer | Cisco Systems |
| MSRP | $3,768.03 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.4 cm |
| Dimensions & Weight / Height | 25.7 cm |
| Dimensions & Weight / Weight | 3.42 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Cisco |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Ports Qty | 12 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 4.4 cm |
| Height | 25.7 cm |
| Weight | 3.42 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Device Type | Switch - 12 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, Broadcast Storm Control, IPv6 support, High Availability, Multicast Storm Control, Unicast Storm Control, firmware upgradable, sFlow, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, DAI, reset button, STP Root Guard, UDLD, DHCP relay, RSPAN, DHCP client, MIB, dual firmware images, CoS, GARP, GVRP, Duplicated Address Detection, DSCP support, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, ICMP, Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, SCT, LLDP-MED, HOL blocking, IPMB, SSD, Private VLAN, ISATAP tunnel support, RA guard, Guest VLAN, STP BPDU Guard |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 32000 entries |
| Max Units In A Stack | 8 |
| Performance |
|
| Ports | 12 x 10 Gigabit SFP+ + 2 x combo 10 Gigabit SFP+ |
| Processor | X ARM: 1.3 GHz |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP |
| Routing Protocol | RIP-2, IGMPv2, IGMP, IGMPv3, policy-based routing (PBR), MLDv2, MLD, VRRPv2, VRRPv3, CIDR |
| Status Indicators | Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 1 x console cable |
| Compliant Standards | Plug and Play, UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6 |
| Localization | North America |
| MTBF | 652,253 hours |
| Rack Mounting Kit | Included |
| Power | |
| Features | Redundant Power System (RPS) connector |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
